HALO 100KLED floodlight with 100,000 lumens
24 panels, 360° all-round or 180° targeted, continuously dimmable via the wired remote. One position lights the entire incident scene.
100.000 lmMaximum light output
2.961,95 € netto
3.524,72 € inkl. 19 % MwSt. · zzgl. Versand
For fire departments, municipalities and authorities
A quote for your fire department
- Purchase on account, also via XRechnung
- Quote with line items and lead time in 24 h
- Tripod, case and bag added on request
Purchase on account · XRechnung · Reply within 24 h
- 100,000 lm from 24 panels, continuously dimmable from 10,000 lm

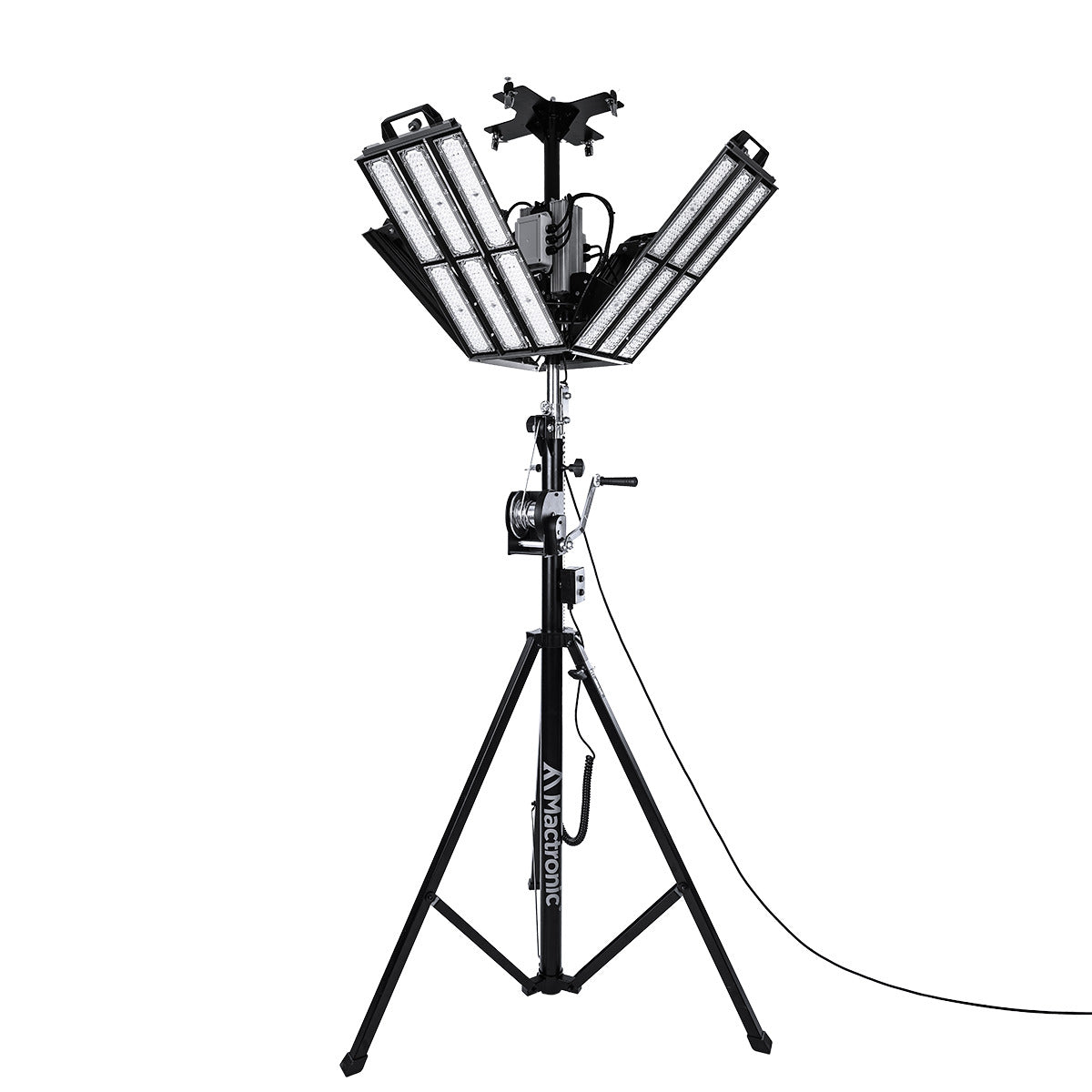

- 360° or 180° segments switchable in pairs, panels tilt up to 45°
- IP65 and IK08 dust-tight, protected against water jets and impact-resistant
- On mains power with no runtime limit 100 to 240 V, 660 W, surge protection up to 10 kV
Trusted by ProsMactronic since 1989 · 5-year manufacturer warranty · Made in Poland
- Purchase on account also via XRechnung
- Delivery by freight 5 to 10 working days
- Direct line Reply in 24 h
Manufacturer
Trusted by Pros since 1989
Mactronic develops and manufactures lighting in Poland for fire departments, emergency medical services, police, military and industry. The family business from Wrocław works to ISO 9001 and to NATO quality requirements.
MACTRONIC
„Trusted by Pros“
Founded in 1989 by Czesław Mocek in Wrocław, now run by his sons.
- ISO 9001:2015 Certified quality management at the manufacturer.
- AQAP 2110:2016 NATO quality requirements for development and production.
- NCAGE 1382H NATO supplier code, since 2013.
- Made in Poland Developed and made in Poland, patented design.
- 5-year warranty Manufacturer warranty on the HALO 100K.
- CE conformity Manufacturer's declaration of conformity on request.
Plus, from us
- Purchase on account for fire departments, municipalities and authorities, also via XRechnung.
- Quote with line items and lead time within 24 hours.
- Personal advice by phone, before you order.
- Delivery by freight in approx. 5 to 10 working days.
Manufacturer data: mactronic.pl (company and certificates) and data sheet PFL0242.
Stress test
Built for rain, impacts and long nights
Six manufacturer ratings and what they mean in the field.
-
IP65
Dust-tight and water-jet protected
The 6 stands for dust-tight, the 5 for protection against water jets from any direction. That covers rain and splashing water at the incident scene.
-
IK08
Withstands 5 joules
The housing withstands an impact of 5 joules. That equals a 1.7 kg weight dropped from a height of 30 cm.
-
−15 to +40 °C
Operational in winter and in summer
The operating temperature range according to the manufacturer. The LED lifespan of 70,000 hours applies at 25 °C.
-
10 kV
Surge protection
Protects the electronics against voltage spikes up to 10 kV in common mode and 6 kV in differential mode, for example when running on a generator.
-
70,000 h
LED lifespan
At twelve hours per night, that works out to almost 16 years of continuous operation.
-
3 materials
Polycarbonate, aluminum, steel
The housing combines three materials. It also features Mactronic's patented design.
Values: Mactronic, data sheet PFL0242. Code meanings per EN 60529 (IP code) and EN 62262 (IK code).
-
100.000lm
Maximum light output
dims smoothly from 10,000 lm
-
24panels
LED panels
dimmed via two dials on the cable
-
360°
All-round or 180° aimed
Segments switchable in pairs
-
up to45°
Panel tilt
in several steps, without moving the mast
Lighting
100,000 lumens, steered with two dials

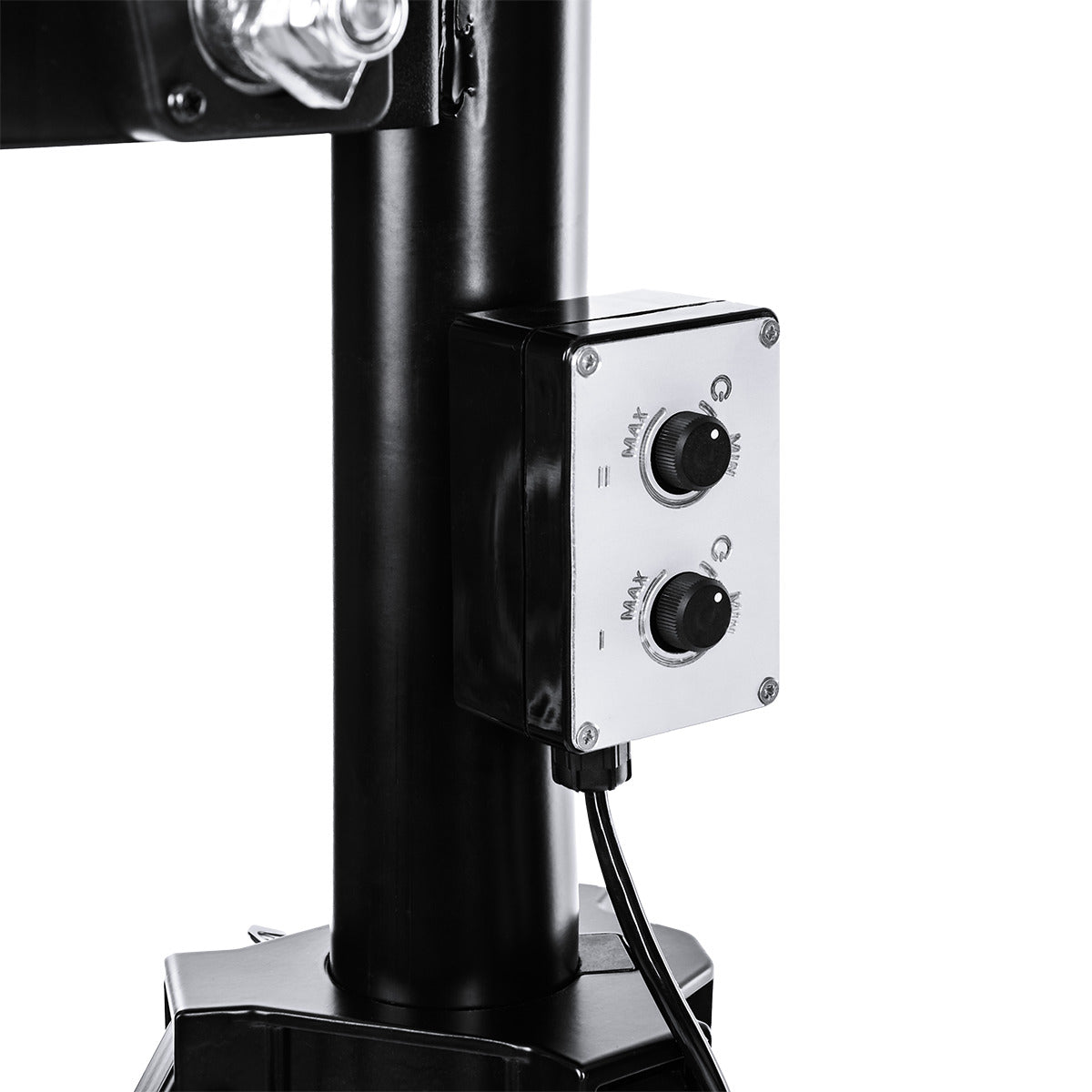

The wired remote has two dimmers and switches the segments in pairs. Turn the dials, switch to 180° and tilt the panels: that is how you control the light on scene, without going to the mast.
100.000 Lumen
360° rundum · 24 Panels · Neigung 0°
Kabelfernbedienung
Simulation based on manufacturer data (Mactronic PFL0242): 10,000 to 100,000 lm, two-channel dimming 10 to 100%, segments in pairs 180° or 360°, tilt up to 45°. Each channel calculated as half of 100,000 lm, area shown schematically.
- 5,000 K, CRI over 80 Neutral white light with good color rendering.
- Tilts up to 45° In several steps, also for excavations and embankments.
- 100 to 240 V AC On mains power, on a generator or on the vehicle's power feed.
Incidents

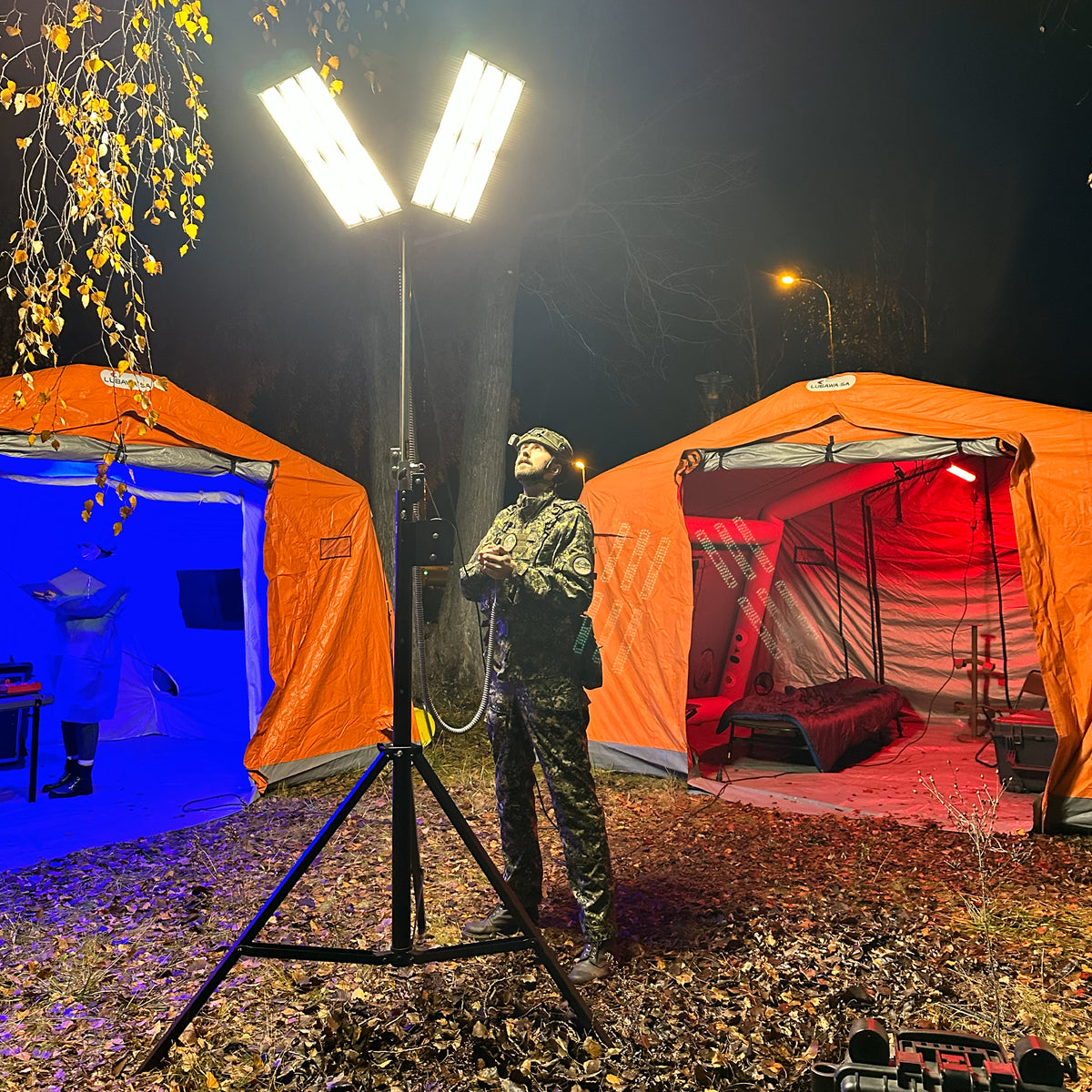

Area light for incident scene, tunnel and work site
Wherever large areas need to stay lit for a long time: on mains power or a generator, controlled via the wired remote.
-
100,000 lm at maximum
Road accident and technical rescue
One position lights the accident scene, the work area and the staging area. Switched to 180°, the light stays on the working side.
-
360° all-round
Major incident
Staging area, casualty collection point, equipment area: 24 panels spread the light evenly across the area.
-
up to 45° panel tilt
Tunnels and deep pits
The panels tilt in several steps. That way the light also reaches into pits and onto embankments.
-
660 W at 100 to 240 V
Construction & industry
Continuous operation on mains power with no battery swaps. The LEDs are rated for 70,000 hours.
Setup
Four steps to floodlight
This is how the HALO 100K goes into action: safety made simple.
-
Set up

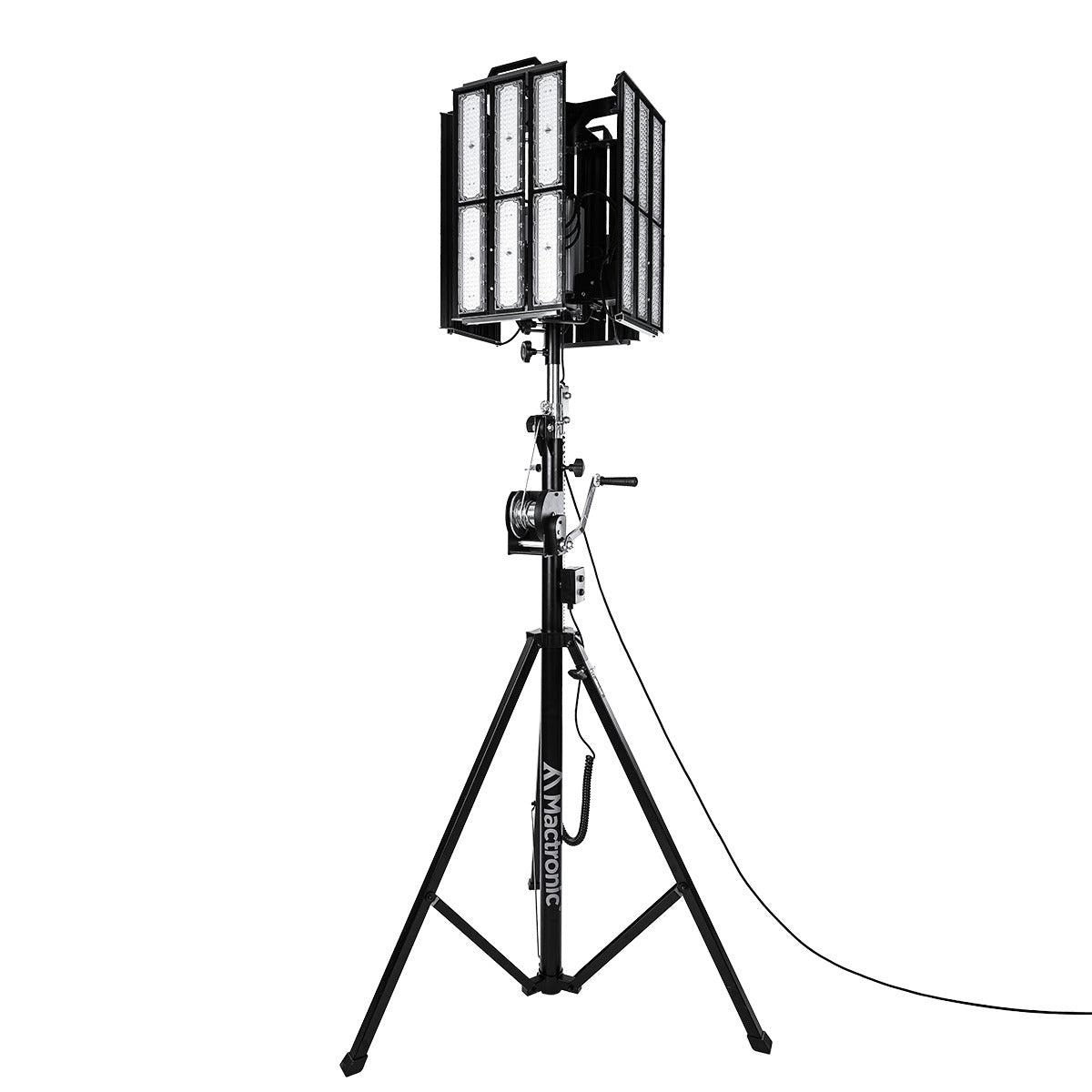

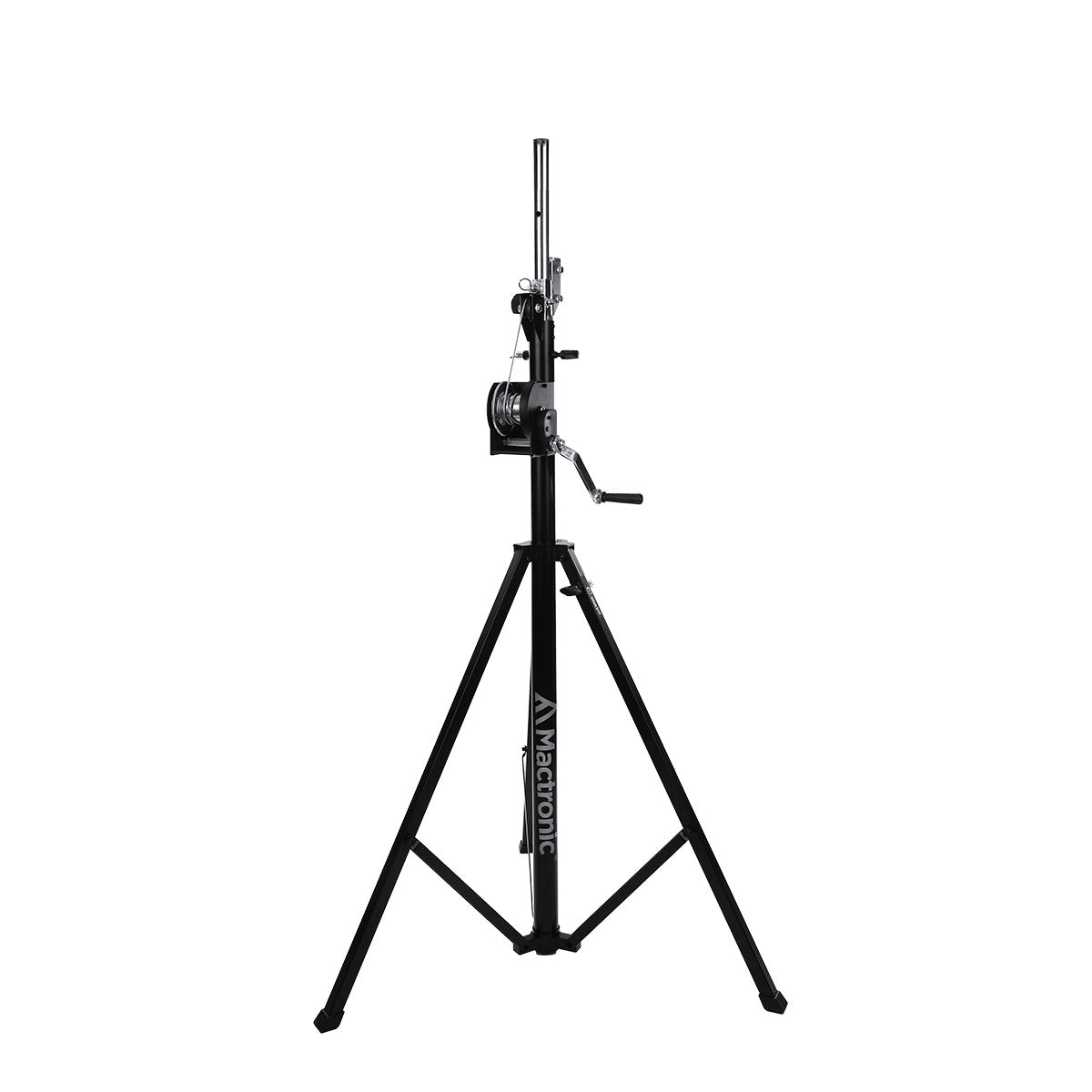

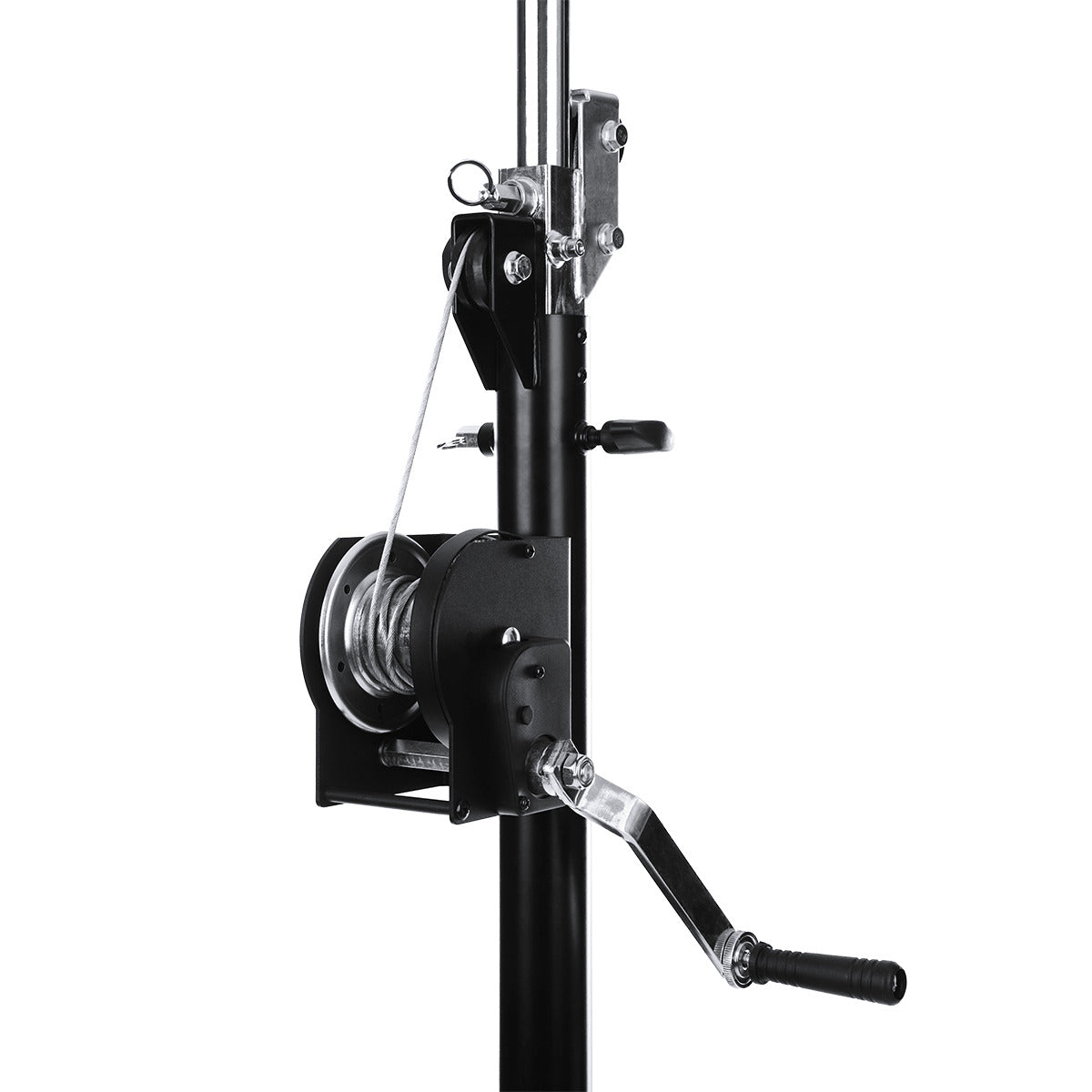

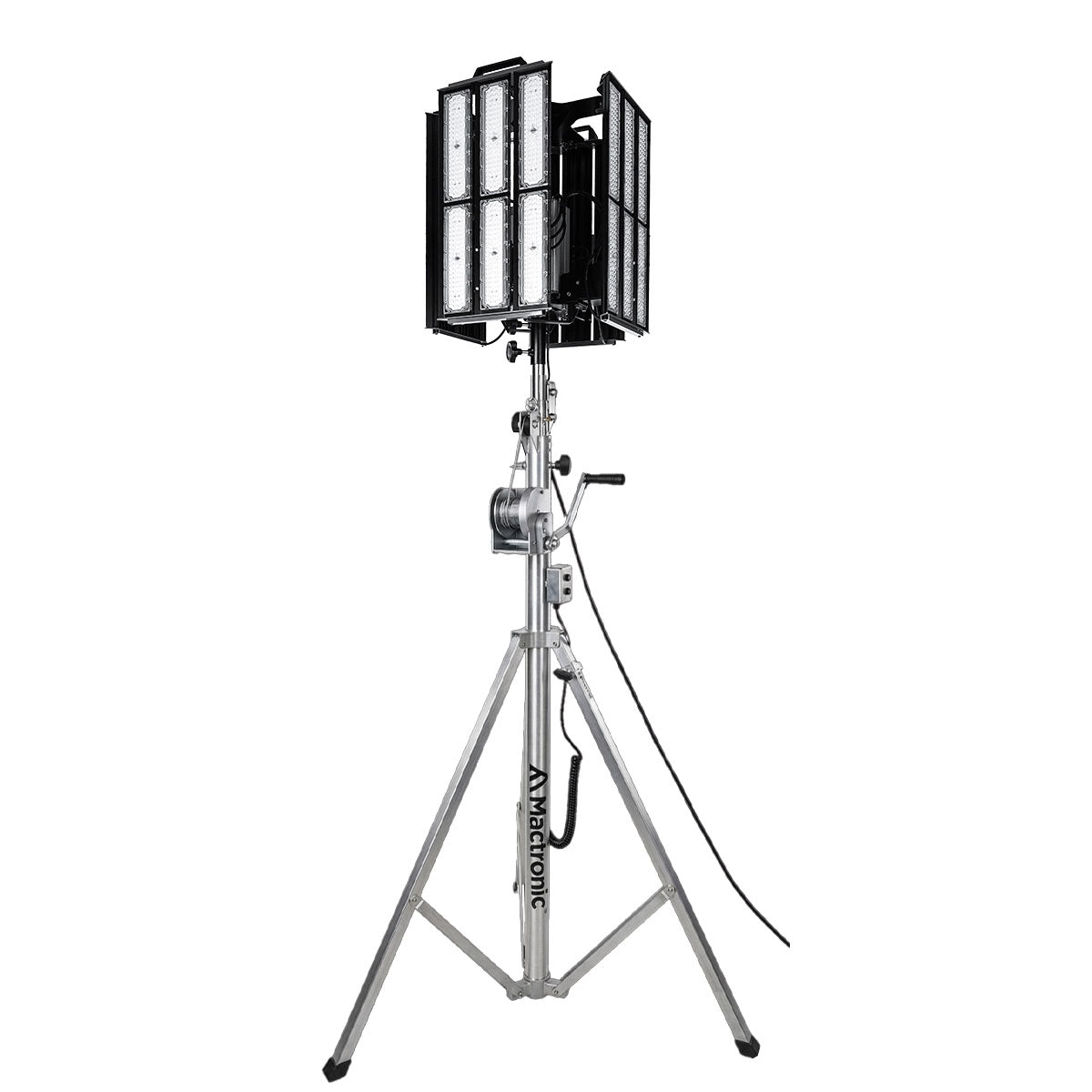

Place it on a mast 25 to 35 mm in diameter or hang it up. With the 4 m tripod T-TR-4M, you crank it up to height.
-
Connect
Plug in the power cable: socket, generator or the vehicle's power feed. 100 to 240 V AC is all it needs.
-
Aim

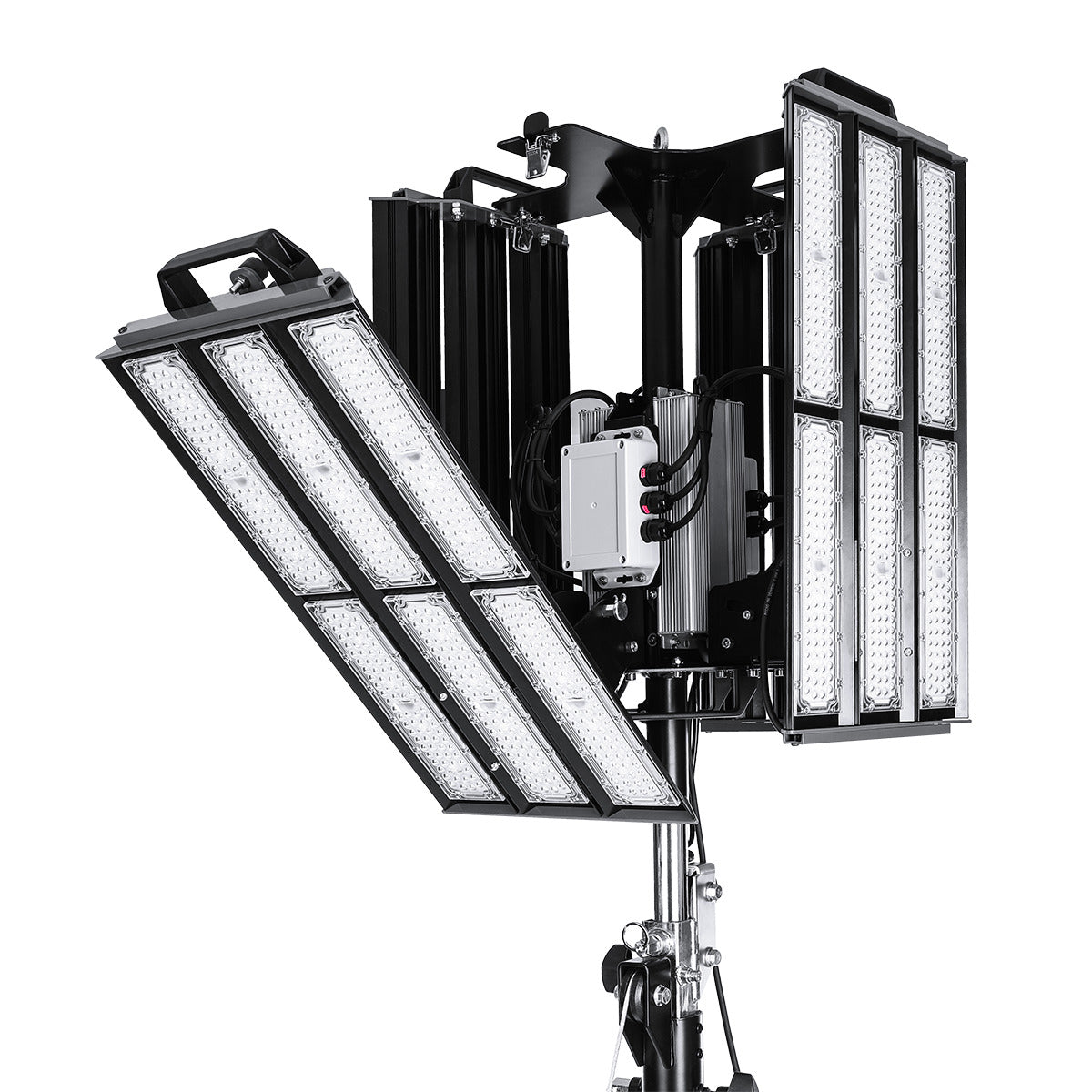

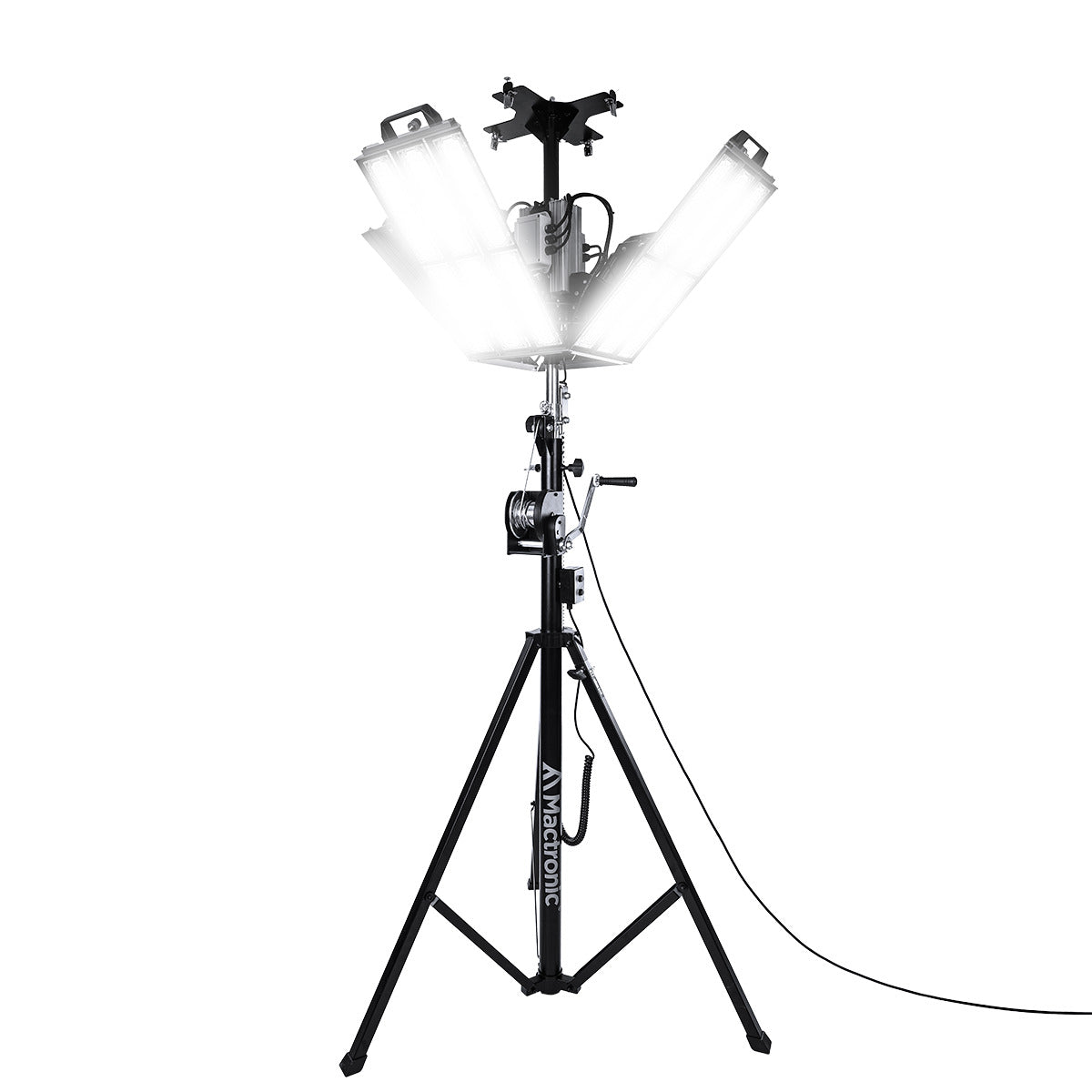

Tilt the panels in several steps up to 45°. The light falls where the work is done.
-
Adjust
On the wired remote, dim two channels from 10 to 100% and switch the segments in pairs to 180° or 360°.
Avoid glare: Dimmed and switched to 180°, the HALO 100K stays a calm work light. Residents and approaching crews are less dazzled.
In the box & accessories
Floodlight to mobile lighting system
As standard, the HALO 100K comes with a power cable and wired remote. Tick what else you need, and you get a quote for the whole set.
Im Lieferumfang · PFL0242

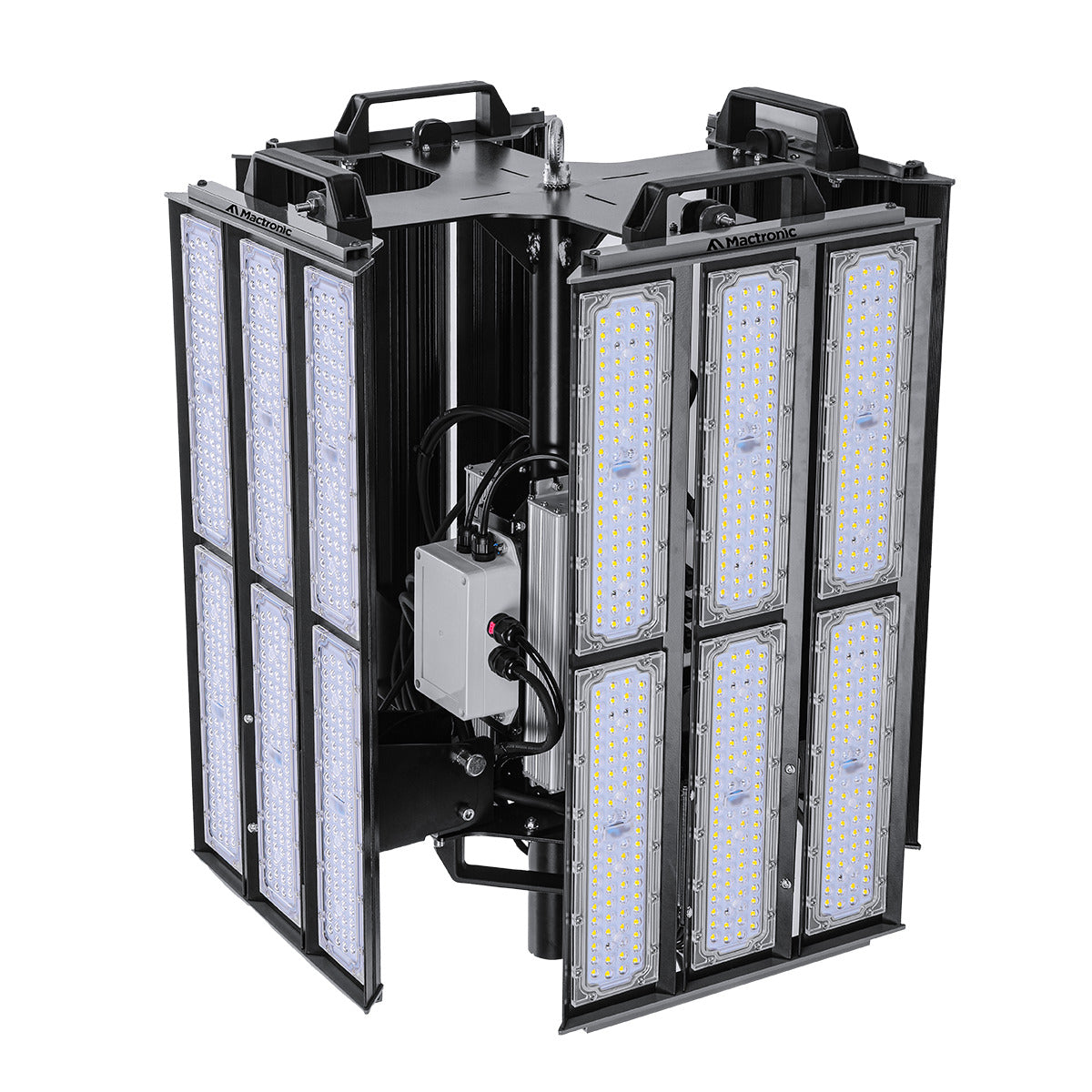

HALO 100K light head
24 panels, housing of polycarbonate, aluminum and steel.
enthalten
Im Lieferumfang
Power cable with wired remote
230 V, two dimmers, segment switching 180° or 360°.
enthalten
Your set: HALO 100K with power cable and wired remote.
Accessories on request, reply within 24 h
Mounting per manufacturer: on masts 25 to 35 mm in diameter or suspended.
Procurement
Floodlight for your fire department
Quote with line items and lead time, purchase on account and XRechnung. We reply within 24 hours.
Technical data
HALO 100K (PFL0242) data sheet
All values are manufacturer data from Mactronic. We are happy to email you the data sheet and the CE declaration of conformity.
Reply within 24 h
Light
- Light output
- 10,000 to 100,000 lm, continuously dimmable
- LED panels
- 24, segments in pairs 180° or 360°
- Dimming
- two-channel, 10 to 100%, wired remote
- Panel tilt
- multi-step, up to 45°
- Color temp.
- 5,000 K
- Color rendering
- CRI > 80
Power
- Supply
- 100 to 240 V AC
- Wattage
- 660 W
- Efficacy
- 151 lm/W (calculated)
- Surge protection
- CM 10 kV, DM 6 kV
Ruggedness
- IP rating
- IP65
- Impact rating
- IK08
- Operating temp.
- −15 °C to +40 °C
- LED lifespan
- 70,000 h at 25 °C
- Housing
- Polycarbonate, aluminum, steel
Size & mounting
- Dimensions
- 685 × 493.2 × 493.2 mm
- Weight
- 22.7 kg with power cable and wired remote
- Mounting
- Mast 25 to 35 mm or suspended
- In the box
- 230 V power cable with wired remote
- Add-ons

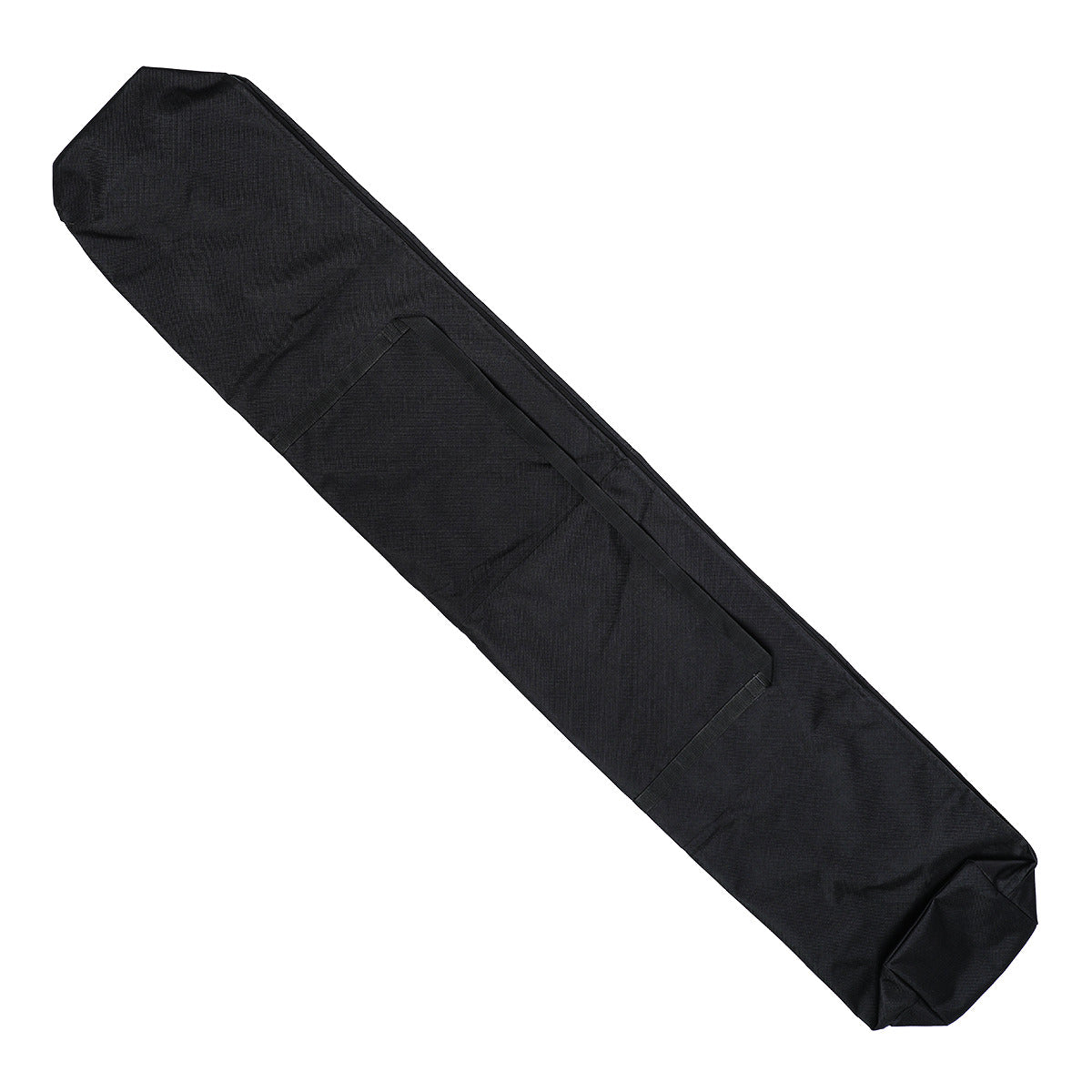

- 4 m tripod T-TR-4M, transport case T-PFL0242-CASE, tripod bag T-POKROWIEC-MASZT
Manufacturer
- Item number
- PFL0242
- Warranty
- 5 years
- Origin
- Made in Poland, patented design
- Manufacturer
- Mactronic Group, Wrocław
Source: Mactronic, product page and data sheet PFL0242, as of October 2026.
Questions & answers
FAQs about the HALO 100K
How bright is the HALO 100K?
24 panels deliver up to 100,000 lumens at 5,000 K and a CRI above 80. Using the wired remote, you dim continuously down to 10,000 lumens, from floodlight to calm work light.
Can I light just one side?
Yes. The segments switch in pairs: 360° all-round or 180° toward the working side. In addition, the panels tilt in several steps up to 45°.
Do I need a generator?
The HALO 100K runs on 100 to 240 V AC and draws 660 W. It connects to a socket, a generator or the vehicle's power feed. There is no built-in battery, so on mains power there is no runtime limit. Surge protection (CM 10 kV, DM 6 kV) protects the electronics.
Which tripod does the HALO 100K fit?
It fits masts 25 to 35 mm in diameter and can also be suspended. For this, Mactronic offers the 4 m tripod T-TR-4M with crank, the transport case T-PFL0242-CASE and a tripod bag. We put the set together for you.
How rugged is the housing?
Polycarbonate, aluminum and steel. IP65 means dust-tight and protected against water jets, IK08 stands for an impact resistance of 5 joules. Operational from −15 °C to +40 °C, and the LEDs are rated for 70,000 hours.
What is the warranty?
Mactronic gives a 5-year warranty on the HALO 100K. It is developed and made in Poland.
Can you purchase on account?
Yes, for fire departments, municipalities and authorities, also via XRechnung. Send us your inquiry and you get a quote with line items and lead time within 24 hours.
How long does delivery take?
Usually 5 to 10 working days. With its cable, the HALO 100K weighs 22.7 kg and ships by freight carrier.
