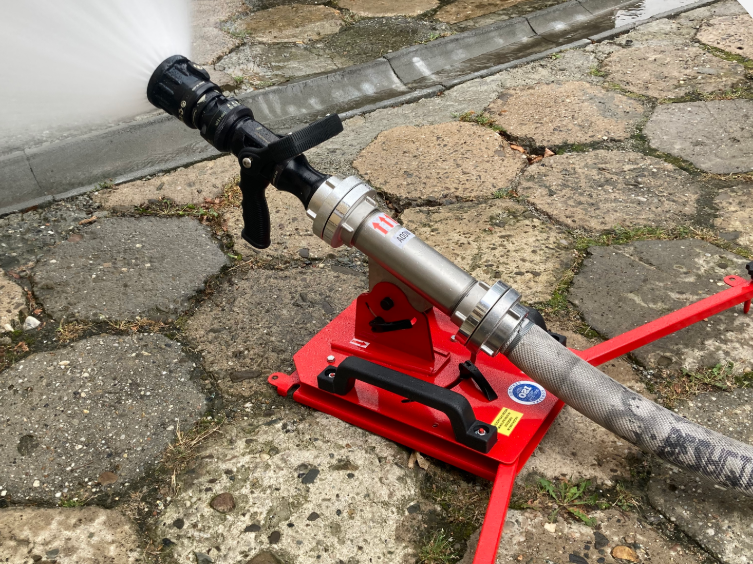

Rescuevation® Universal Monitor Adapter turns your nozzle into a monitor
Turn your existing nozzle into a portable monitor that stands on its own, without buying a new monitor.
- 3 kg Weight
- free-standing Portable monitor
489,00 € net
581,91 € incl. 19% VAT · plus shipping
- Nozzle becomes a monitor adapter instead of buying a new monitor
- Stands on its own personnel can be deployed more efficiently
- Saves space in the vehicle existing nozzles are converted
- Light and robust easy to transport and quickly ready for action
For fire departments, authorities and municipalities
Quote with line items
- Quantity and version to suit your needs
- Purchase on account, XRechnung on request
- Reply within one working day
For fire departments, authorities and municipalities: purchase on account, XRechnung on request
What you use it for
One adapter, three jobs
Wherever water is discharged from a fixed position over a longer period, without a team having to hold that position.
-
Holding line
Water discharge from a fixed position, for example to protect adjacent buildings or storage areas. The monitor holds the position. Your crews work elsewhere.
-
Tank and plant cooling
Continuous cooling at industrial and commercial fires, without permanently tying up personnel near the hazard zone.
-
Extended incidents
Hours of water discharge with no crew rotation on the nozzle, which takes the load off short-staffed units in particular.
The tactical difference
Monitor effect, no monitor budget
A portable monitor is a separate purchase and needs its own stowage space. The Universal Monitor uses what your fire department already has: the nozzle.
Without Universal Monitor
- Nachteil: A team holds the nozzle for hours, with relief crews on long incidents
- Nachteil: An additional portable monitor costs several thousand euros and a permanent stowage space
- Nachteil: Long cooling and protection operations tie up crews needed elsewhere
With Universal Monitor
- Vorteil: Your existing nozzle becomes a free-standing monitor
- Vorteil: 489 € instead of buying a new monitor, and hardly any space needed on the vehicle
- Vorteil: Set up, secure, couple up: the team is free for other tasks
The Universal Monitor does not replace a large monitor: it brings your nozzle’s output into position. The full price comparison is in the procurement calculation below.
Procurement calculation
A monitor for under 500 €
An additional portable monitor is an investment of its own. The Universal Monitor uses the nozzle your fire department already has. The numbers:
Additional monitor: FN65 Monitor
- Water output
- Large monitor
- Vehicle stowage space
- required
- Purchase
- 5,949.98 €
Universal Monitor + nozzle
- Your nozzle
- on hand
- Space in vehicle
- minimal
- Universal Monitor purchase
- 489.00 €
5,460.98 €
stays in your fire department’s budget if your nozzle’s water output suffices for the incident. Calculation: 5,949.98 € − 489.00 €, shop prices as of August 2026.
The two devices cover different performance classes: for large-monitor output at industrial and major incidents, the FN65 Monitor remains the right choice.
Ready for action in a few moves
Set up, couple up, water on
The Universal Monitor goes from its bracket into action without special tools: every pump operator and nozzle team knows the moves.
-
Set up
Set the light 3 kg base plate down in position, fold out the support struts and secure it with the four ground spikes.
-
Couple the nozzle
Couple your nozzle into the Storz mount. It stays unmodified and is free to use on its own again at any time.
-
Connect the hose
Couple the hose line as usual. You set the flow and spray pattern at the nozzle.
-
Water on
Set the elevation with the clamping lever, check the stream direction, start the water discharge. The monitor holds the position on its own.
Good to knowThe Universal Monitor does not modify your nozzle. After the operation, you uncouple it and use it with your team again.
For procurement
Technical data
All Universal Monitor details at a glance. We match the dimensions and coupling size to your nozzle in the quote.
| Function | Takes your existing nozzle and turns it into a free-standing monitor |
|---|---|
| Weight | 3 kg |
| Setup | Base plate with fold-out support struts, anchored with 4 ground spikes |
| Elevation adjustment | Adjustable via clamping lever |
| Mount coupling | Storz, model to match your nozzle’s coupling |
| Compatible nozzles | All nozzles with a matching coupling |
| Max. working pressure | Depends on the nozzle used |
| Finish | Painted red |

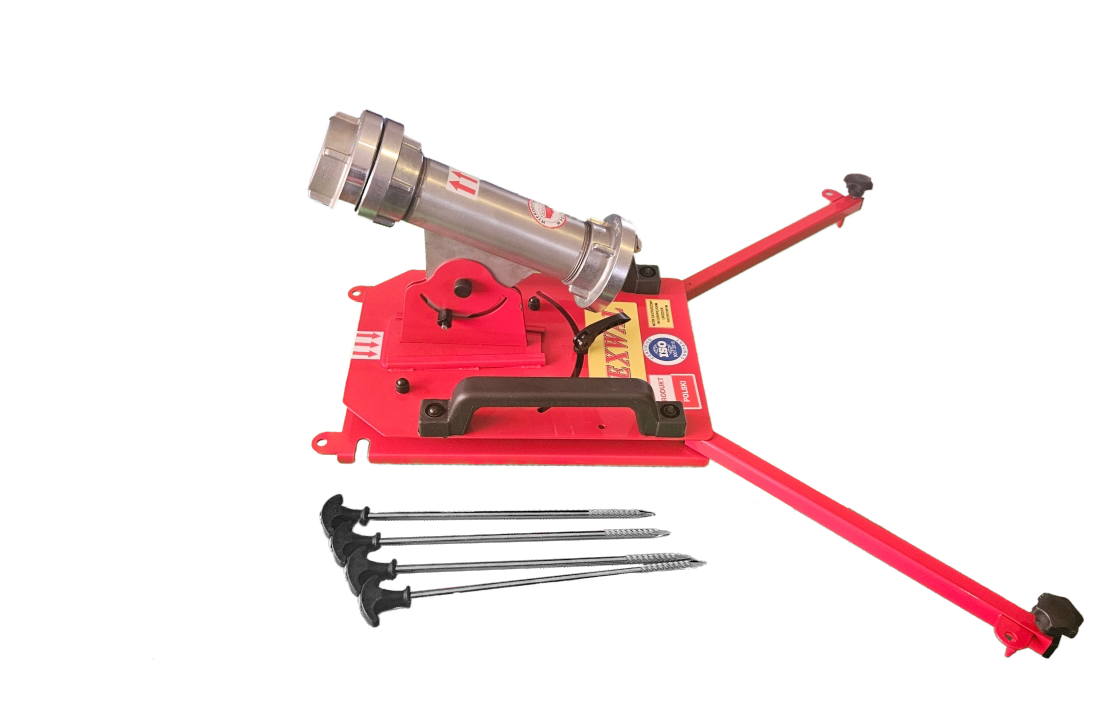

| In the box | 1 × Universal Monitor, 4 × ground spike |
Downloads
Procurement & advice
A quote for your fire department
Purchase on account, a formal quote for your tender documents and a reply usually within 24 h.
Info & service
FAQs about the Universal Monitor
Answers to the questions fire departments and plant fire departments ask us most often.
Direct line to us
We answer technical questions on compatibility, procurement and operational use, usually within 24 h.
Will the Universal Monitor fit our nozzle?
Yes, all nozzles with a matching coupling are compatible. The Universal Monitor is available for different Storz coupling sizes, and your nozzle stays unmodified.
How heavy is the Universal Monitor?
3 kg. With the carrying handle, you carry it in one hand from the vehicle to the incident scene.
What working pressure can the Universal Monitor handle?
The maximum working pressure depends on the nozzle you use.
How quickly is the Universal Monitor ready for action?
Set it up, secure it with the ground spikes, couple the nozzle, connect the hose line, set the elevation with the clamping lever, then water on. It only takes a few moves.
Does the Universal Monitor replace a portable monitor like the FN65 Monitor?
No, it covers the incidents in which your nozzle’s water output is enough: holding line, cooling and long water discharge from a fixed position. For large-monitor output, we carry the Rescuevation FN65 Monitor.
Can fire departments and public authorities purchase on account?
Yes. Purchase on account is available for municipalities, fire departments, plant fire departments, public authorities and companies. On request, you get a formal quote for your tender documents in advance, usually valid for 30 days.
How long does delivery take?
Usually around 5 to 10 workdays. We give you the exact delivery time in the quote.
Are there terms for joint orders?
Yes. For larger quantities, joint orders by several fire departments or procurement via the district, we prepare project-specific terms: just ask.
Rescuevation: As seen in the trade press
Product details
Rescuevation® Universal Monitor
FAQs
Does the monitor fit your nozzle?
- All nozzles with a matching coupling are compatible: you couple your existing nozzle straight into the Storz mount.
- The Universal Monitor is available for different coupling sizes: just tell us your nozzle’s coupling when you order.
- The maximum working pressure depends on the nozzle you use.
- Your nozzle stays unmodified and is free to use on its own again right after the operation.
