Protection & decon
The difference
A floodlight on the ground shines from the spot where it stands. Behind every vehicle, every embankment and every piece of debris, a patch stays dark. The SKYLUX 200 places the light source above the incident scene and shines straight down.
The mast stands in one spot and shines across the area at a low angle. Whatever lies behind is left in shadow.
The drone hovers up to 12 m above the incident scene. From there, 20,000 lumens spread evenly across 315 m².
Four incident types where ground lighting regularly reaches its limits. Images are illustrative.
At night on a country road: the work area around the vehicle has to be bright, including under the wreck and behind the guardrail.
Area lighting over rough terrain, without anyone carrying a mast across the embankment.
Staging area, casualty collection point, command post: areas that have to stay lit for hours.
Roofs, bridges, plant components: light where an aerial platform would otherwise have to be set up first.
Tethered, not battery-powered

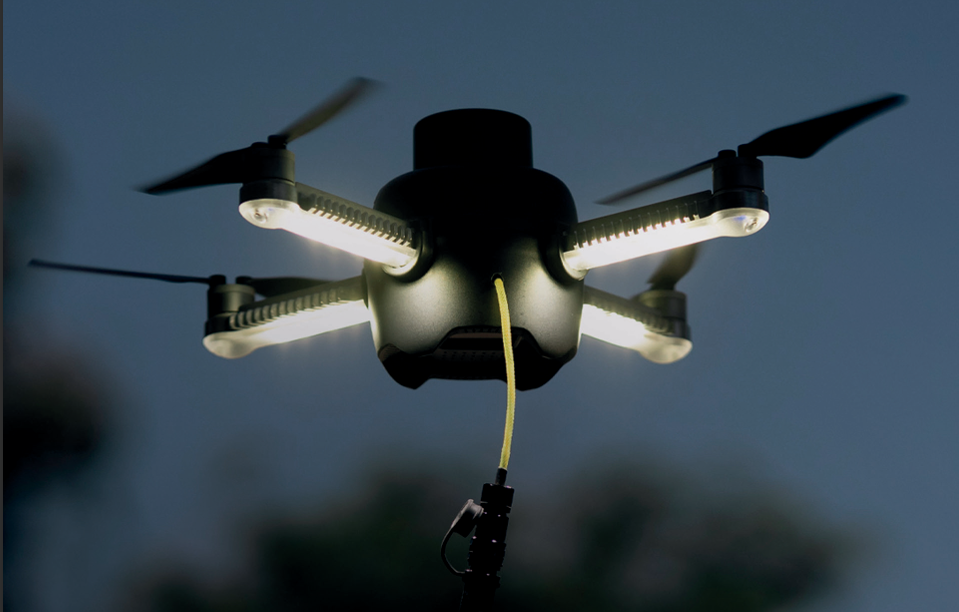

The yellow cable makes the difference: it powers the drone from the ground and controls it. No battery that runs flat in the middle of an operation, and no radio channel that could be busy.
Comparison
Both light up the incident scene. The difference lies in the angle, the setup time and how many personnel stay tied up afterwards.
SKYLUX 200 data from the Mactronic® data sheet. The comparison describes the difference inherent in the design, not a measurement against a specific mast model.
Fast track
Call or request a quote: both reach the same person.
Setup
Four steps, one responder, no tools.

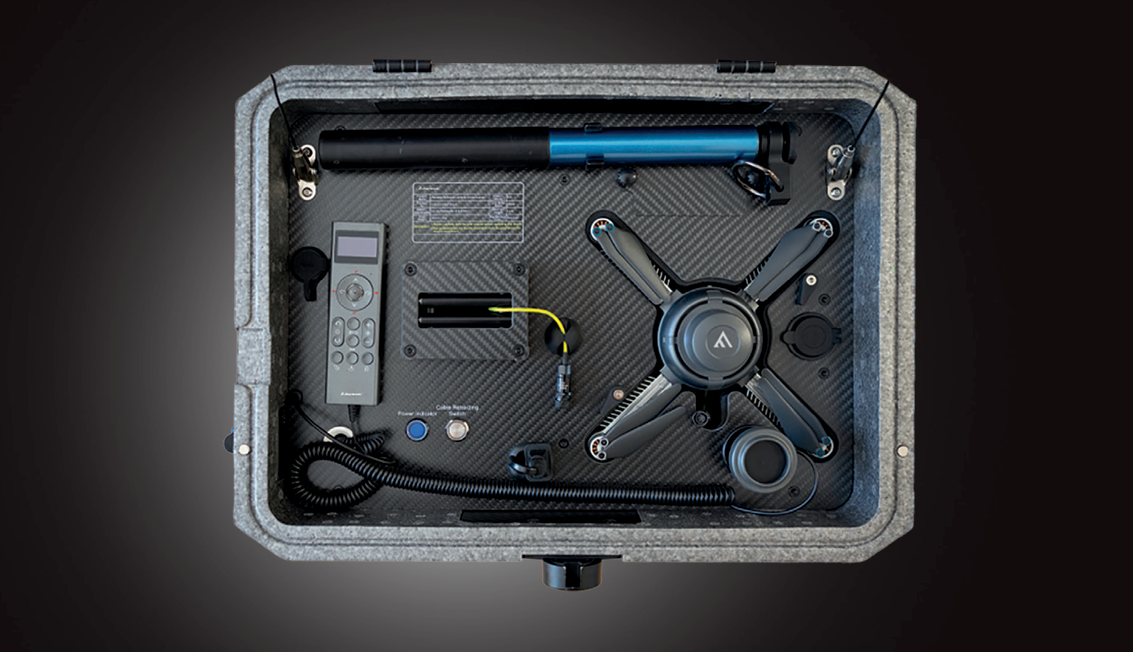

The transport box measures about 50 × 38 × 24 cm and weighs under 10 kg. One responder carries it to the spot that needs light.
The system runs on AC 230 V / 50 Hz and draws 350 W rated power, 200 W of it for the LEDs. The same cable powers the drone, so there is no battery planning.
The tethered drone climbs up to 12 m. It is controlled from the ground via the hand controller, without tools or assembly.
20,000 lumens cover 315 m² evenly. The complete setup takes under five minutes, handled by one person.
What helps us with your requestTell us how large the area is that you regularly need to light, and where the power at your incident scene comes from. We then tailor the quote to that.
We confirm the binding scope of delivery in your quote, with line items and lead time.
Conditions
The limits are in the data sheet, so you know in advance when the system flies.
Technical data
All values from the Mactronic® data sheet.
| Light output | 20,000 lm |
|---|---|
| Illuminated area | 315 m² |
| LED power | 200 W |
| Total rated power | 350 W |
| Input voltage | AC 230 V, 50 Hz |
| Maximum flight height | 12 m |
| Maximum operating altitude above sea level | 4,500 m |
| Wind resistance class | Class 6 (approx. 50 km/h) |
| Rain resistance class | Class 10 |
| Operating temperature | −20 °C to +60 °C |
| Cable length | approx. 12 m |
| Control | Hand controller, wired |
| Drone weight | under 250 g |
| Drone dimensions without rotors | 185 × 185 × 85 mm |
| Wheelbase | 230 mm |
| Transport box, total weight | under 10 kg |
| Transport box, dimensions | approx. 500 × 380 × 240 mm |
| Manufacturer | Mactronic® Group, Poland |
Two ways
Both reach the same person. The only difference is whether you already need a quote or want to see the system first.
You know what you need and want the figures in black and white.
You get
Takes you to the form below.
You want to know whether the system suits your incidents before any money changes hands.
You get
Enter your preferred date in the message.
Briefly tell us what you need the light for. Only the email is required: everything else helps us calculate the quote correctly right away. If you would like advice first, just say so in the message.
