VlitexItem no. 200327

Vlitex Akku-Safe Rack Battery rack with fireproof cover

Charge and store batteries in a rack whose protective cover isolates flames, reduces smoke and limits explosions.

  • 1,000 °C Continuous
  • 1,750 °C Short-term
  • 180 kg Per shelf
  • 3 or 5 Shelves
Who is it for? Fire department Business

641,00 € net

762,79 € incl. 19% VAT · plus shipping

GrößeM (1,0 × 0,80 × 0,40 m)

Available to order · Delivery in approx. 5 to 10 working daysShipping by DHL or DPD, heavy items by freight carrier

  • American Express
  • Apple Pay
  • BLIK
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Non-combustible fire behavior to DIN EN 13501 (MPA)
  • Fraunhofer Institute fire test passed battery module fire test above 1,300 °C
  • HT glass fiber on metal rack special polymer coating
  • Two sizes M up to 360 kg, L up to 720 kg total load

For fire departments, authorities and municipalities

Quote with line items

  • Quantity and version to suit your needs
  • Purchase on account, XRechnung on request
  • Reply within one working day
Request a quote

For fire departments, authorities and municipalities: purchase on account, XRechnung on request
  • Tested, not claimed Eleven tests, seven labs
  • Purchase on account Fire departments & firms
  • Personal advice Reply within 24 h

Why this keeps growing

A battery costs more than the rack

Not because the cells have gotten worse: there are simply more of them. And the more batteries sit at a single charging area, the more likely it is that one of them fails.

21.432t

Lithium-ion batteries placed on the market in Germany in 2024

Batteries pile up

Around 15 percent more than the year before. What used to run on a cord now runs on batteries: drills, saws, vacuums, fans, rescue tools, hand lamps, and they all end up at the same charging area in the evening.

German Environment Agency, “Altbatterien”, as of 2024

Fire tests commissioned by the German Insurance Association (GDV)

The first minutes count

A battery fire can be brought under control with water, but only if cooling starts early and covers a large area. The fire department, too, can only control such fires if it fights them effectively in the first few minutes.

GDV, fire tests by VdS Schadenverhütung

The day after

Downtime gets expensive

Property damage is one thing. Business interruption usually weighs more heavily: orders are on hold, the building is sealed off, machinery and tools have to be replaced. Meanwhile, the fire station is missing the equipment that was on the shelves.

This is exactly where the Akku-Safe Rack comes in: it does not stop a cell from going into thermal runaway. It keeps the fire where it started.

Choose size

Sources: German Environment Agency, “Altbatterien” (as of 2024) · IFS Report 1/2024, Institute for Loss Prevention and Loss Research of the German public insurers · GDV, fire tests by VdS Schadenverhütung. The IFS figures refer to fire damage cases investigated by the IFS, not to all fires in Germany. None of the bodies named rates individual products.

If it does happen

Six steps, and the fire stays in the rack

Each step with the test report that backs it up.

Charging

Small battery-powered devices and e-bike batteries sit on the shelves and charge, enclosed in the protected space. The rack is designed for storage and charging.

3 or 5 shelves, each rated for 180 kg

Thermal runaway

A cell fails and ignites. The cover made of HT glass fiber with a special polymer coating isolates the flames inside the rack.

Non-combustible according to DIN EN 13501 (MPA)

Smoke and toxic gases

The cover reduces the spread of smoke and toxic gases into the workshop, hall and fire station.

Smoke reduction: Magna Steyr test report

Pressure

If a cell fails abruptly, the fabric holds together: bursting strength and a static puncture force of 8.69 kN have been tested.

BS EN ISO 13938-2:2019 (Eurofins) · DIN EN ISO 12236:2006-11

Surroundings

The temperature outside the rack stays below the temperature inside. Up to 1,000 °C continuously, up to 1,750 °C short-term.

KIWA test according to DIN SPEC 91489

Then

The protective cover has absorbed the fire and is disposed of because it is contaminated with toxic gases. The metal rack stays: only the cover is replaced.

Only the cover is replaced

How it looks in use

Closed, open, full

Left: the rack in a workshop. Next to it, both sizes open: this many batteries fit inside.

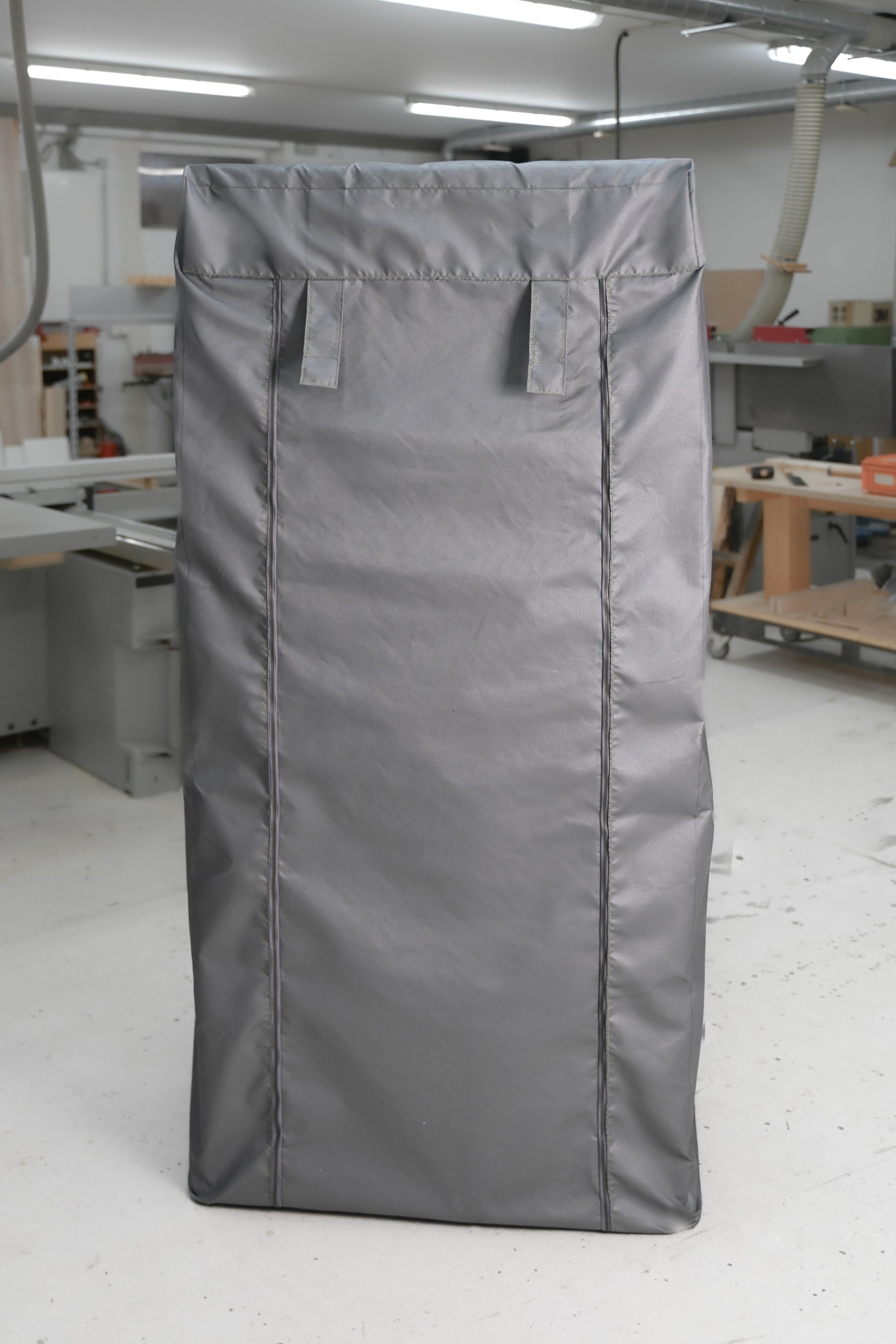

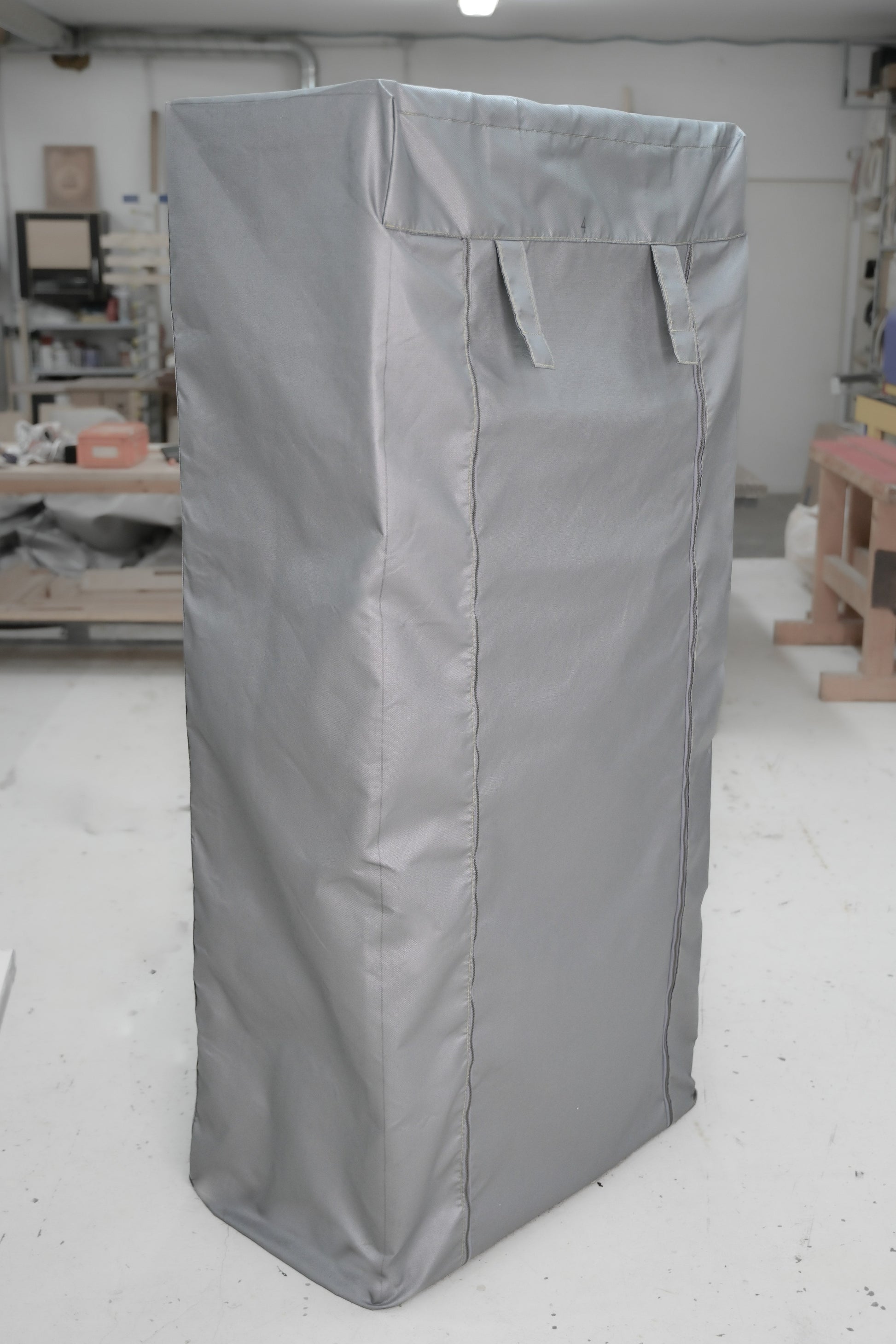

Vlitex Akku-Safe Regal, Werkstatt-Einsatz mit Akku-Werkzeugen geschlossen In use

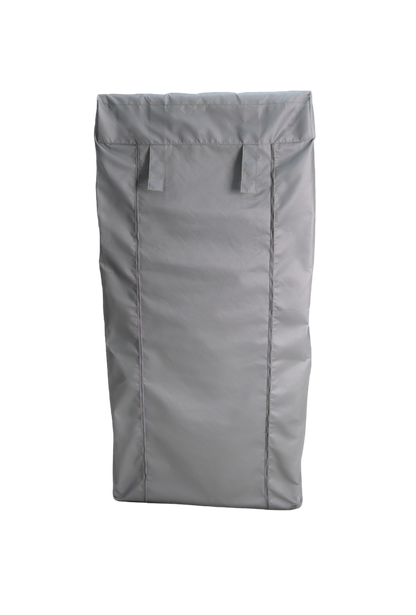

Closed in the workshop

The HT glass fiber cover encloses the rack. Inside, the batteries keep charging: it is designed for storage and charging.

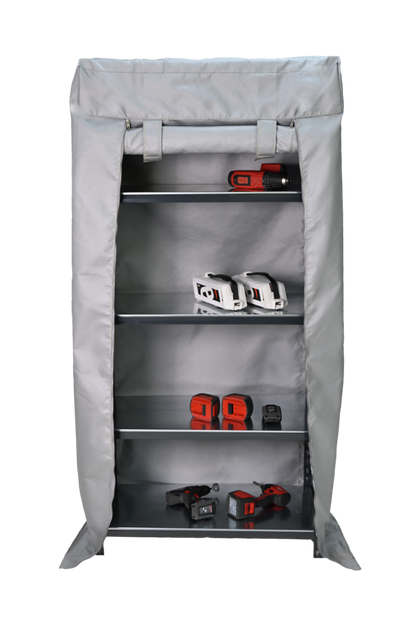

Vlitex Akku-Safe Regal, geöffnet freigestellt Size L

Five 180 kg shelves

The L holds the battery stock of a workshop or fire station, on a footprint of 0.80 × 0.40 m.

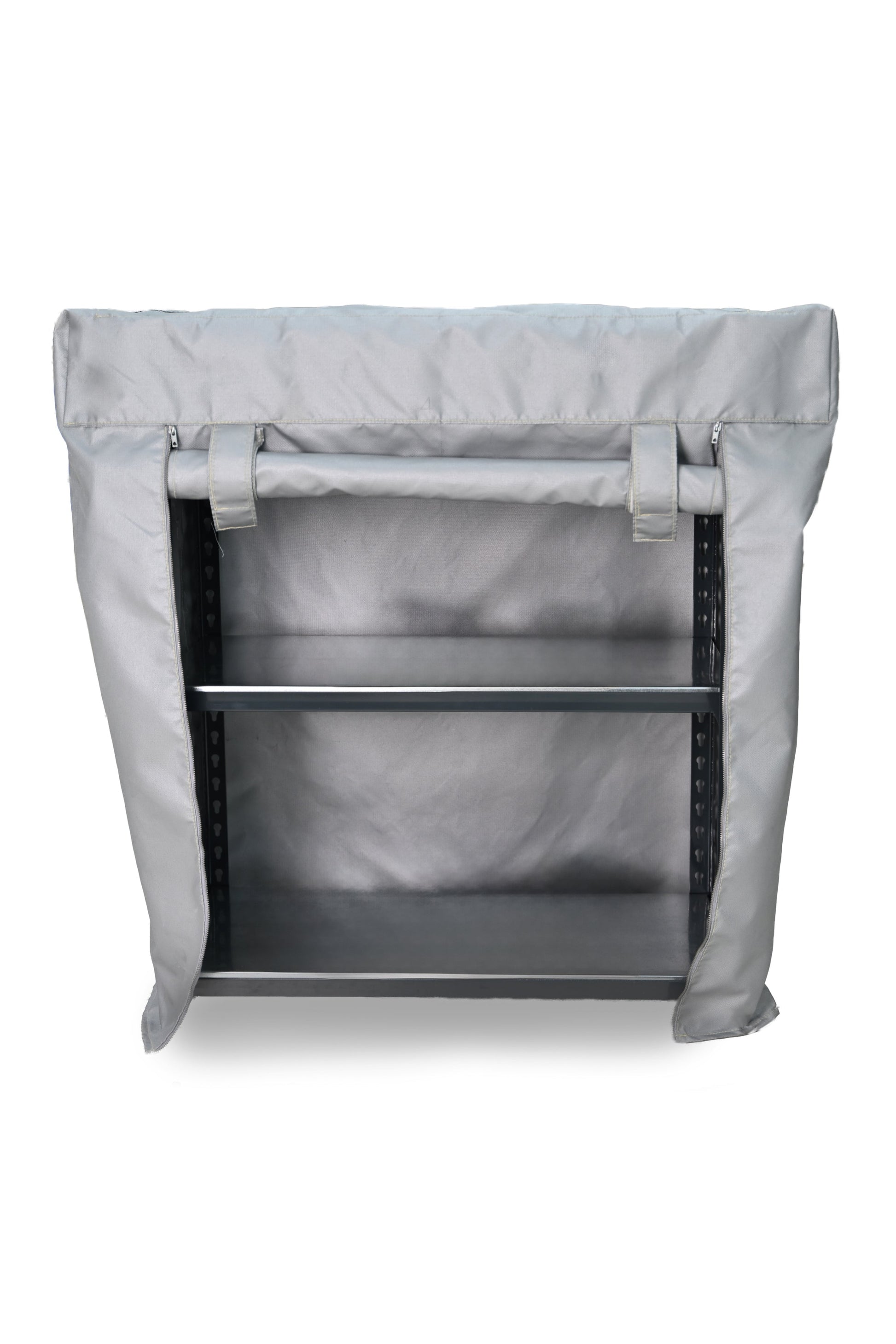

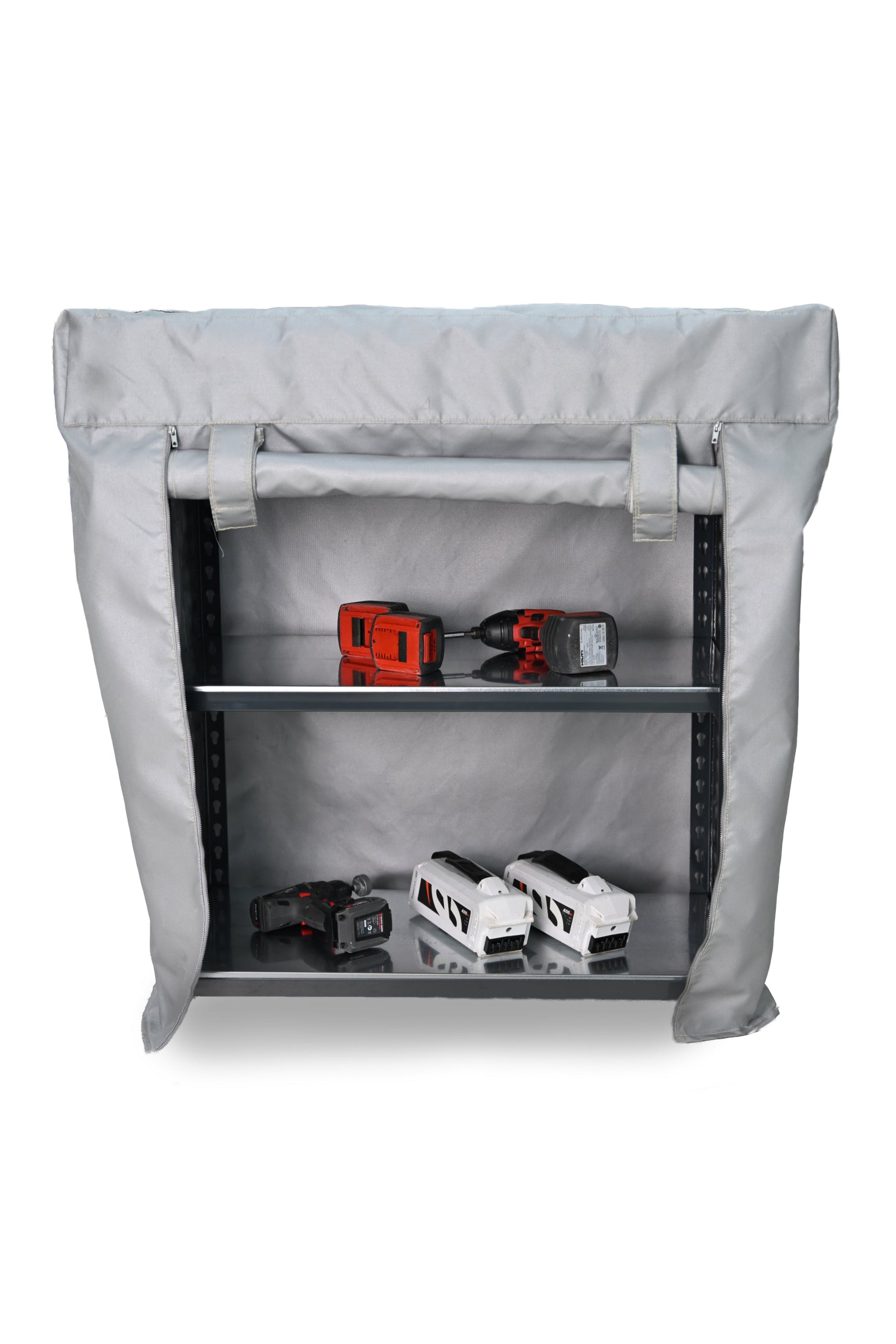

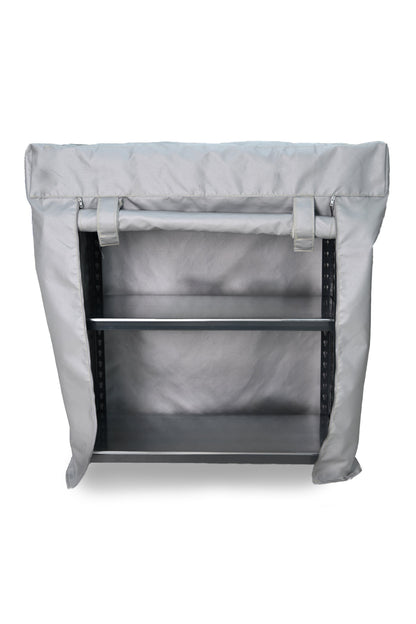

Vlitex Akku-Safe Regal, geöffnet mit Akku-Lagerung freigestellt Size M

Three shelves for charging

The M secures a single charging area next to the workbench: same footprint, 1.00 m high.

Photos of both sizes: Akku-Safe Rack L (item no. 200328) and M (item no. 200327).

Choose size

M or L, drawn to scale

Both racks have the same footprint. The difference lies in the height, the number of shelves and the load capacity.

Akku-Safe Rack M

For a single charging area

Maße (H × B × T)
1.00 × 0.80 × 0.40 m
Regalböden
3 shelves, each 0.80 × 0.40 m
Traglast
180 kg per shelf, max. 360 kg
Gewicht
Rack 12.3 kg + cover 3.4 kg
Art.-Nr.
200327

Fits next to the workbench when one charging area needs to be secured.

€641,00 net, excl. VAT

Choose size M

Our recommendation

Akku-Safe Rack L

For all your batteries

Maße (H × B × T)
1.80 × 0.80 × 0.40 m
Regalböden
5 shelves, each 0.80 × 0.40 m
Traglast
180 kg per shelf, max. 720 kg
Gewicht
Rack 20.8 kg + cover 8.0 kg
Art.-Nr.
200328

156 € more than M: in return, two more shelves and 360 kg more load capacity, on the same footprint.

€797,00 net, excl. VAT

Choose size L

Allow at least 10 cm of clearance all around from walls and other objects, so you need about 1.00 × 0.60 m of floor space.

Dimensions and weights are subject to a ± 5% tolerance. Prices net, excl. VAT.

Setup & operation

Up and running in four steps

From choosing the location to charging in daily use.

  1. Pick a location

    Firm, level ground in the charging or storage area. At least 10 cm of clearance all around from walls and other objects.

  2. Set up the rack

    Metal rack with 3 shelves (M) or 5 shelves (L). Each shelf carries up to 180 kg.

  3. Load and charge batteries

    Place small battery-powered devices and e-bike batteries on the shelves and plug them in. The rack is designed for storage and charging.

  4. Close the cover

    The HT glass fiber protective cover encloses the rack and forms the protected space around the charging area.

After a battery fireThe protective cover is the wear part: it is disposed of because of contamination with toxic gases and replaced separately. The metal rack stays in service.

Tested, not claimed

Four safety goals, eleven tests

Fire, smoke, pressure, material: each safety goal has its own tests, with institute, measured value and method.

7 independent institutes tested it
11 individual tests and measured values
1 figure comes from the manufacturer, and we label it as such

Fire

5 ×
  • 1,000 °CKIWA DIN SPEC 91489
  • 1,750 °CVlitex Manufacturer figureInternal test report
  • Non-combustibleMPA DIN EN 13501
  • Fire test passedFraunhofer based on VDMA 24994
  • > 1,300 °C passedMagna Steyr Fire test on a battery module

Smoke and gases

1 ×
  • Smoke reduction verifiedMagna Steyr Test report

Pressure and explosion

2 ×
  • Bursting strength testedEurofins BS EN ISO 13938-2:2019
  • 8.69 kNTesting body to followDIN EN ISO 12236:2006-11

Material and aging

3 ×
  • 18.45 NSTFI ISO 13997:1999-08
  • Bend test passedSTFI STFI test report
  • 7 × 10¹¹ ΩHochschule Hof DIN 54345-1

One figure comes from an internal Vlitex test report, and for one test we do not yet have the name of the testing body. Both are marked above: we would rather list them than leave them out.

Request test reports We'll send the documents for your internal approval.

For procurement

Technical data & tests

All values from manufacturer data, with testing body and method.

Fabric HT glass fiber
Coating Special polymer
Rack Metal
Continuous heat resistance 1,000 °C (KIWA test, DIN SPEC 91489)
Short-term heat resistance 1,750 °C (internal test report)
Reaction to fire Non-combustible (DIN EN 13501, MPA)
Fire test Fraunhofer Institute, based on VDMA 24994 (fire-resistant storage cabinets)
Battery module fire test Magna Steyr: > 1,300 °C passed
Smoke reduction Magna Steyr test report
Explosion protection Bursting strength according to BS EN ISO 13938-2:2019 (Eurofins); static puncture force 8.69 kN according to DIN EN ISO 12236:2006-11
Cut resistance 18.45 N (ISO 13997:1999-08, STFI)
Bend test STFI test report after continuous exposure to 750 °C
Electrical resistance 7 × 10¹¹ Ω (DIN 54345-1, Hochschule Hof)
After a battery fire Dispose of the protective cover and replace it separately, the metal rack stays
Size M (item 200327) 1.00 × 0.80 × 0.40 m · 3 shelves · 180 kg/shelf · max. 360 kg · rack 12.3 kg + cover 3.4 kg
Size L (item 200328) 1.80 × 0.80 × 0.40 m · 5 shelves · 180 kg/shelf · max. 720 kg · rack 20.8 kg + cover 8.0 kg
Clearance At least 10 cm from walls and other objects (manufacturer recommendation)
Tolerance Dimensions and weights ± 5%
Replacement cover Replaceable separately, item number on request
In the box Rack with protective cover
Technical data sheet On request

Downloads

Request a quoteWith line items and delivery time · Reply within 24 h

Procurement & advice

A quote for your firm or your fire department

Purchase on account for municipalities, fire departments and businesses. You get a quote with line items and delivery time, with a reply usually within 24 h.

Request a quote +49 1522 8790057Direct line for questions on size and procurement

FAQs

What gets asked before procurement

Can I charge the batteries in the closed rack?

Yes. The Akku-Safe Rack is designed for storing and charging small battery-powered devices and e-bike batteries.

Does the rack extinguish a battery fire?

No, it contains it. The protective cover isolates the flames inside, reduces the spread of smoke and toxic gases, lowers the temperature outside the rack and limits explosions.

M or L: which size do I need?

M is 1.00 m high with 3 shelves (max. 360 kg), L is 1.80 m high with 5 shelves (max. 720 kg). Both have the same footprint: 0.80 × 0.40 m. M secures a single charging area, L holds the battery stock of a workshop or fire station.

How much space should I allow?

The footprint is 0.80 × 0.40 m. With the recommended 10 cm of clearance all around, you need about 1.00 × 0.60 m of floor space.

Can I keep using the rack after a battery fire?

The metal rack, yes. The protective cover absorbs the fire and is disposed of because of contamination with toxic gases: it can be replaced separately.

Which tests have been carried out?

Tests were carried out by KIWA (DIN SPEC 91489), the MPA (DIN EN 13501), the Fraunhofer Institute (based on VDMA 24994), Magna Steyr (battery module fire test and smoke reduction), Eurofins (bursting strength), the STFI (cut resistance and bend test) and Hochschule Hof (electrical resistance).

Can you purchase on account?

Yes, for municipalities, fire departments, emergency service units and businesses. You get a quote with line items and delivery time.

How long does delivery take?

Usually 5-10 working days. Because of its weight and dimensions, the rack ships by freight carrier.

Product details

Vlitex Akku-Safe Rack

FAQs

How much space do I need?

Both sizes have a footprint of 0.80 × 0.40 m. We recommend a clearance of at least 10 cm all around from walls and other objects, so you need about 1.00 × 0.60 m of floor space.

Request a quote & purchase on account

Read the background on battery storage Collapse background

Storing and charging lithium-ion batteries safely

Battery-powered tools are part of everyday life in every workshop, and in fire stations, hand lamps, fans and battery-powered rescue tools are permanently on maintenance charge. Charging usually happens where the work is done: on the workbench, on the shelf, next to materials and machines. This is exactly where the Vlitex Akku-Safe Rack comes in: it handles storage and charging and keeps a thermal runaway contained inside.

What the rack does in a fire

The protective cover is made of HT glass fiber with a special polymer coating and fits over a metal rack. If a battery ignites, the cover isolates the flames inside the rack, reduces the spread of smoke and toxic gases, lowers the temperature outside the rack and limits explosions. The fabric withstands up to 1,000 °C continuously (KIWA test according to DIN SPEC 91489) and up to 1,750 °C short-term. It is non-combustible according to DIN EN 13501 (MPA).

For trade businesses and fire departments

The Akku-Safe Rack comes in two sizes with an identical footprint of 0.80 × 0.40 m: M, 1.00 m high with 3 shelves, and L, 1.80 m high with 5 shelves. Each shelf carries up to 180 kg. This lets you secure a single charging area in the workshop as well as the entire battery stock of a business or fire station. Purchase on account is available for municipalities, fire departments and businesses.
