CDDDC wye
Euro Wildfire Wye CDDDC
This wildfire wye was developed specifically for wildland firefighting. It eases the workload of fire departments during firefighting and mop-up.

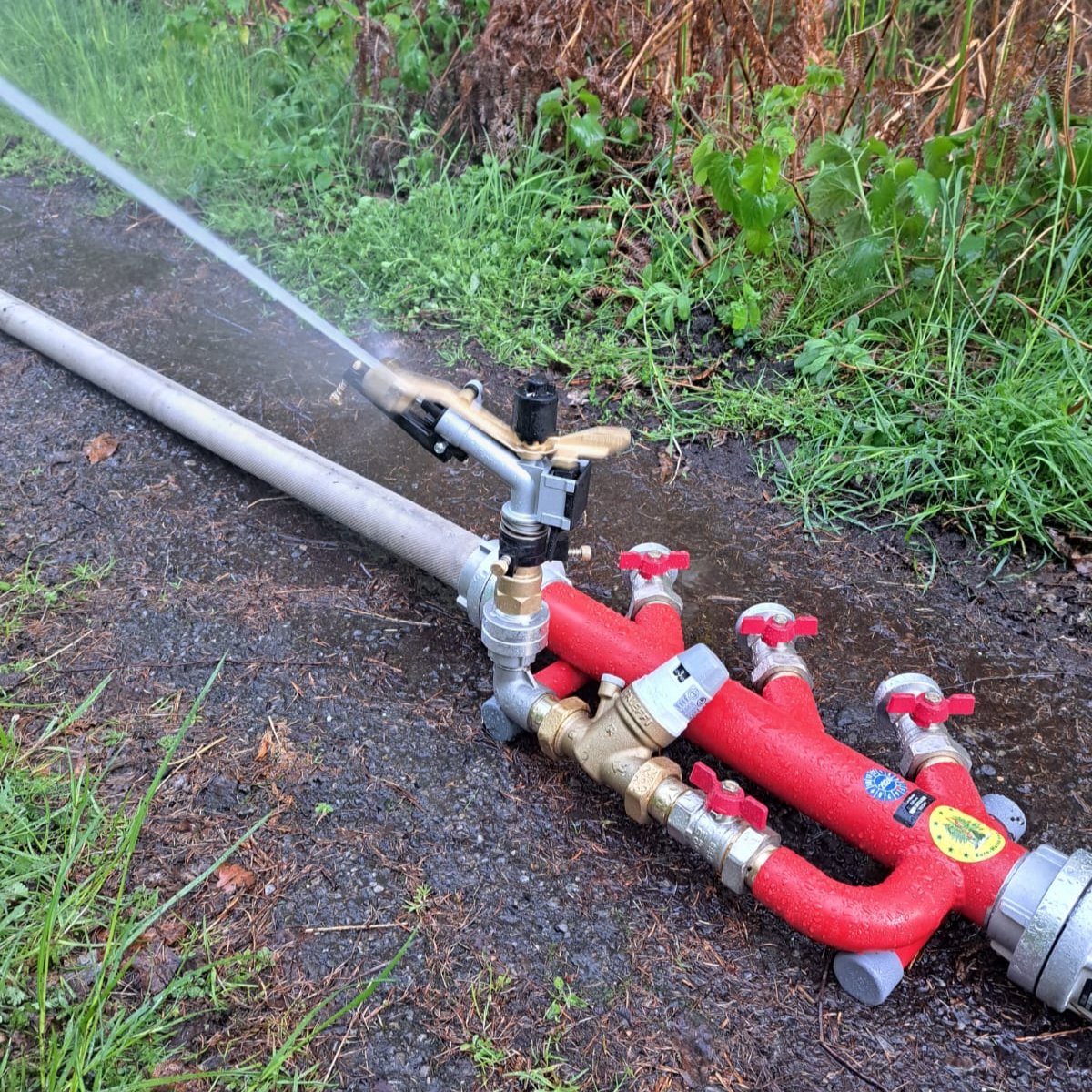

Wye with rotary sprinkler

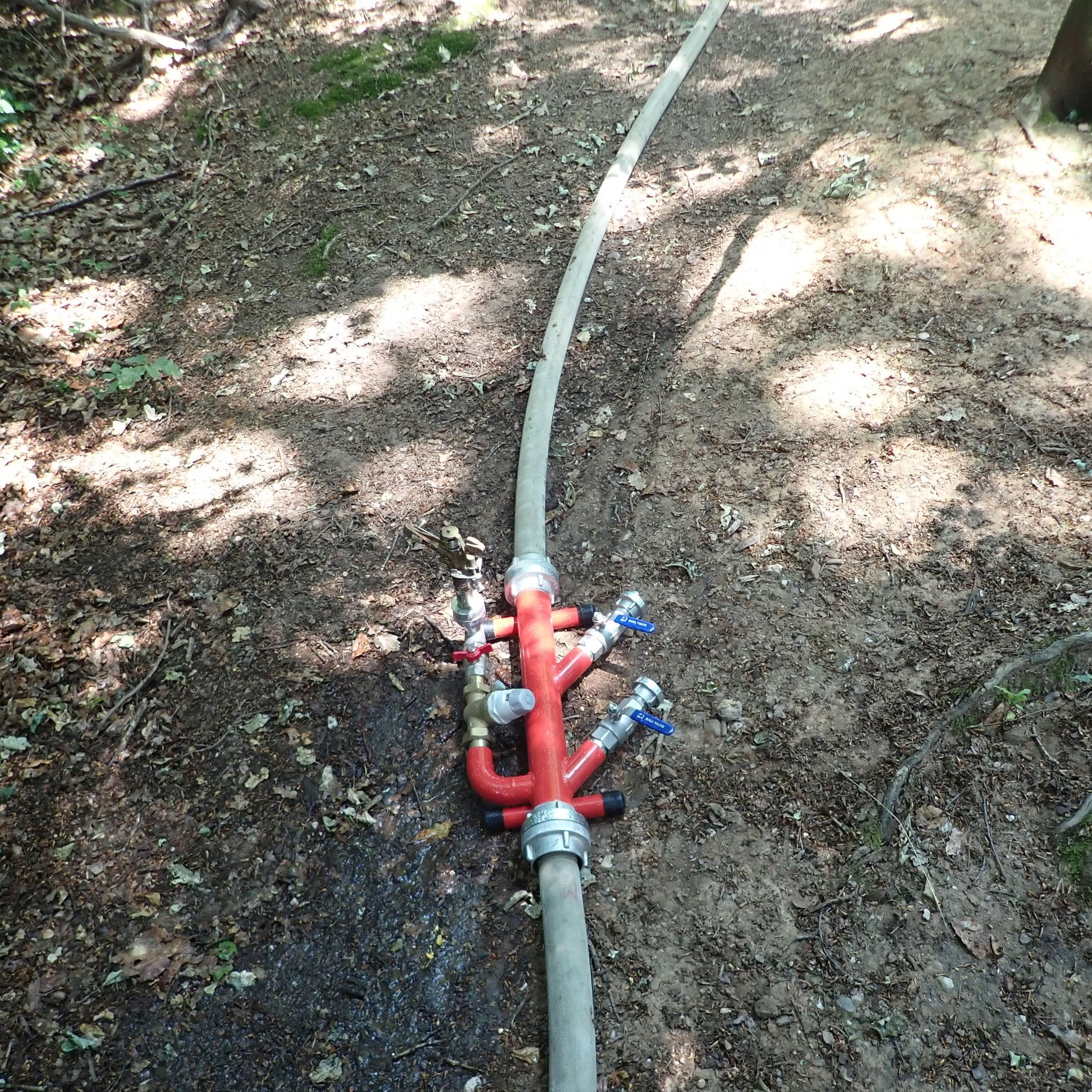

Setup

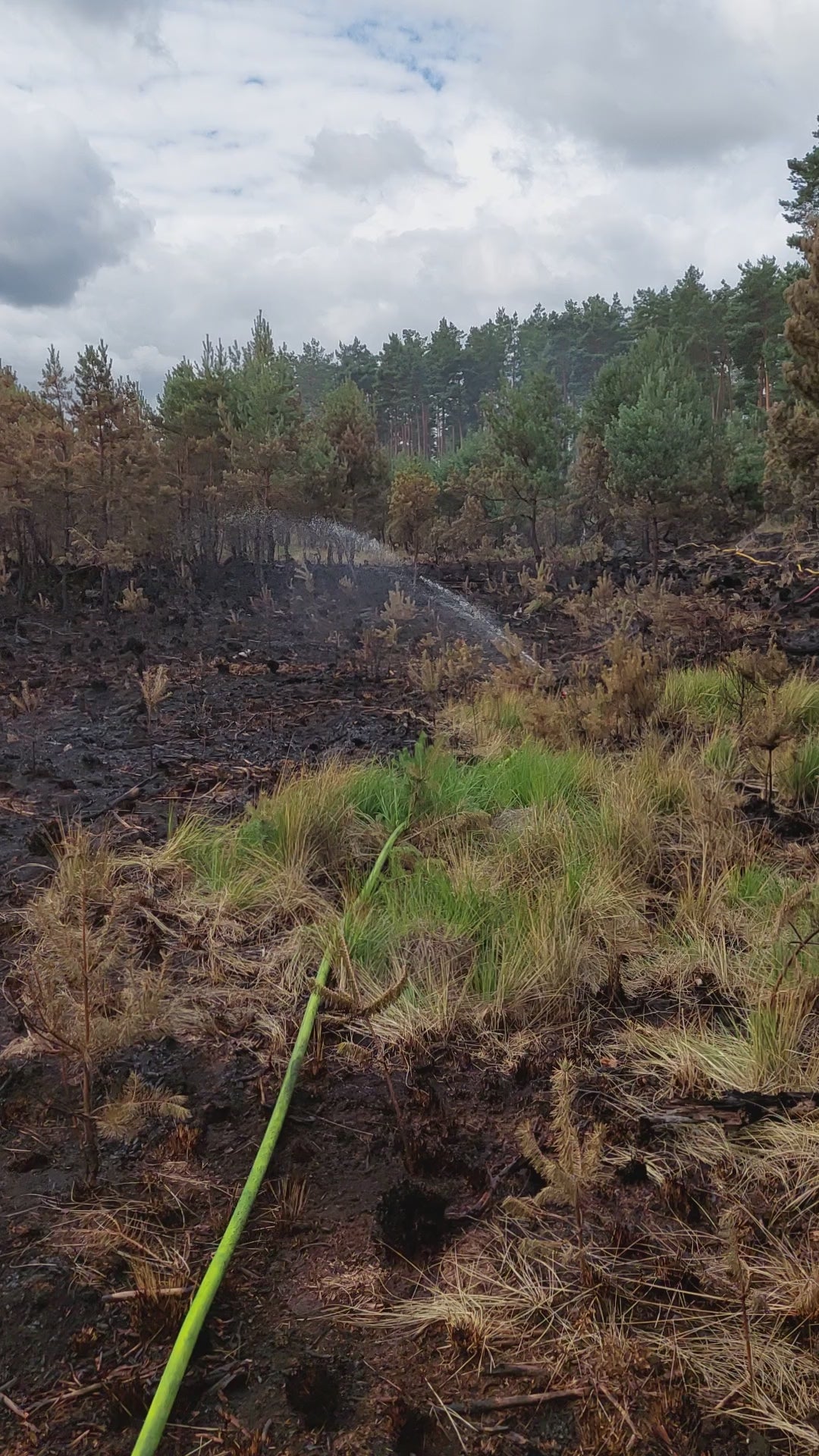

Like any other wye, the wildfire wye is coupled into the C (52 mm) hose line. Water for firefighting can be drawn from the two D (25 mm) outlets. For mop-up, the sprinkler can be coupled to outlet 4 and then handles the mop-up automatically within the set area (max. 25 m diameter, 25 l/min at 2.5 bar) without tying up personnel.
Wildfire wye

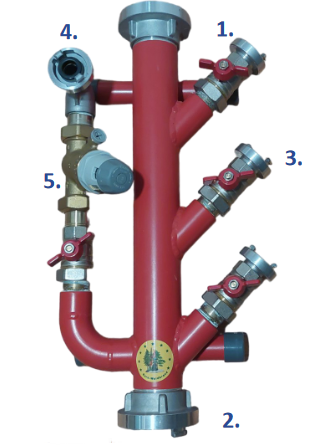

The wildfire wye in detail
- Water inlet: Storz C (52 mm)
- Water outlet: Storz C
- Three outlets for drawing water: Storz D (25 mm), suitable for firefighting or for mopping up burned areas. Fitted with an impulse sprinkler with a range of 25 meters.
- The sprinkler can be removed if it is not needed.
- Pressure reducer: allows up to 10 units to be used in series without significant pressure loss.
- The system is designed to be gentle on trees, so the water is applied gently and can penetrate the soil effectively.
You can find more compatible rotary sprinklers among the SnakE® rotary sprinklers for tree mounting.
