1 ladder tier
Compact starter, no tarp
- 3,000 liter capacity
- Kamel® connectors for one ladder tier
- Height-adjustable supports, standard
One system, three uses
At a vegetation fire, the Kamel® is a water buffer, and with the same connectors it becomes a decon station for personnel and vehicles.
Vegetation firesBuffer at the transfer pointUp to 7,500 liters decouple water shuttle and fire attack.
Post-incident deconDecon shower for respondersShower arch and retention basin from the same connectors. →
Epizootics & hazmatVehicle decon laneCleaning arches for when many vehicles need cleaning fast.Transfer point
How a buffer changes the water shuttle
At a vegetation fire, water tenders shuttle between the water source and the incident scene. Without a buffer, delivery is tied to the vehicles’ turnaround. With the Kamel®, the water stands ready at the transfer point.
Without a buffer
- Flow, no vehicle at transfer point
- stops
- Pace of the fire attack set by
- the shuttle
- Nozzles while waiting
- stand idle
With the Kamel®
- Buffer at transfer point, up to
- 7,500 l
- Tank loads of a TLF 3000*
- 2,5
- Flow during shuttle runs
- continues
7,500 l
Water at the transfer point
Built from sectional ladders your vehicles already carry.
*Calculation: A TLF 3000 carries 3,000 l of extinguishing water. 7,500 l ÷ 3,000 l = 2.5 tank loads.
Rescuevation Original
Your sectional ladders become a 7,500-liter tank
A Rescuevation innovation: in a few quick steps, the Kamel® turns standardized sectional ladders into a water buffer, and after the incident into a decon station.
- Rescuevation Original
- As seen in the trade press & on TV
- DIN EN 1147 compatible
The difference
Folding tanks then, and the Kamel® now
Conventional folding tanks come with their own frame. The Kamel® uses what your vehicles already carry: sectional ladders to DIN EN 1147.
Conventional folding tank
- Nachteil: Dedicated frame that serves only this one purpose
- Nachteil: Permanently takes up stowage space on the vehicle
- Nachteil: Hard to level on uneven ground
Kamel® from sectional ladders
- Vorteil: Builds on sectional ladders your vehicle already carries
- Vorteil: Fits folded into a standard Euro box
- Vorteil: Height-adjustable supports level uneven terrain
- Vorteil: Positive-locking metal connection instead of loose knots
- Vorteil: The same connectors build a decon shower and a vehicle decon lane
Much more stable footing than comparable folding tanks, thanks to height leveling and a positive-locking connection.
Setup
From vehicle to tank
Four steps, around 3 minutes, with equipment your vehicles already carry.
-
Join the sectional ladders
Connect up to eight sectional ladder sections as usual, for two tiers stacked on top of each other.
-
Fit Kamel® connectors
The connectors engage the locking pins to DIN EN 1147 and join the ladders into a positive-locking frame.
-

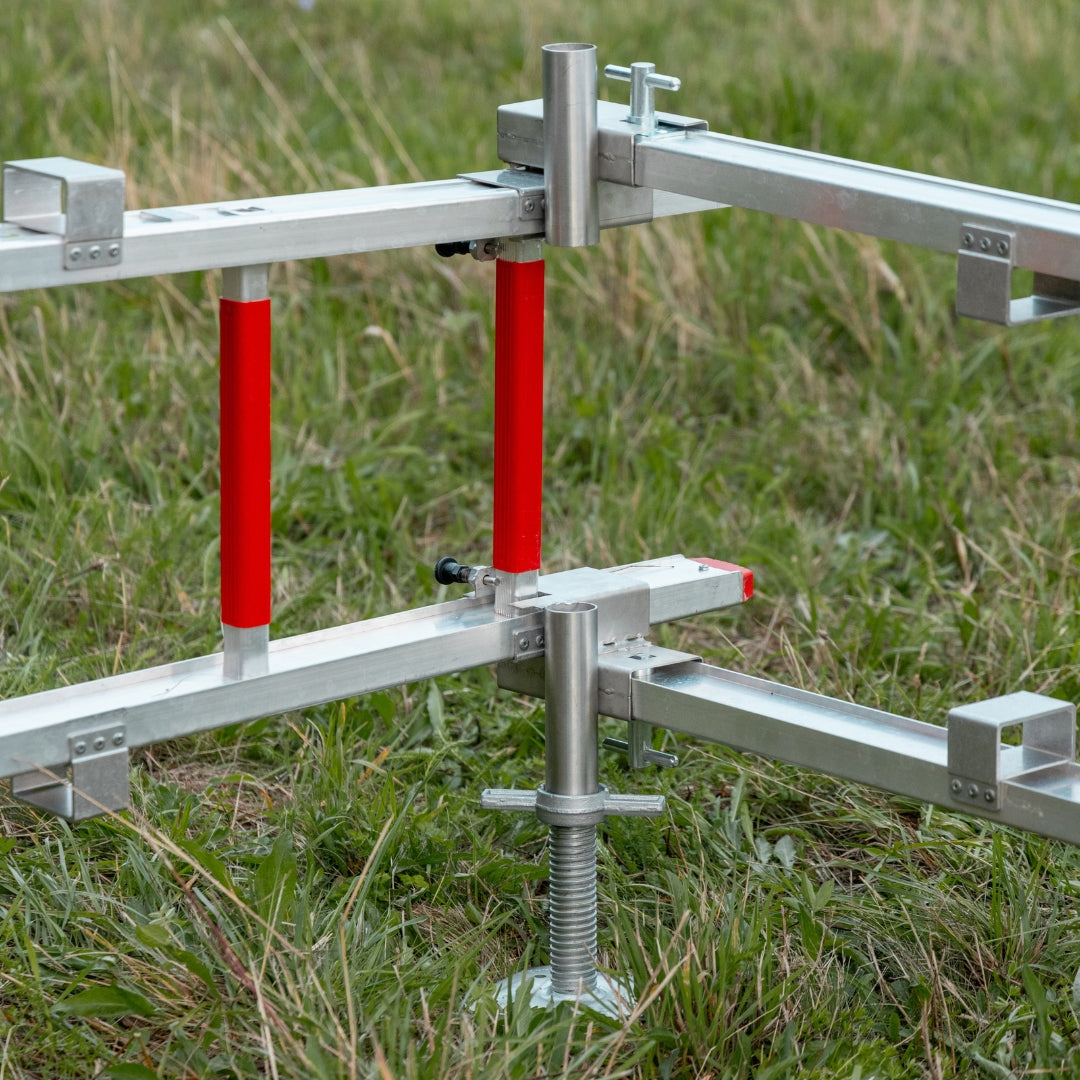

Level the supports
The height-adjustable supports compensate for uneven terrain, so the tank stands level.
-
Fit the tarpaulin and fill
Lay in the tarpaulin, fill it: up to 7,500 liters stand ready at the transfer point.

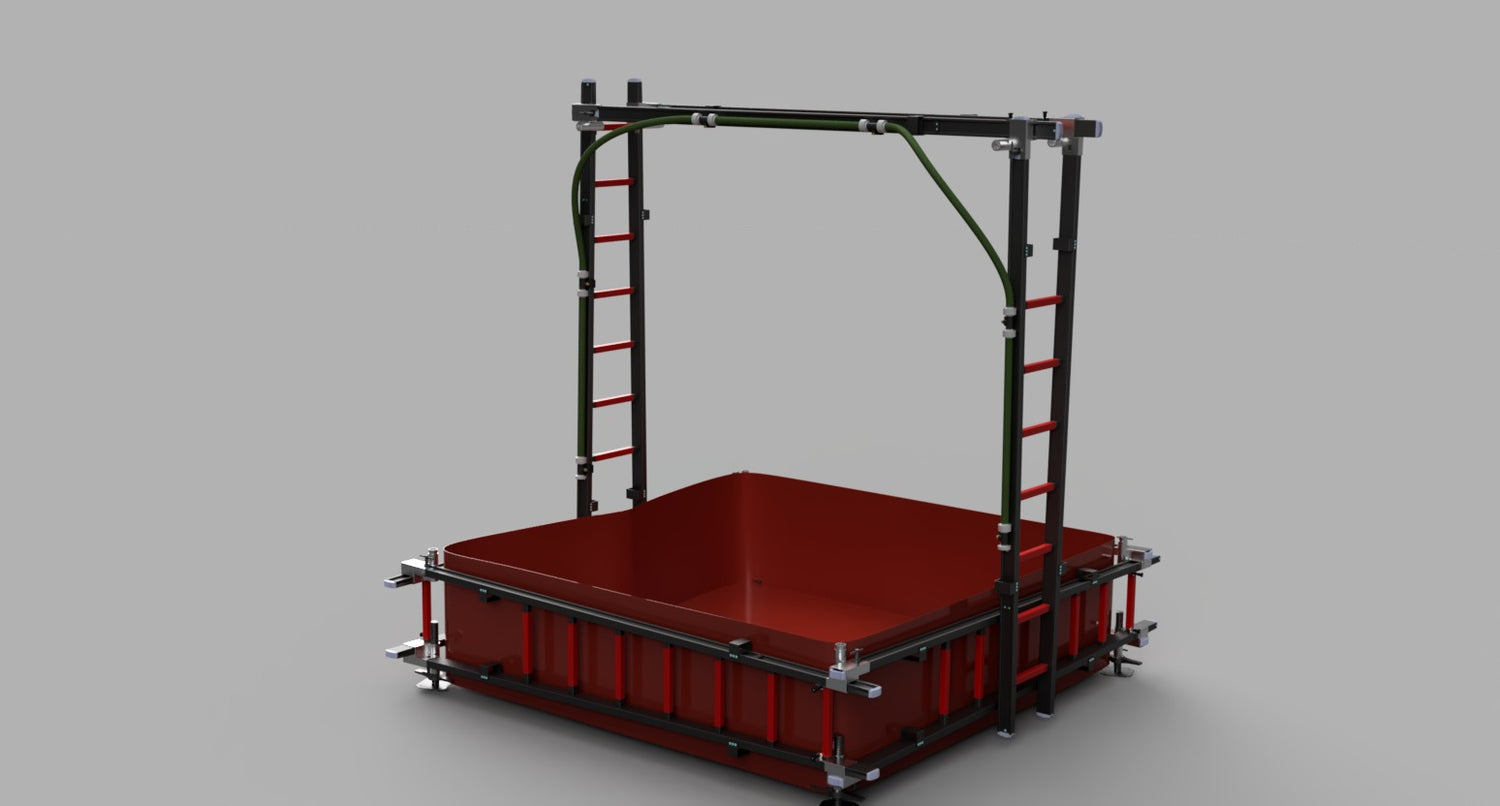

One system, two jobsAfter the incident, the same Kamel® connectors build a decon shower or a vehicle decon lane: equipment that does double duty.
Water tank for rough terrain
Sloping ground, level tank
The height-adjustable supports are standard, not an accessory. They let the Kamel® compensate for uneven terrain and hold its volume where a conventional folding tank wobbles.

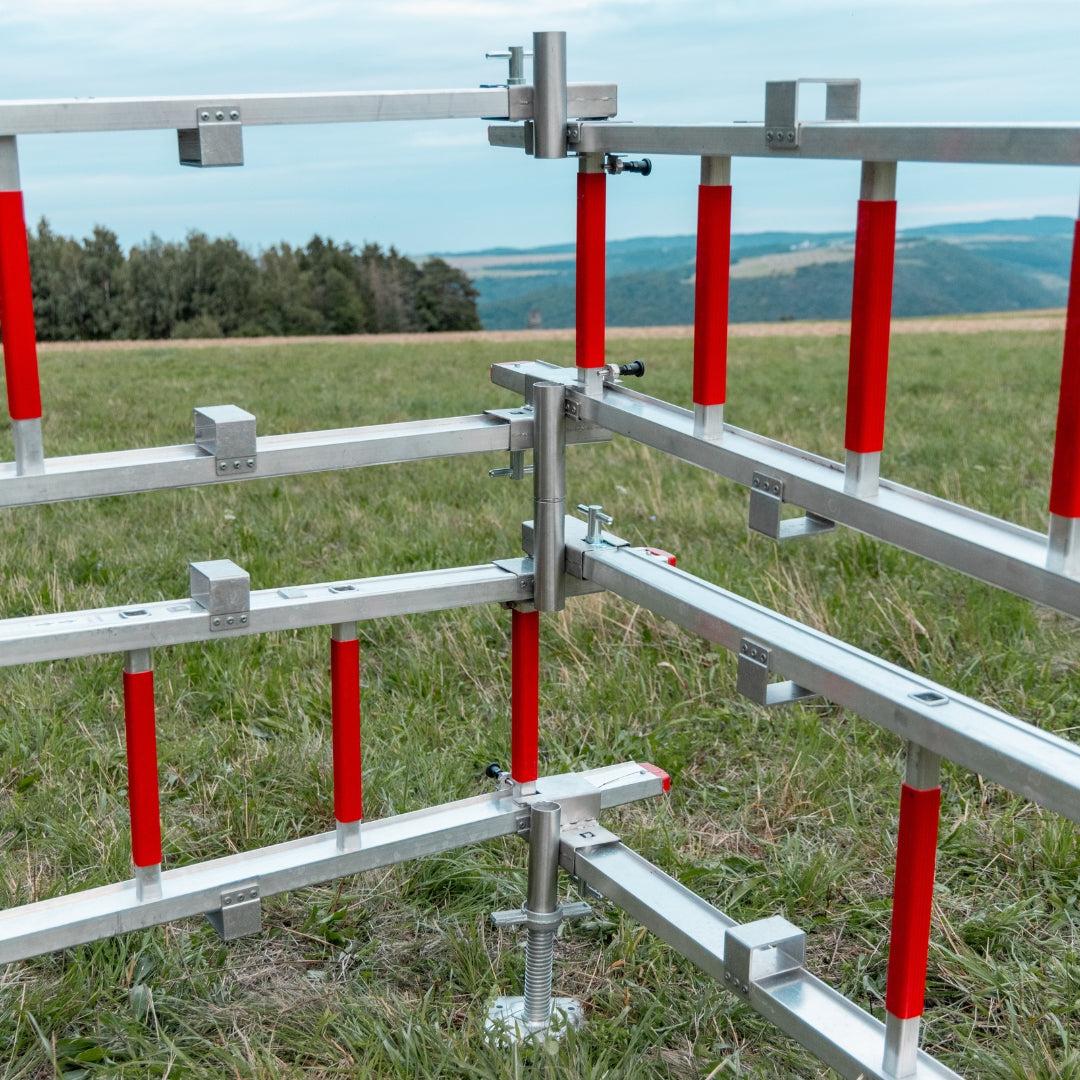

Modular design
All elements fit together
Every connector fits every other one. So you stack two tiers for more volume, and later build the decontamination shower from the same parts.

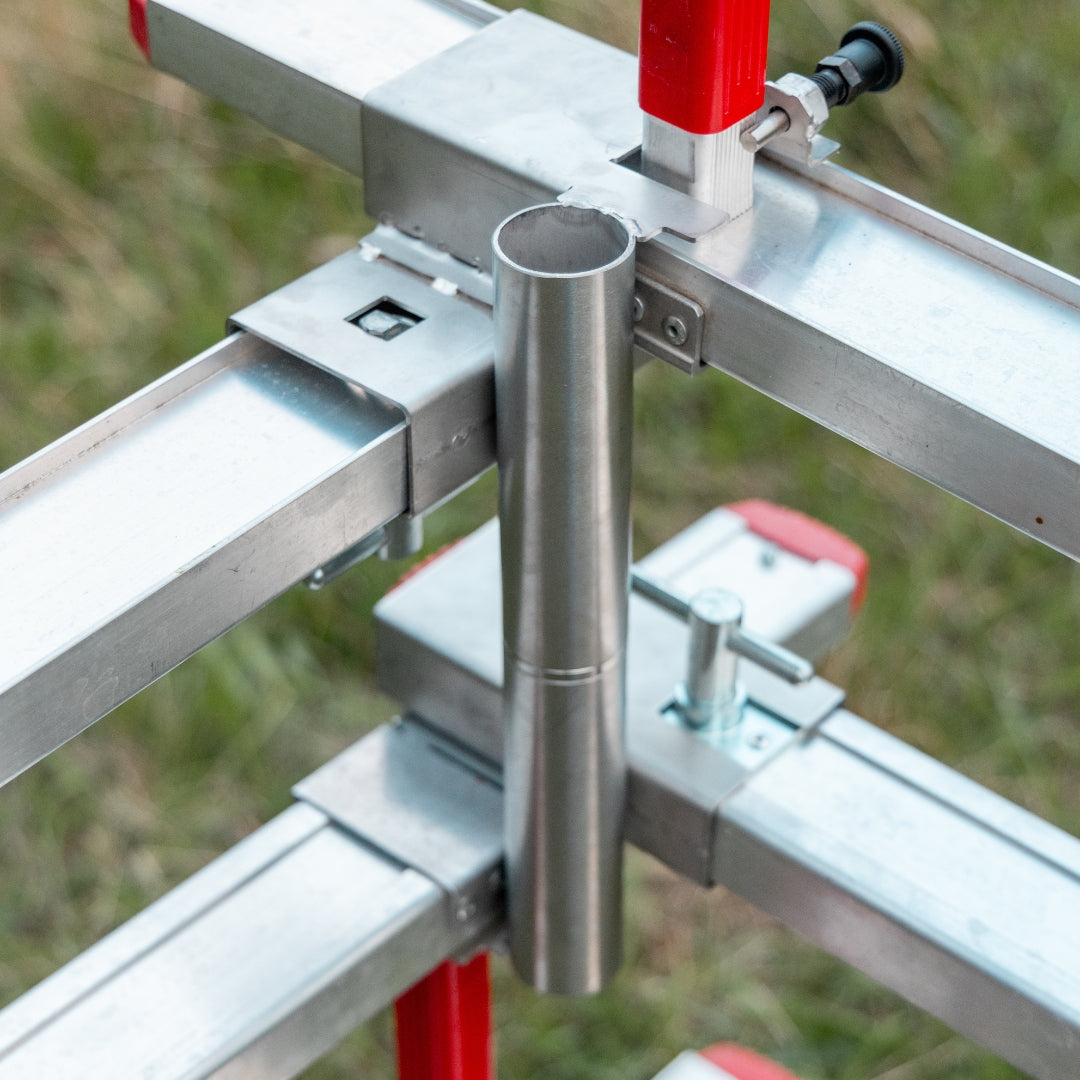

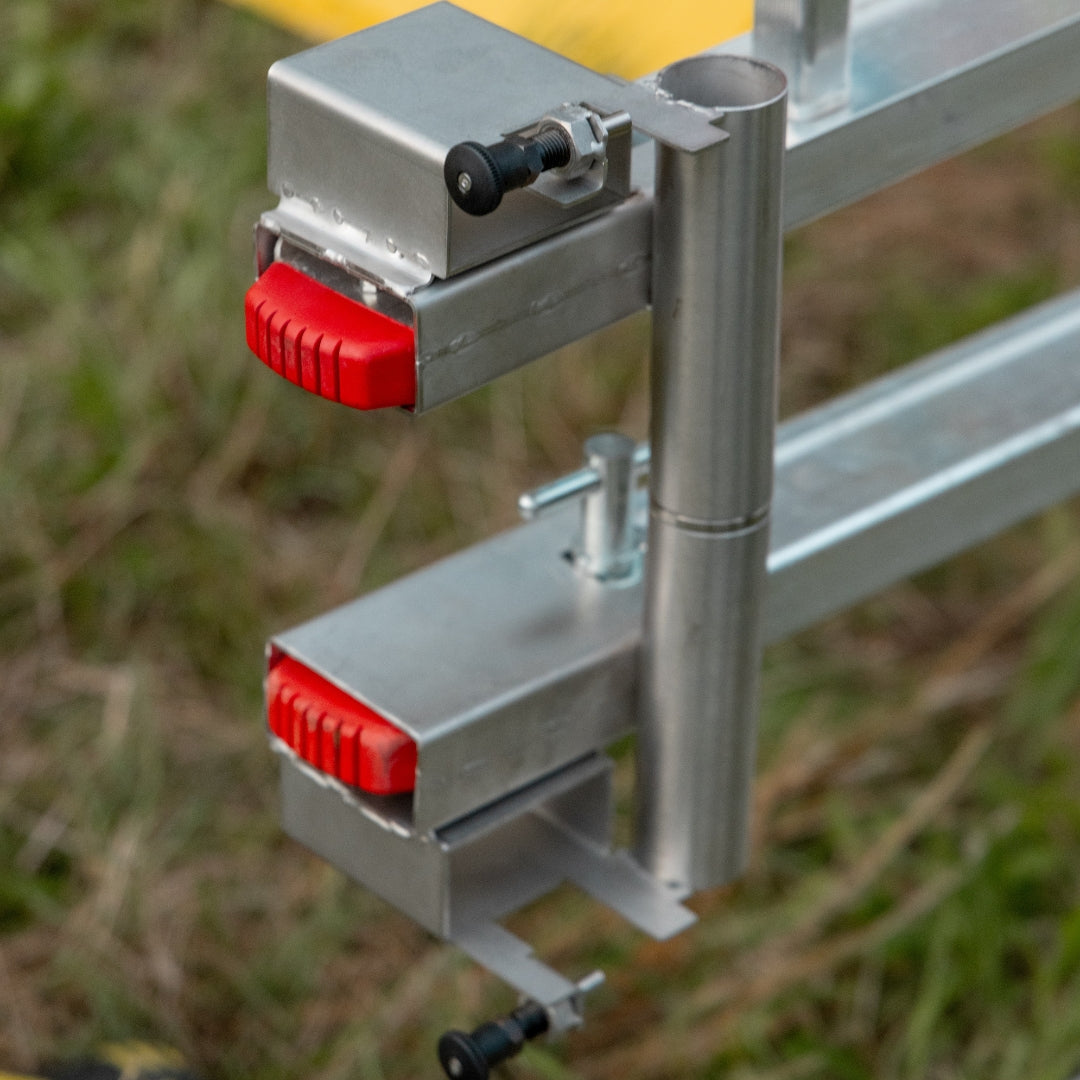

Spring catch and locking pin
Locked in, not knotted
The Kamel® engages the integrated locking pin of your sectional ladders to DIN EN 1147. The connection is positive-locking: nothing wobbles that could work loose under the water load.
Decision guide
Which configuration fits your fire department?
Two decisions: are 3,000 liters from one ladder tier enough, or do you need up to 7,500 liters with two tiers? And should the matching tarpaulin come along right away?
1 ladder tier plus tarp
One tier, complete with tarp
- 3,000 liter capacity
- Matching tarpaulin included
- Kamel® connectors for one ladder tier
2 ladder tiers
Big buffer, no tarp
- Up to 7,500 liter capacity
- Connectors for two stacked tiers
- Up to 8 sectional ladder sections
2 ladder tiers plus tarp
Complete set with tarp
- Up to 7,500 liter capacity
- Matching tarpaulin included
- Connectors for two stacked tiers
All configurations build on your existing sectional ladders to DIN EN 1147. Prices net, excl. VAT.
Technical data
Kamel® in numbers
All figures refer to the Kamel® system with your sectional ladders.
| Capacity (1 ladder tier) | 3,000 l |
|---|---|
| Capacity (2 ladder tiers) | up to 7,500 l |
| Tarpaulin | does not change the capacity |
| Setup time | approx. 3 minutes |
| Transport dimensions | Euro box 60 × 40 × 50 cm |
| Weight | 20 kg |
| Sectional ladder sections | up to 8 (for 2 tiers) |
| Ladder compatibility | Fire department sectional ladders to DIN EN 1147 (locking pins) |
| Sectional ladder section (basis for tank dimensions) | approx. 2.70 m long, approx. 10 kg |
| Connection | positive-locking metal connectors |
| Ground leveling | height-adjustable supports, standard |
| Secondary use | Decon shower and vehicle decon lane from the same connectors |
| Lead time | on request |
Request a quoteReply within 24 h
Rescuevation: As seen in the trade press
Fire departments & municipalities
A quote for your fire department?
We prepare a quote with line items and delivery time, plus purchase on account and XRechnung on request. Reply within 24 hours.
FAQ
Common Kamel® questions
Still have questions?
Call us or write to us: we reply within 24 hours.
How much water does the Kamel® hold?
One ladder tier holds 3,000 liters, two ladder tiers hold up to 7,500 liters. Ordering the tarpaulin as well makes no difference to the capacity.
How long does setup take?
Around 3 minutes, from the Euro box to the standing tank.
Do I need special ladders for the Kamel®?
No. The Kamel® uses the locking pins of fire department sectional ladders to DIN EN 1147: it builds on the ladders your vehicles already carry.
How do I transport the Kamel®?
In a standard Euro box measuring 60 × 40 × 50 cm, at a weight of 20 kg. That makes the Kamel® one of the easiest temporary water stores to stow.
Does the Kamel® stand securely on rough terrain too?
Yes. The height-adjustable supports compensate for uneven terrain, and the sectional ladder sections are coupled by positive-locking metal connectors: nothing depends on loose knots.
Can I use the Kamel® for decontamination?
Yes. The same connectors build a decon shower with retention basin for responders, or a cleaning lane for vehicles, for example in animal disease outbreaks or chemical incidents.
Can you purchase on account?
Yes, for public authorities, municipalities and fire departments, with XRechnung on request.
What is the delivery time?
We tell you the delivery time on request: we reply within 24 hours.
Personal advice
We take the time to give you specific answers to your questions: on configuration, scope of delivery and procurement.
As Managing Director, I make a personal point of being available to you and helping you quickly.
Request a quote
