The Kamel® set
This page: the core of the system
1.999,96 € netto zzgl. MwSt.
- Kamel® connecting elements for the gate arch
- Tool-free, positive-locking connection at the locking pin
- Stowed in a standard Euro box
System overview
What makes up the complete gate?
The Kamel® set supplies the connectors, your sectional ladders build the gate, and the SnakE® system applies the disinfectant solution. So you know what else to add.
Sectional ladders
Already have them: nothing to buy
- Four or eight sectional ladder sections per DIN EN 1147
- Approx. 2.70 m and approx. 10 kg per ladder section
- Two ladders across give approx. 2.40 m of drive-through width
The SnakE® system
Sold separately: applies the solution
- Foam arch over vehicle or person
- Underbody disinfection
- We put the right set together for you
Drive-through tray
Catches the runoff
- For the vehicle decon lane
- Designed to match the gate
- Available on request only
Net price, excl. VAT. Talk to us: we put the right SnakE® set together for you and include it in the quote.
Rescuevation Original

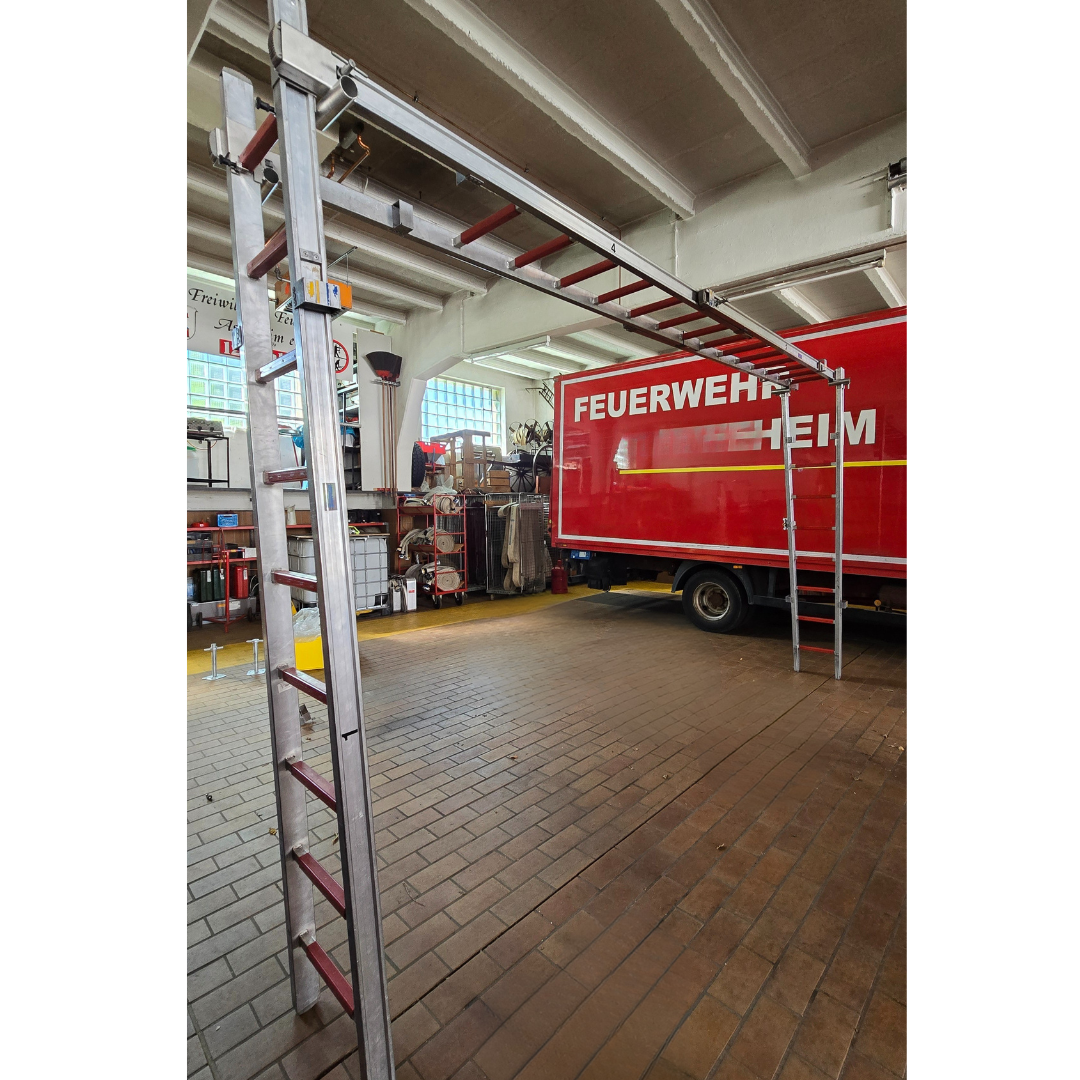

Your sectional ladders become a disinfection gate
A Rescuevation innovation: Kamel® joins standardized sectional ladders into a gate arch without tools. The result is a decon lane for vehicles, a decon shower for crews and foam disinfection with the SnakE® system.
- Rescuevation Original
- As seen in trade press & TV
- DIN EN 1147 compatible
Rescuevation: As seen in the trade press
The difference
Decon lanes so far, and with Kamel®
Fixed decon lanes and custom builds serve exactly one purpose. Kamel® uses what your vehicles already carry: sectional ladders per DIN EN 1147.
Fixed decon lane / custom build
- Nachteil: Dedicated frame or fixed installation for this one purpose only
- Nachteil: Bulky to transport and store
- Nachteil: Tied to a prepared site
Kamel® from sectional ladders
- Vorteil: Builds on sectional ladders your vehicles already carry
- Vorteil: Fits completely in a standard Euro box
- Vorteil: Tool-free setup, positive-locking connection at the locking pin per DIN EN 1147
- Vorteil: Foam arch and underbody disinfection with the SnakE® system (sold separately)
- Vorteil: The same connectors also build the Kamel® folding tank
On request, we also supply the matching drive-through tray.
One gate, three uses
Sectional ladders become a decon lane for vehicles, a decon shower for crews and, with the SnakE® system, a foam disinfection lane.
Outbreak & hazmatVehicle decon laneWash-down arch when many vehicles need fast decontamination, e.g. in an avian influenza H5N1 outbreak.
Post-incident deconDecon shower for crewsShower arch with containment basin, combined with the Kamel® folding tank. →
SnakE® systemFoam arch & underbodyThe SnakE® system (sold separately) lays the disinfectant solution over the vehicle as foam and also reaches the underbody.Setup
From station to disinfection gate
Four steps at the incident scene, with equipment your vehicles carry anyway. The SnakE® is connected while the gate is still lying flat.
-
Join the sectional ladders
Connect four or eight fire department sectional ladder sections per DIN EN 1147 as usual, depending on how large the gate should be.
-
Fit Kamel® connectors
The connectors engage the locking pins without tools and join the ladders into a stable gate arch.
-
Connect the SnakE®
The SnakE® system is mounted and connected while the gate lies flat: foam arch and underbody disinfection are in place before the gate is up.
-
Raise the gate
Only now is the gate arch raised and positioned as a drive-through for vehicles or a walk-through for people.
One system, two jobsThe same Kamel® connectors also build the Kamel® folding tank with up to 7,500 liters: equipment that does double duty.
SnakE® system
Foam from above and below
The SnakE® system handles the liquid application: as a foam arch, it lays the disinfectant solution evenly over vehicle or person. Underbody disinfection also reaches the surfaces nothing can get to from above. The SnakE® system comes separately, and we put the right set together for you.

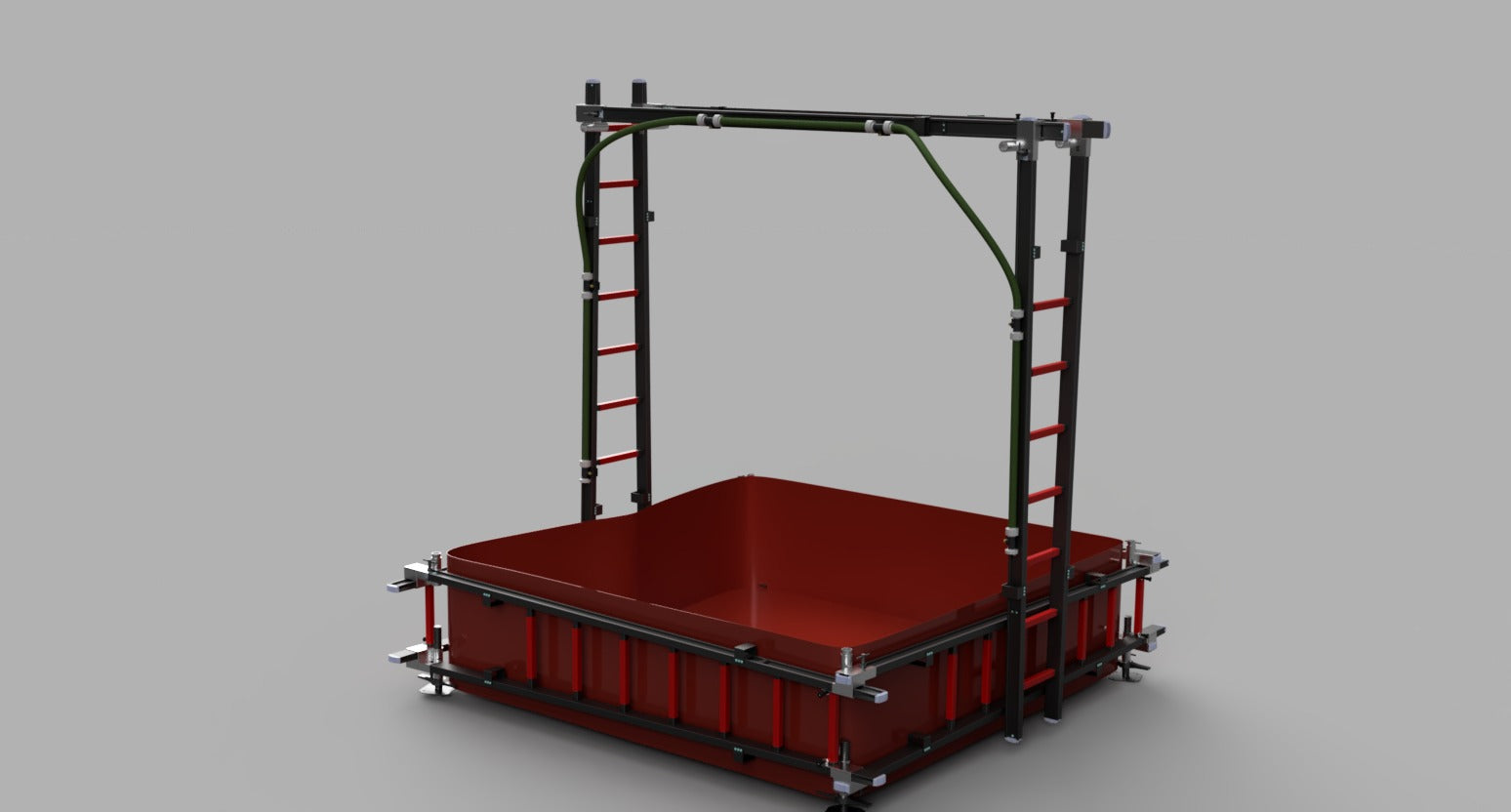

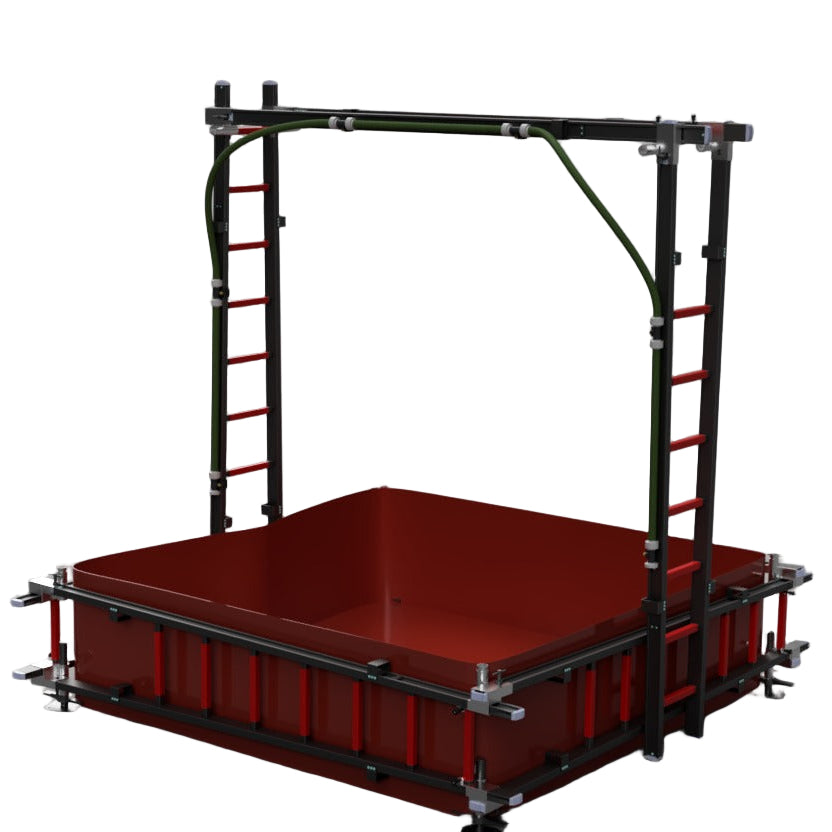

Containment & shower
Better together: gate & folding tank
For personnel decontamination, the Kamel® folding tank forms a containment basin with a shower arch, built from the same connectors. We supply the matching drive-through tray for the vehicle decon lane on request.
Spring catches and locking pins
Positive-locking, not improvised
The Kamel® connectors use the integrated locking pin of fire department sectional ladders per DIN EN 1147: fitted without tools, with no loose knots and no special parts on the ladder.
Talk to someone who knows the gate
Whether four or eight ladder sections, which SnakE® goes with it and whether you need the drive-through tray: we clear that up in ten minutes on the phone.
As Managing Director, I am available to you and will help you quickly.
Technical data
The disinfection gate at a glance
| Function | Disinfection gate for vehicles, decon shower for people, foam disinfection lane |
|---|---|
| Setup options | 4 ladder sections (compact) or 8 ladder sections (large) |
| Drive-through width | approx. 2.40 m with two sectional ladders across |
| Ladder compatibility | Fire department sectional ladders per DIN EN 1147 (locking pins) |
| Sectional ladder lengths (your stock) | 1 section approx. 2.70 m · 2 sections approx. 4.60 m · 3 sections approx. 6.50 m · 4 sections approx. 8.40 m |
| Weight per sectional ladder section | approx. 10 kg |
| Connection | positive-locking metal connectors, tool-free |
| Application | SnakE® system (sold separately): foam arch and underbody disinfection |
| Kamel® set contents | Kamel® connecting elements for the gate arch (sectional ladders and SnakE® separate) |
| Transport | fits completely in a standard Euro box |
| Add-ons | Drive-through tray, on request only |
Request a quoteReply within 24 h
Fire departments & municipalities
A quote for your fire department?
We prepare a quote for your tender, with purchase on account and XRechnung on request. Reply within 24 hours.
FAQ
FAQs about the disinfection gate
Still have questions?
Call us or write to us: we reply within 24 hours.
Which ladders do I need for the disinfection gate?
Standard fire department sectional ladders per DIN EN 1147. The gate is built from four or eight ladder sections, and the Kamel® connectors engage the integrated locking pins. One ladder section measures approx. 2.70 m and weighs approx. 10 kg.
How wide is the drive-through?
With two sectional ladders across, approx. 2.40 m of drive-through width is available, enough for typical fire apparatus.
What do I use the Kamel® disinfection gate for?
As a drive-through decon lane for vehicles during animal disease outbreaks such as avian influenza H5N1 or after chemical incidents, as a decon shower for people and as a foam disinfection lane with foam arch and underbody disinfection.
Is the SnakE® system included in the delivery?
The SnakE® system is added to the disinfection gate separately. Talk to us: we put the right set together for you and include it in the quote.
In what order do I set up the gate?
First join the sectional ladder sections and fit the Kamel® connectors, then connect the SnakE® system to the gate while it is still lying flat, and finally raise the gate arch.
What happens to the runoff liquid?
We supply the matching drive-through tray on request. For personnel decontamination, the Kamel® folding tank forms a containment basin with a shower arch.
How do I transport the disinfection gate?
The entire system fits completely in a standard Euro box: quick to load, quick to the scene.
Can you purchase on account?
Yes, for public authorities, municipalities and fire departments, with XRechnung on request.
Can I get a quote for my tender?
Yes. Request a quote via the form: we reply within 24 hours.
Procurement
Request a quote
Tell us what you want to use the gate for: we price in the right SnakE® set and send you a quote for your tender.
Reply within 24 hours.
