Protection & decon
SnakE® · Structure protection & vegetation fire
Keeps your protective line wet, day and night, with no responder on the nozzle. For structure protection, holding lines and mop-up.
vfdb Excellence Award 2025 for SnakE®Awarded by an expert fire department jury
≈ 64 m Schutzlinie4 Kreisregner
2.494,00 € netto
2.967,86 € inkl. 19 % MwSt. · zzgl. Versand
Plan your line
Enter the length. The top view shows to scale how many rotary sprinklers you need and which set fits. Above 88 m, the planner works out the most efficient combination.
Calculation: secured protective line ≈ (number − 1) × 12 m sprinkler spacing + 28 m spray circle of the two end sprinklers. 12 m = 15 m D hose minus approx. 1.5 m per side for connection and routing (manufacturer recommendation). Spray circle Ø 28 m at 4 bar, water demand per sprinkler approx. 4-24 l/min in the recommended pressure range of 1-4 bar, setup approx. 2 minutes per position.
Passt zu 60 m

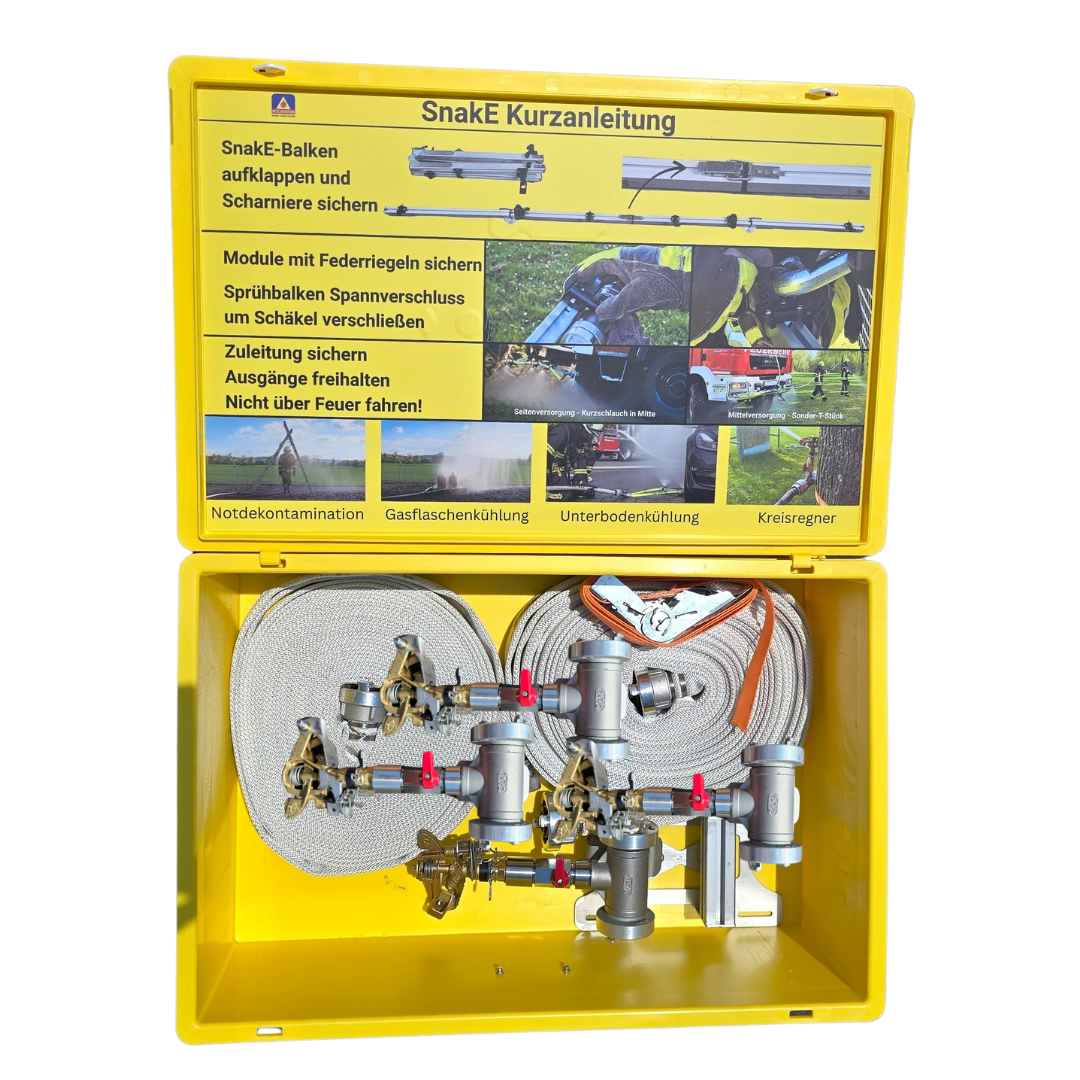

4er-Set
2.494,00 € netto
Request a quoteWe copy the set or combination and the length into the form.
Im Kaufbereich übernehmen und ergänzenHow it unfolds
Three phases, one set of equipment: from the holding line through property protection to the mop-up phase, the rotary sprinkler holds the line so that no building is lost.
52-88 mContinuous protective line
If the fire front is heading for buildings, you place the rotary sprinklers at 12 m intervals between the fire and the property, on a tree or on the stand. From 2 bar they rotate on their own and lay down a continuous water wall.
0Responders tied up at the nozzle
You protect buildings, industrial halls and tank farms with straps directly on the structure: facades and roofs are wetted down vertically and stay wet throughout. Your crews keep their distance from the heat zone.
All night longNo personnel tied up
Once the fire is out, the sprinklers keep the area wet and prevent rekindling and root fires, all night long. Less water evaporates in the dark, and the water soaks deeper into the ground.
The bottom line
Awarded and in service
vfdb Excellence Award 2025
for the SnakE® modular extinguishing system
The vfdb, the German Fire Protection Association, honors innovations in fire protection every year. Its jury includes experts from career fire departments, universities and research institutes.
The rotary sprinkler is one of the SnakE® modules.
Highlighted by the jury
Voices from fire departments that use SnakE®Said about the SnakE® spray bar, which works with the same modules.
A team used to have to walk alongside the vehicle with the nozzle in sweltering heat. Today the crew members stay in the vehicle, a driver and pump operator are enough. That takes a real load off our people.
Unfold it, hang it on the shackles, water on. At the first drill the bar was ready for action in under three minutes, with no tools and no manual in hand.
One Euro box, that's all the space the complete wildfire retrofit needs. We even had a free compartment for it on our TSF-W.
KfW Award GründenRescuevation, awarded by Germany’s largest development bank
As seen in
Versatile mounting
The same rotary sprinklers work on a tree, on the stand, on a facade or in line, and you decide at the incident scene.

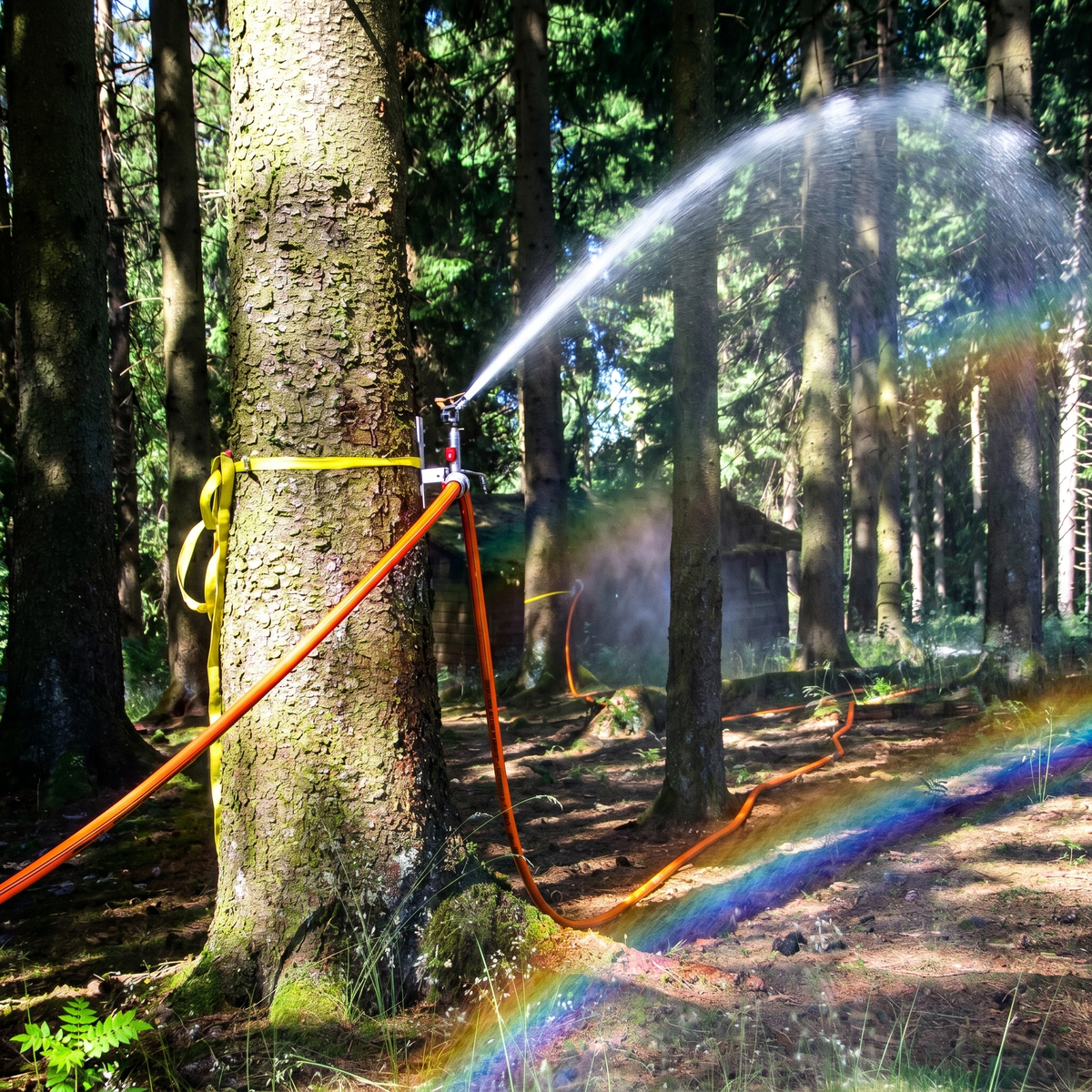

For steep areas and slopes: the sprinkler is strapped to the trunk and waters reliably even on a gradient, the lightest rotary sprinkler system for tree mounting.
Typisch: Hillside, steep and mountain areas, rough terrain

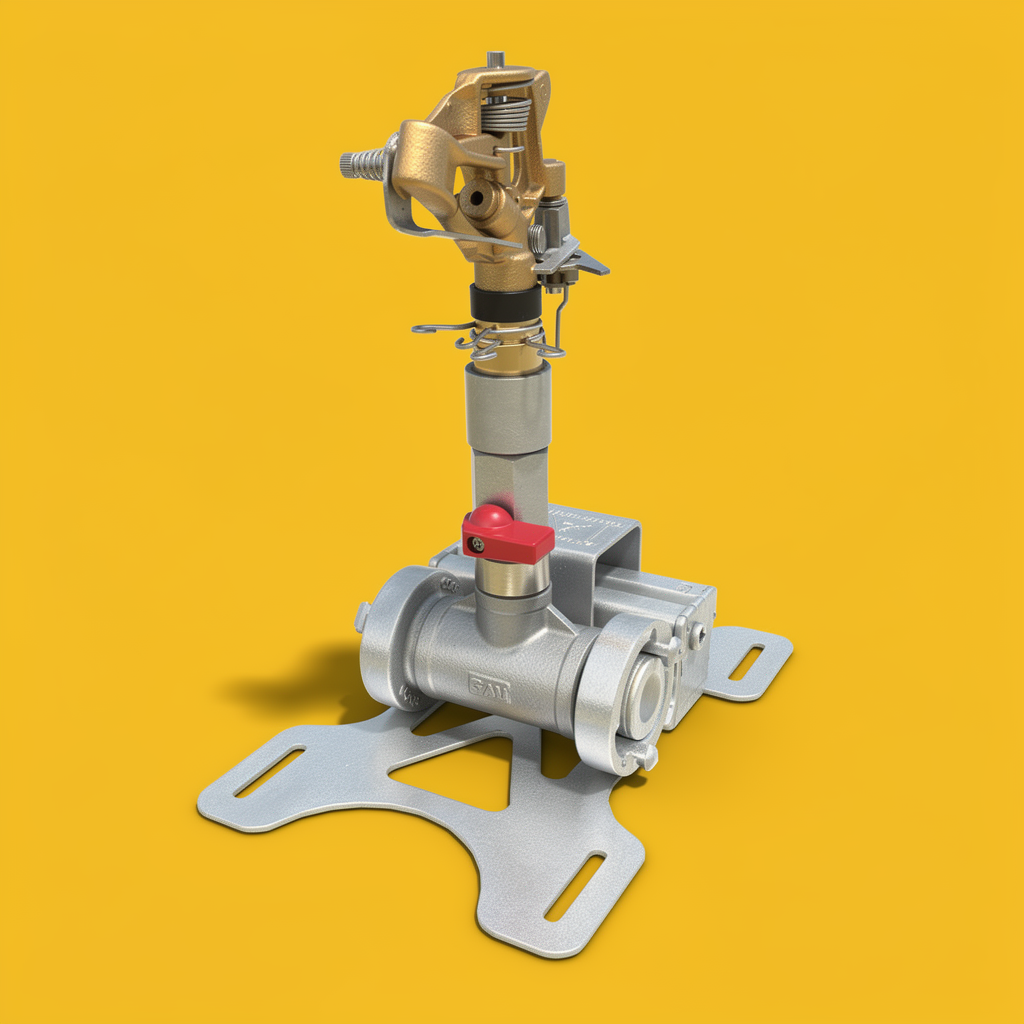

Freestanding on open ground, firebreaks and paths: set at 12 m intervals, the sprinklers form a continuous water wall that holds back the spread.
Typisch: Holding line along firebreaks, paths and railway embankments
A strap around a beam, railing or fence post is all it takes: the sprinkler sits on any load-bearing structure within minutes and comes off just as quickly when you change position.
Typisch: Protective line in front of residential areas (wildland-urban interface), industrial halls, tank farms
Coupled from sprinkler to sprinkler with pre-assembled D hoses and modularly expandable: this is how you divide large affected areas into sectors and hold protective lines with minimal personnel.
Typisch: Holding line, sectoring large affected areas
Built for the field

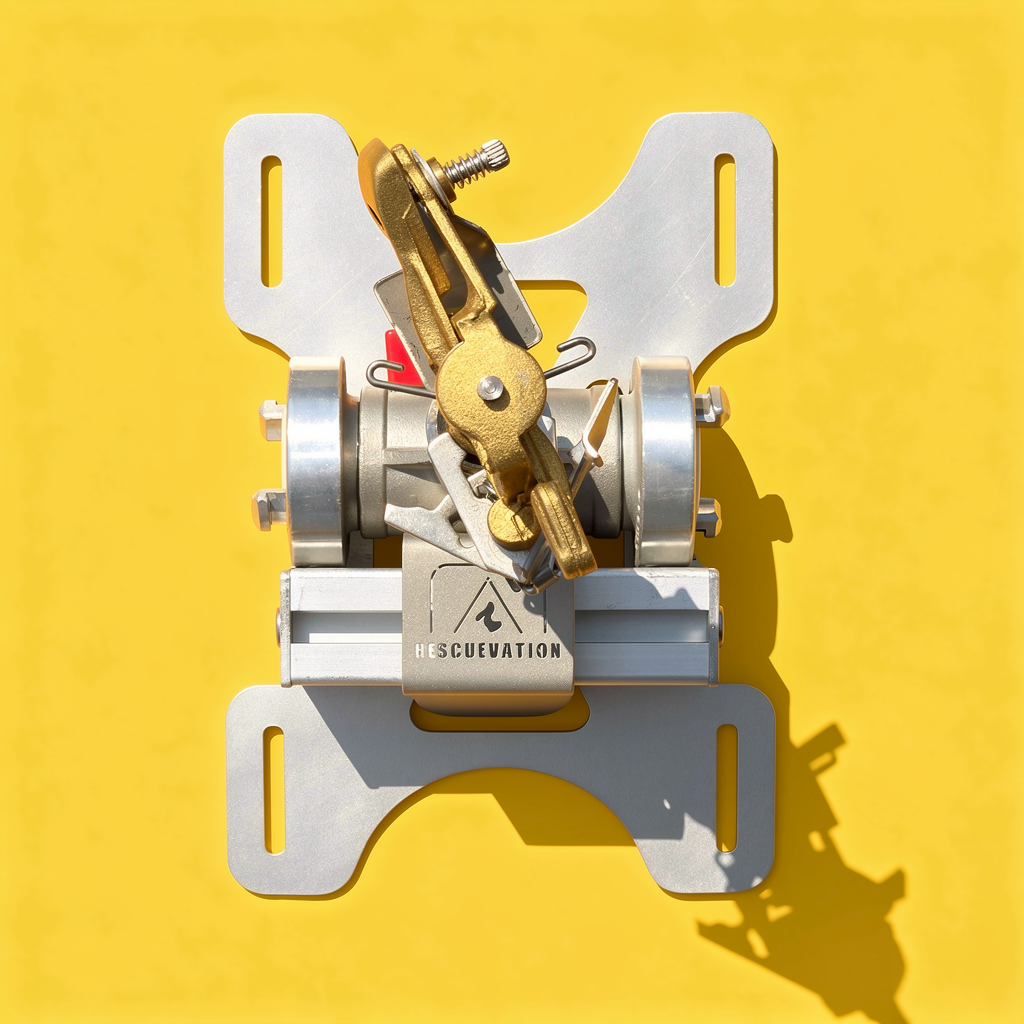

Stainless steel, brass and anodized aluminum: the rotary sprinkler is built for soot, extinguishing water and transport in the field. Developed and manufactured in Germany.
Step by step

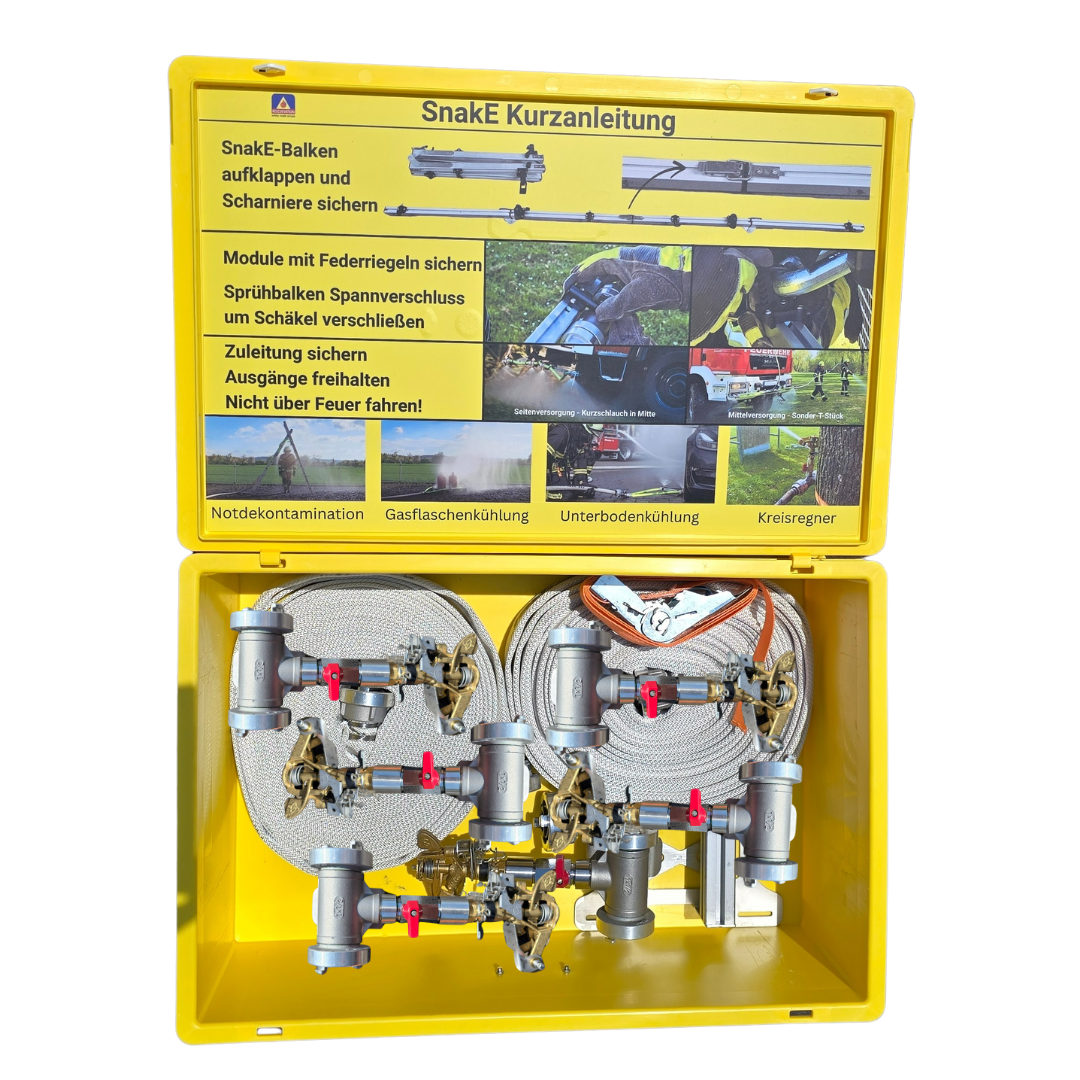

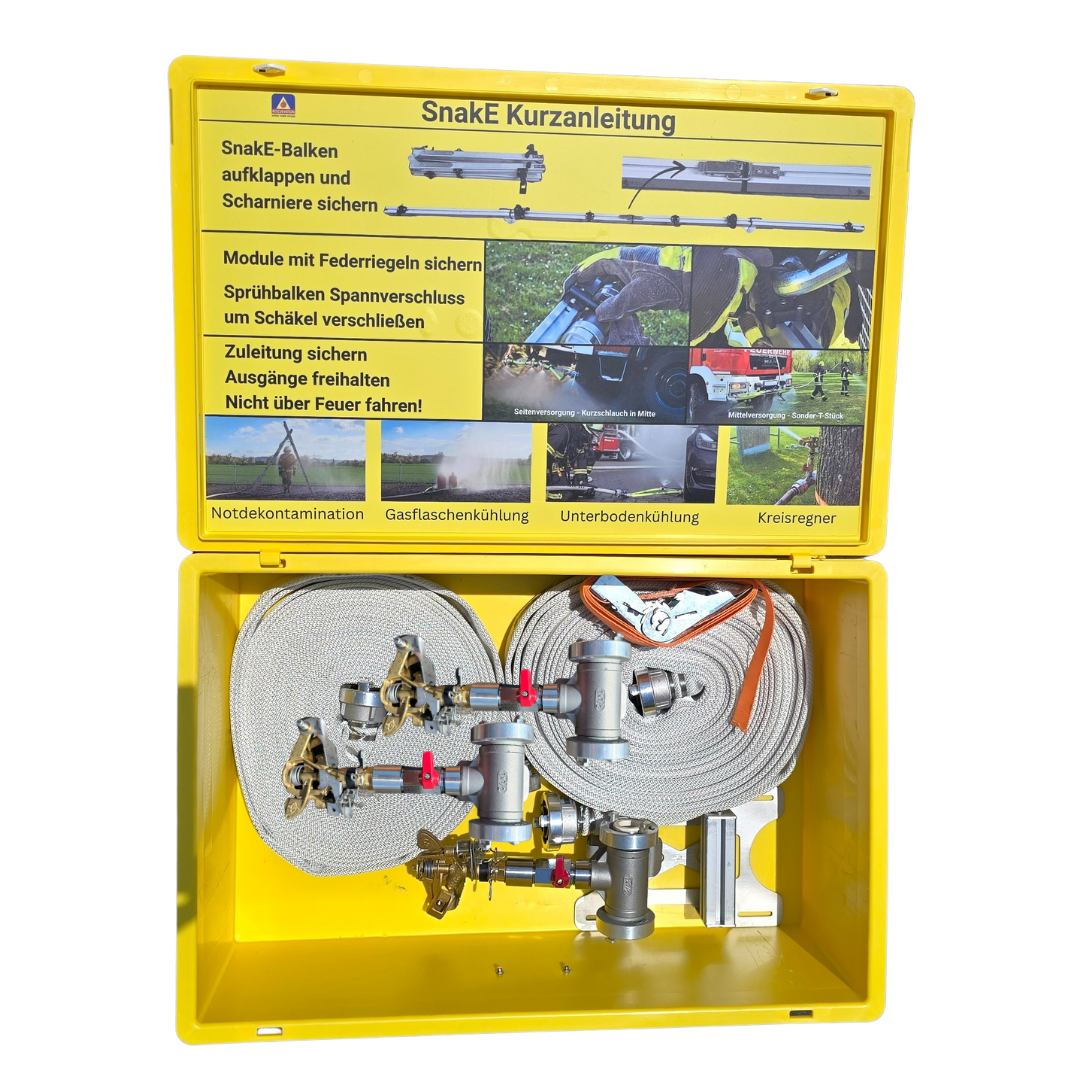

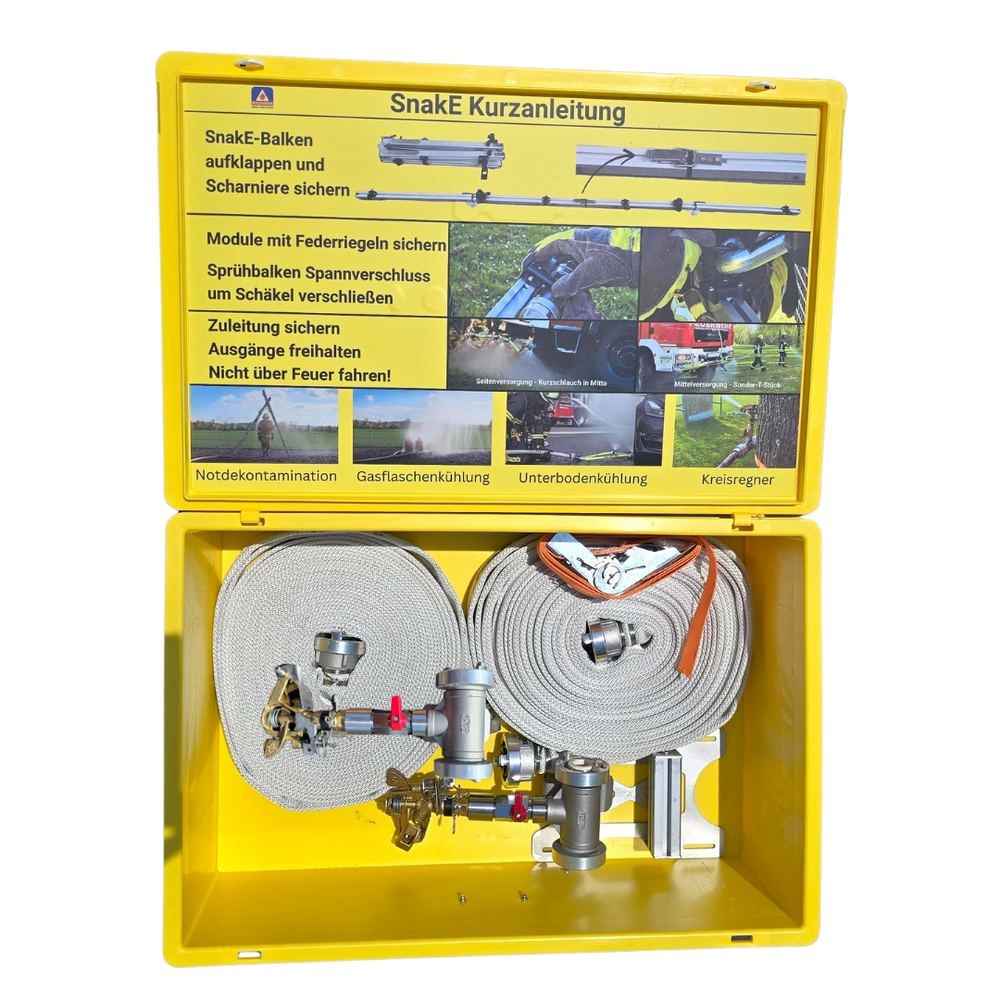

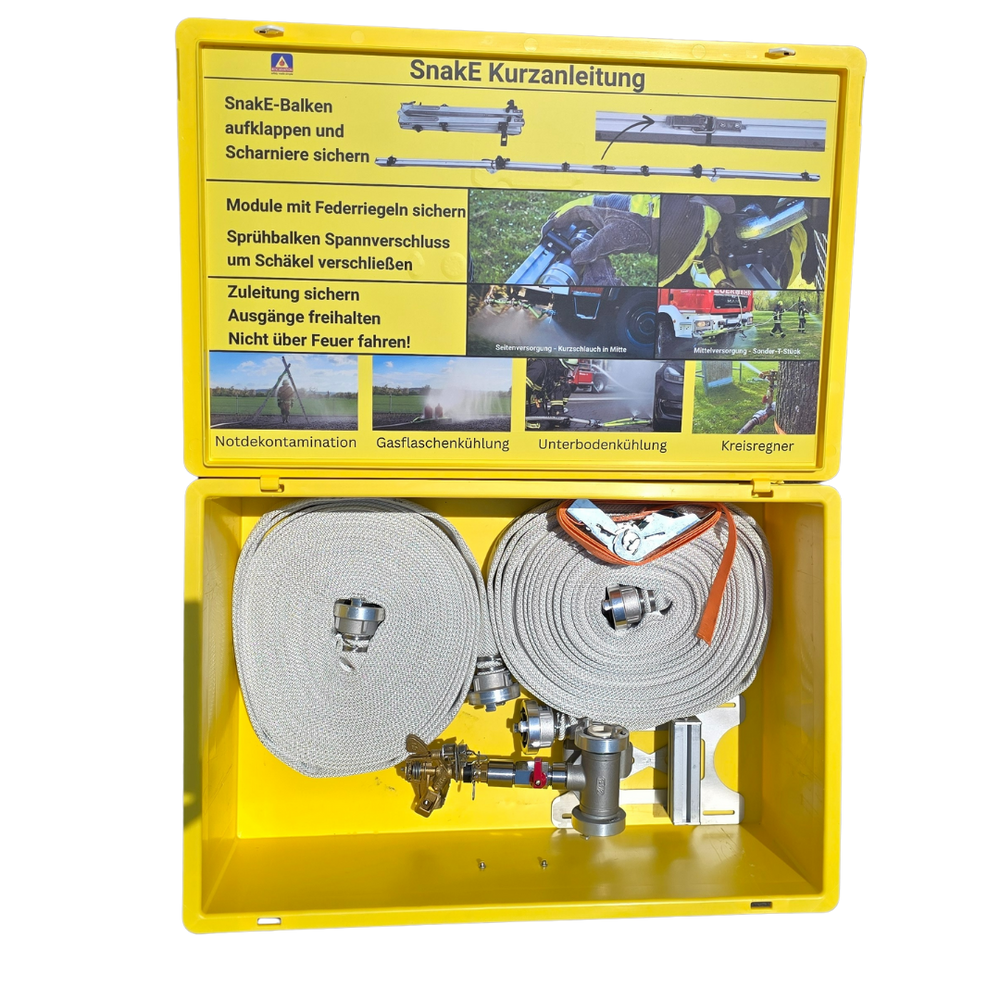

Four steps from the Euro box to a running water wall, approx. 2 minutes per position.
One sprinkler every 12 m along your protective line: on a tree, on the stand or strapped to the structure. The 15 m D hose leaves you around 1.5 m of slack per side for connection and routing.

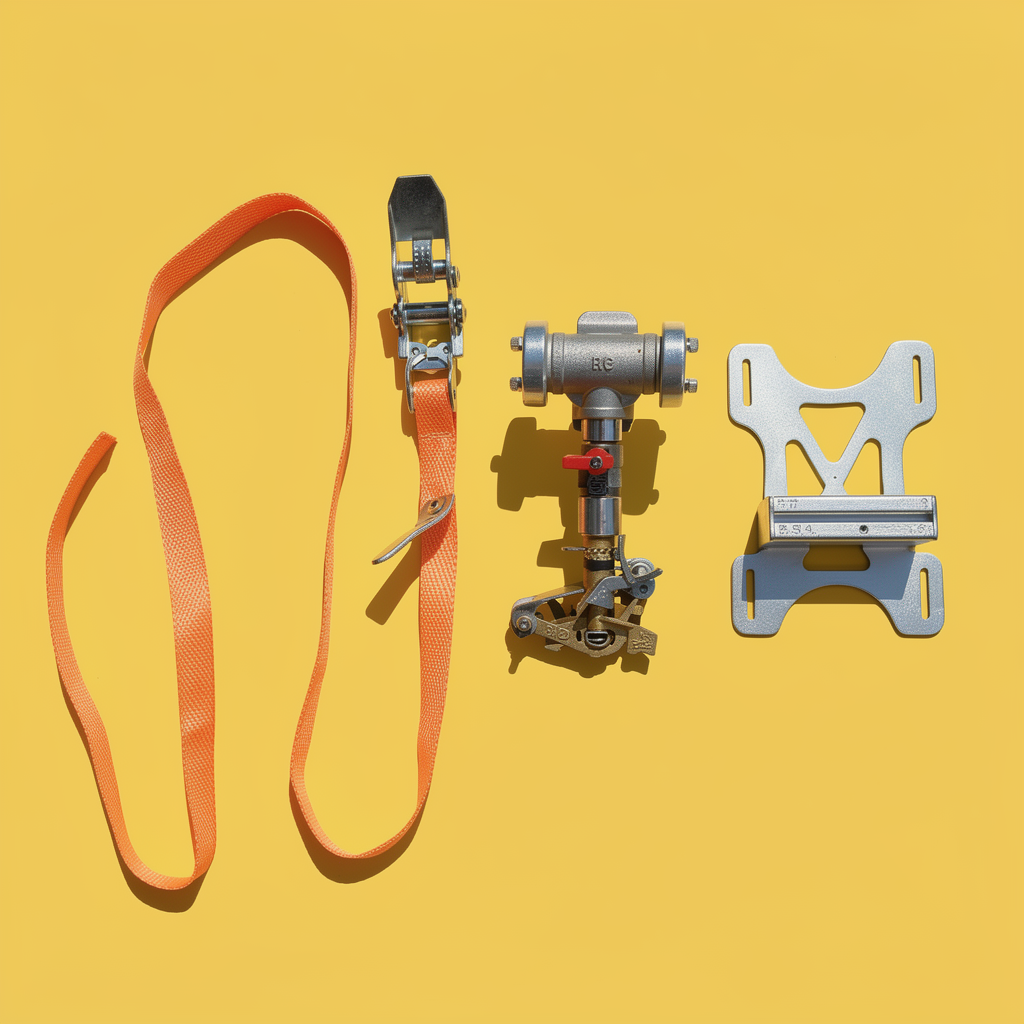

Tighten the strap around the trunk or structure, or set up the stand, tool-free, by one person.
Link the sprinklers with the pre-assembled 15 m D hoses and connect them to the water supply.
Flip the wire lever: full circle or part circle, with the sector adjustable from 20° to 360°. Wire clips limit the sector, while the deflector and the diffuser screw set the throw height and spray width, all by hand.
Deployment tipLet the sprinklers keep running at night: less water evaporates in the dark, so the water soaks deeper into the ground and secures the area more efficiently.
Add to your system
Three products that work with the rotary sprinkler set: getting water into the line, boosting the wetting effect, protecting the vehicle itself.

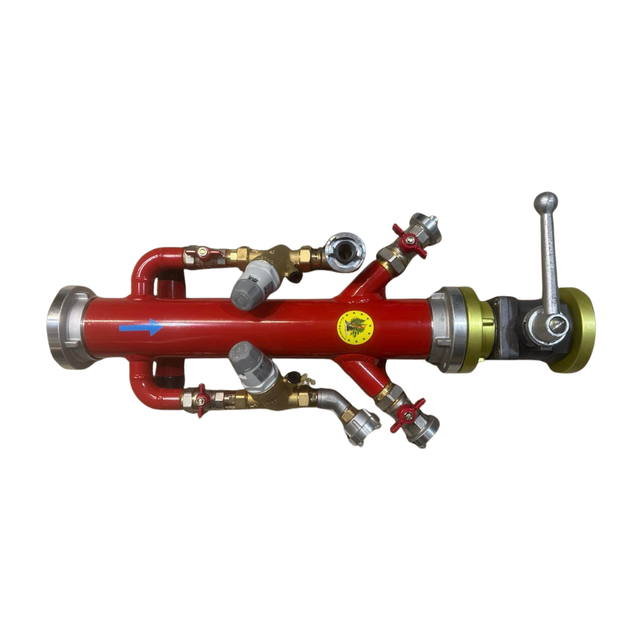

Couples into the B supply line and delivers water while the supply keeps running: two Storz D outlets, an integrated sprinkler with pressure reducer and a pressure outlet for external sprinklers.
Feeds your rotary sprinkler line via the D outlets
869,31 € netto

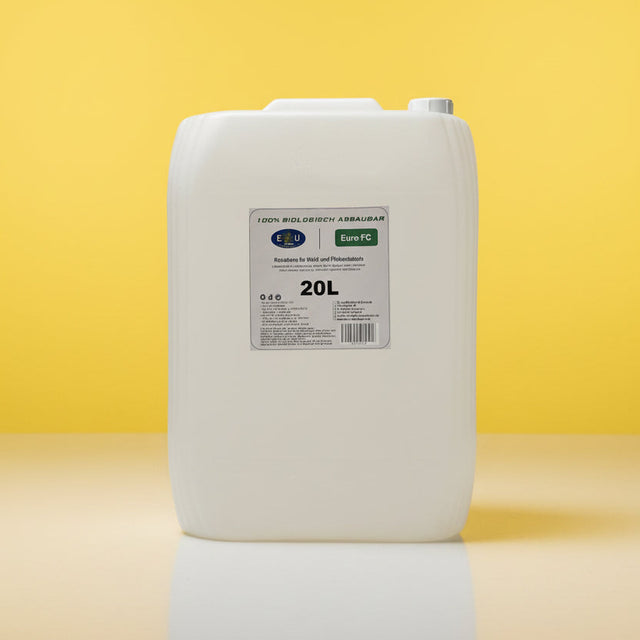

In den Warenkorb Request a quoteMixed into the extinguishing water, typically at 0.5 to 3%. Forms a thermal barrier and delays ignition. 100% biodegradable.
Stationary application to ground and property via the rotary sprinkler
from197,12 € netto · 20 l canister

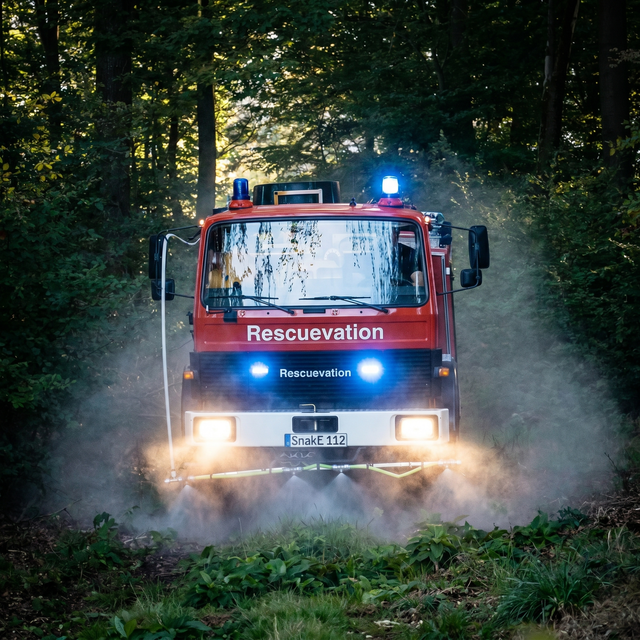

In den Warenkorb Request a quoteUpgrades pump-and-roll-capable vehicles: the bar lays the wet line while driving, attached tool-free to the DIN shackles.
The same SnakE® modules, one Euro box
2.226,89 € netto
In den Warenkorb Request a quoteFor procurement
Manufacturer's data (as of 06/2026).
| System connection | Storz D (25 mm) |
|---|---|
| Nozzle connection | 1/2 inch male thread |
| Nozzle material | Brass |
| Nozzle size | 4 mm |
| Sector range | 20°-360°, adjustable without tools |
| Throw | up to 14 m (Ø 28 m) at 4 bar |
| Sprinkler spacing in line | 12 m effective (15 m hose, approx. 1.5 m per side for the connection) |
| Water consumption per sprinkler | approx. 240-1,440 l/h (4-24 l/min) |
| Recommended pressure range | 1-4 bar |
| Nozzle dimensions | approx. 13 × 12 cm |
| Nozzle weight | approx. 220 g |
| Complete sprinkler weight | approx. 800 g (incl. mount) |
| Module & mount material | Module V4A stainless steel, mount anodized AlMg4.5Mn aluminum |
| Coupling material | Aluminum Storz D |
| Euro box dimensions (set) | 60 × 40 × 19 cm |
Before procurement
Direct line
We help with sizing and procurement, from the sprinkler spacing to the quote for the municipal finance office.
Weight and coupling. A C (52 mm) length weighs several times as much as a D length. One responder carries several D lengths plus a rotary sprinkler uphill and through undergrowth, without tying up a second team to carry hose. Storz D is standardized, so every D length already on the vehicle fits.
Experience shows that around 1.5 m of hose per side is lost at the incident scene to connection and routing. That is why you plan with an effective sprinkler spacing of 12 m: this keeps the water wall unbroken even when you route the hose around vegetation or terrain features.
Flipping the wire lever switches between full circle and part circle, with the sector adjustable from 20° to 360°. The two wire clips on the pipe section limit the sector, the deflector regulates the throw height and the diffuser screw the spray width, all by hand without tools.
The recommended range is 1-4 bar. From 2 bar, the sprinkler rotates on its own and automatically reverses its direction of rotation at the set end points.
No, operation spares personnel. After setup, approx. 2 minutes per position, the sprinkler delivers water continuously, overnight too. One responder observes from a safe distance and checks the water supply and sector at regular intervals.
Yes. Using the standard D hoses, you extend any protective line modularly, with single rotary sprinklers or another set.
Yes. That is exactly what the set is designed for: with straps you fix the sprinklers directly to the facade, carport or roof edge and keep the structure wet continuously. This creates a protective line in front of residential buildings (wildland-urban interface) while your teams work at the front.
Yes. The rotary sprinkler nozzle continuously applies water to threatened gas cylinders from a distance. This means no responder has to stay in the hazard zone for long, a clear safety gain with acetylene cylinders in particular.
The Wildfire Wye Twin with two Storz D outlets for the water supply from the B line, Retardant Euro-FC for mixing in and the SnakE® spray bar for vehicle self-protection. You can add everything to your order right here.
