SnakE®: the modular extinguishing system as a retrofit spray bar
Retrofit your vehicle for wildfires, in under 3 minutes

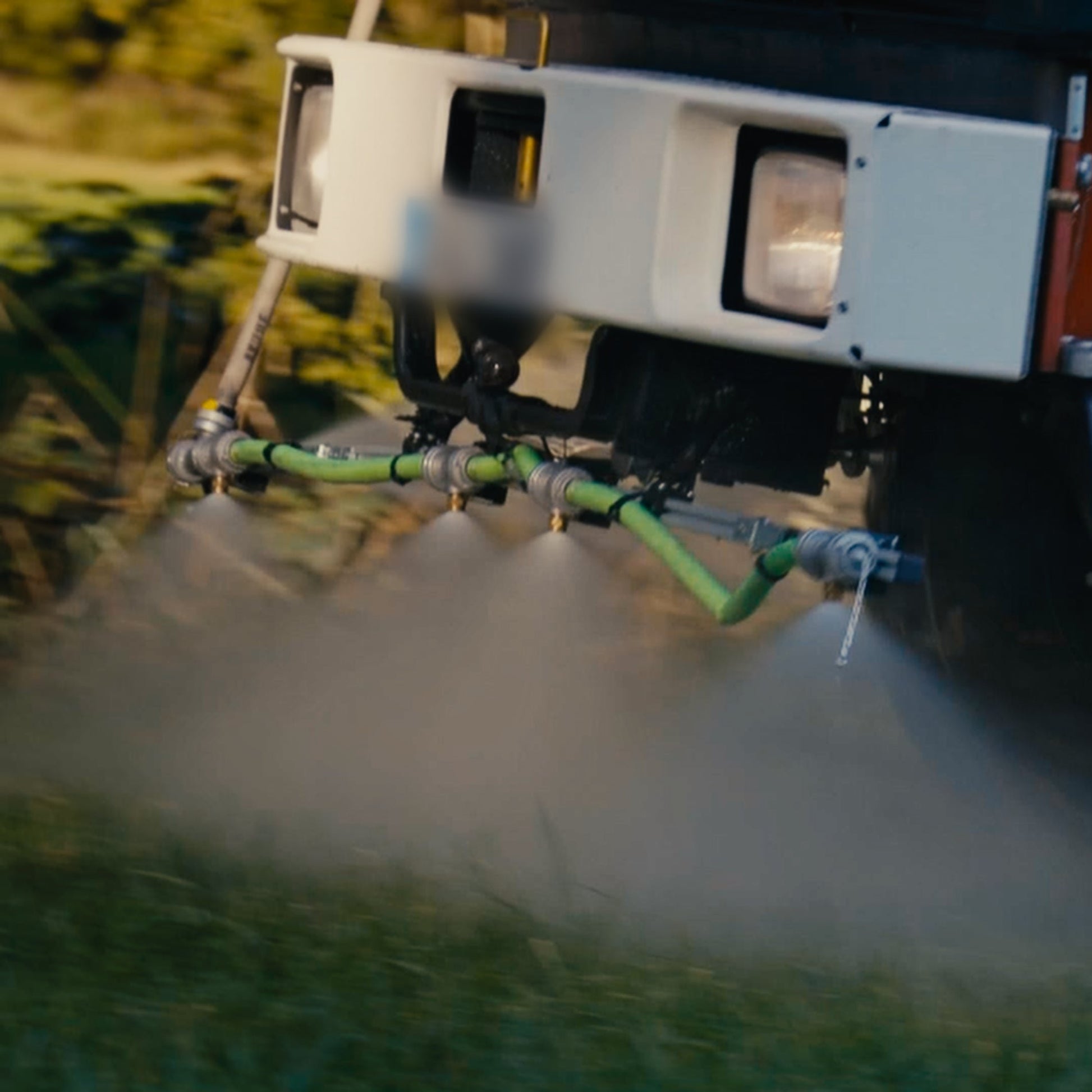

The SnakE® spray bar set is the standalone complete wildfire set for fire departments without an existing SnakE® system. You unfold the bar, adjust it once to the width of your shackles and hang it in tool-free, at the front or rear, from TSF-W to TLF. After that, your vehicle lays wet lines while the crew stays in the vehicle.
✅ Tool-free on the DIN shackles: front or rear, adjusted once to shackle width, then ready for action
✅ Conversion in under 3 minutes: unfold, hang in, couple to the Storz D (25 mm) supply line
✅ 2.25 m spray width unfolded, folded 0.56 m, total weight only 6 kg
✅ 4 nozzles at approx. 20 l/min each on the Storz D connection: combines with your existing D hose equipment
✅ Standalone complete set: no SnakE® base system needed, nozzles and supply line included
✅ All in one Euro box (60 × 40 × 19 cm): every vehicle has room for that
Contain the vegetation fire before it grows

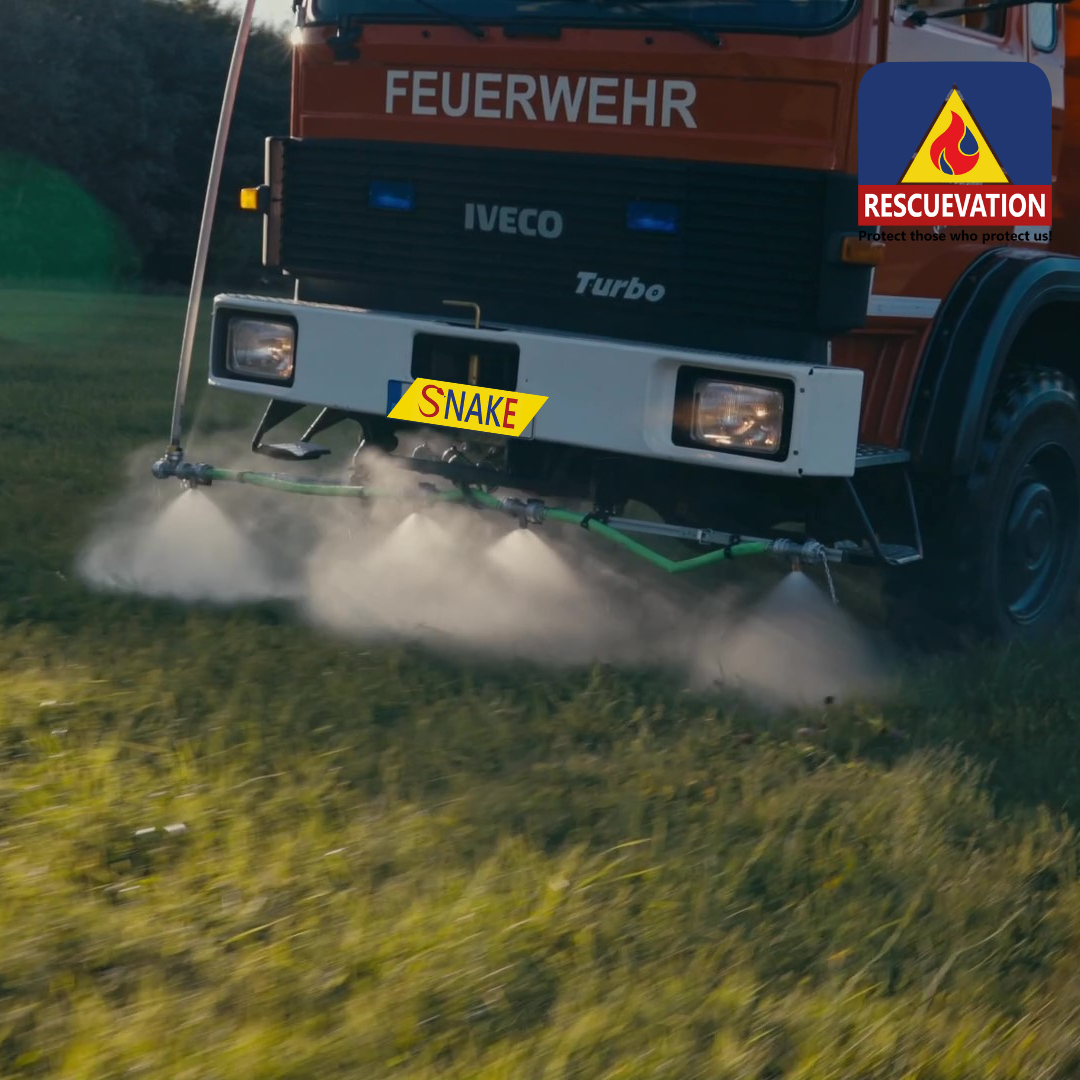

With the spray bar you lay an even wet line while driving slowly and wet firebreaks, without a team in PPE having to walk alongside the vehicle.
Outside spray bar deployments the SnakE® modules remain freely usable: you also use the same nozzle modules as a rotary sprinkler for structure protection and mop-up.
In the box
In the box
- Plastic Euro box with hinged lid 60 × 40 × 19 cm
- 4 nozzle clamps with nozzles
- 1 supply line with filter
- 4 connecting hoses
- Wildfire spray bar
Why retrofit instead of buying new?
A spray bar retrofit for your existing pump-and-roll-capable vehicles: no waiting for the next vehicle procurement. The direct comparison:
| Kriterium | SnakE® spray bar | Conventional pump and roll | Built-in system |
|---|---|---|---|
| Retrofits existing vehicles | Ja. tool-free on DIN shackles | Ja. | Nein. only when buying new |
| Crew stays in the vehicle | Ja. | Nein. team walks alongside in PPE | Ja. |
| Low strain & accident risk | Ja. | Nein. heat, near the fire | Ja. |
| Setup time | under 3 minutes | instant, ties up a team in PPE | n/a (built in) |
| Acquisition cost | low | low | high |
| Multi-use (EV, rotary sprinkler, decon) | Ja. modular | Nein. | Nein. |
| Stowability | folds to Euro box size | n/a | fixed in place |
Setup
Operational in under 3 minutes
Five steps, no tools: from unpacking to driving off, with minimal personnel.
-
Clip modules on
Clamp the nozzle modules onto the folding bar and secure them with the spring catches.
-
Couple up
Couple the modules with pre-assembled D hoses for an optimal spray pattern.
-
Mount on the vehicle
Lock it tool-free onto the DIN shackles using the elastic mounts.
-
Connect the water
Central supply line via Storz D (25 mm): the doors always stay clear.
-
Drive off
Wet the firebreak and contain the spread, right from the vehicle.

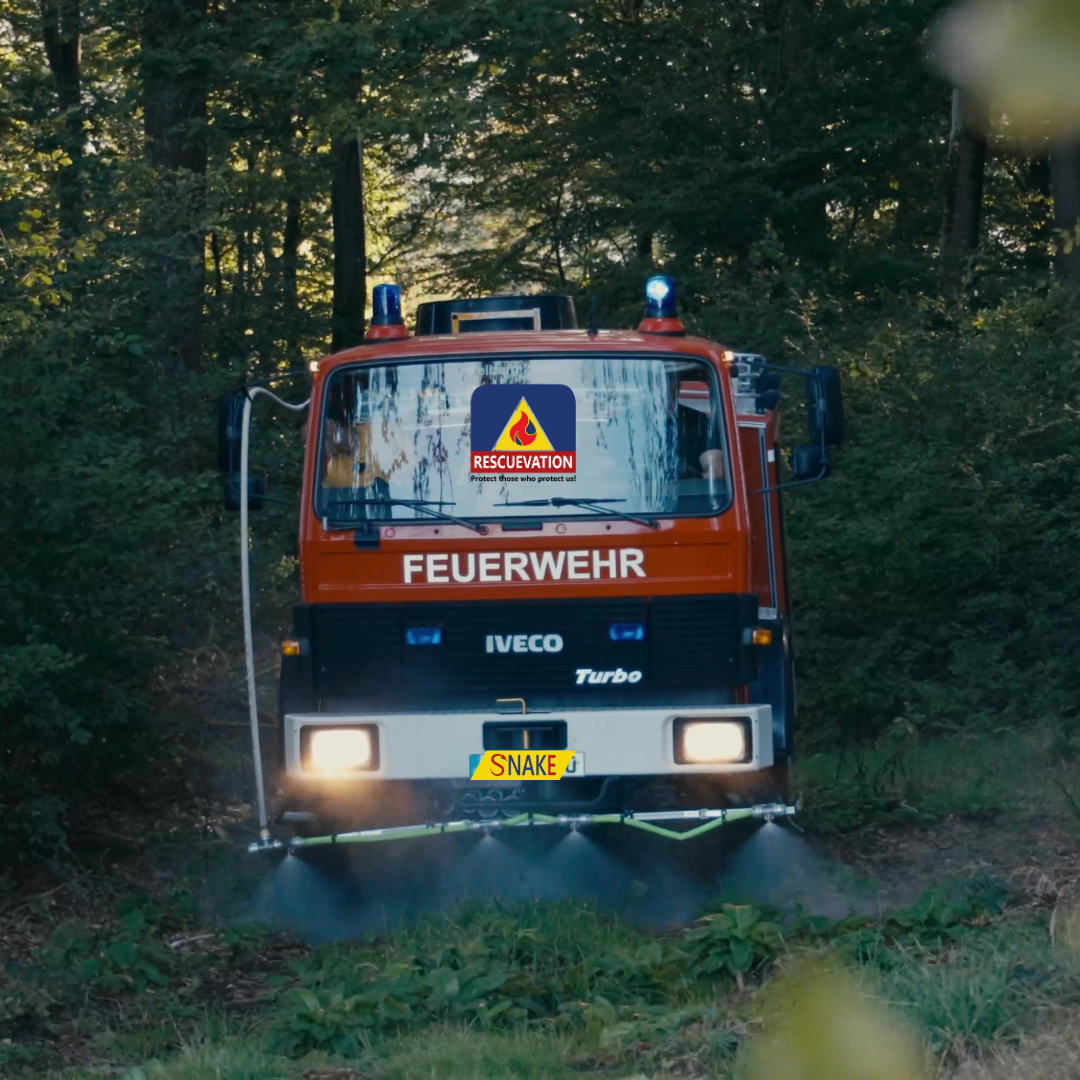

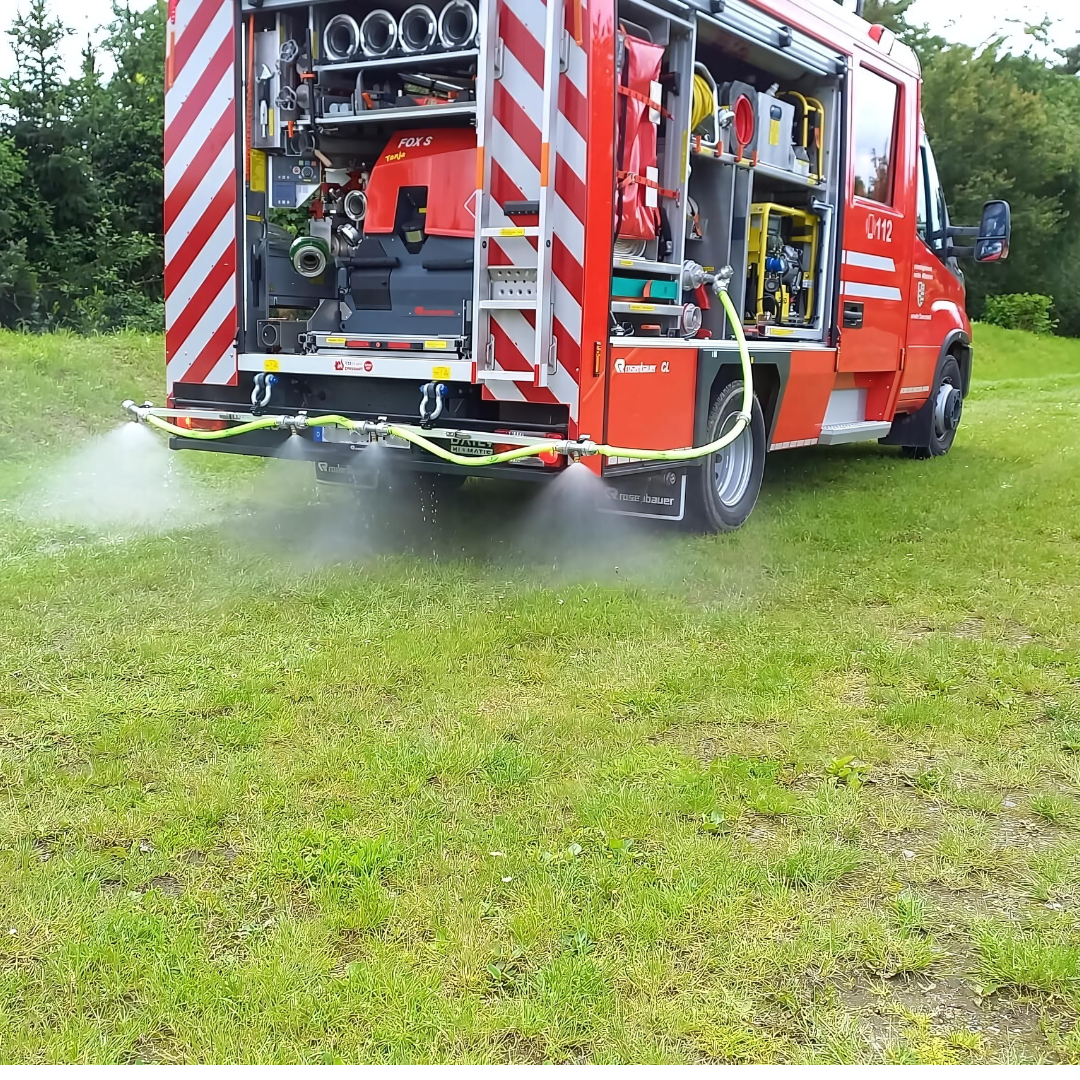

Deployment tipWhether TSF-W or TLF: the spray bar mounts at the front or rear, and upgrades any pump-and-roll-capable vehicle.
Wildfire season
Upgrade your pump-and-roll-capable vehicle
Purchase on account for municipalities, fire departments and emergency services, XRechnung included. We advise you personally, reply within 24 hours.
One system, many uses
The same nozzle modules upgrade your existing vehicle and cover further incidents between deployments, from smoke knockdown to radiator protection by binding dust.
Vegetation fireWet line & firebreakContain the spread, from the vehicle
Holding lineSprinkler on a treeStrapped to the tree, even on slopes →
E-mobilityEV underbody coolingSame modular system

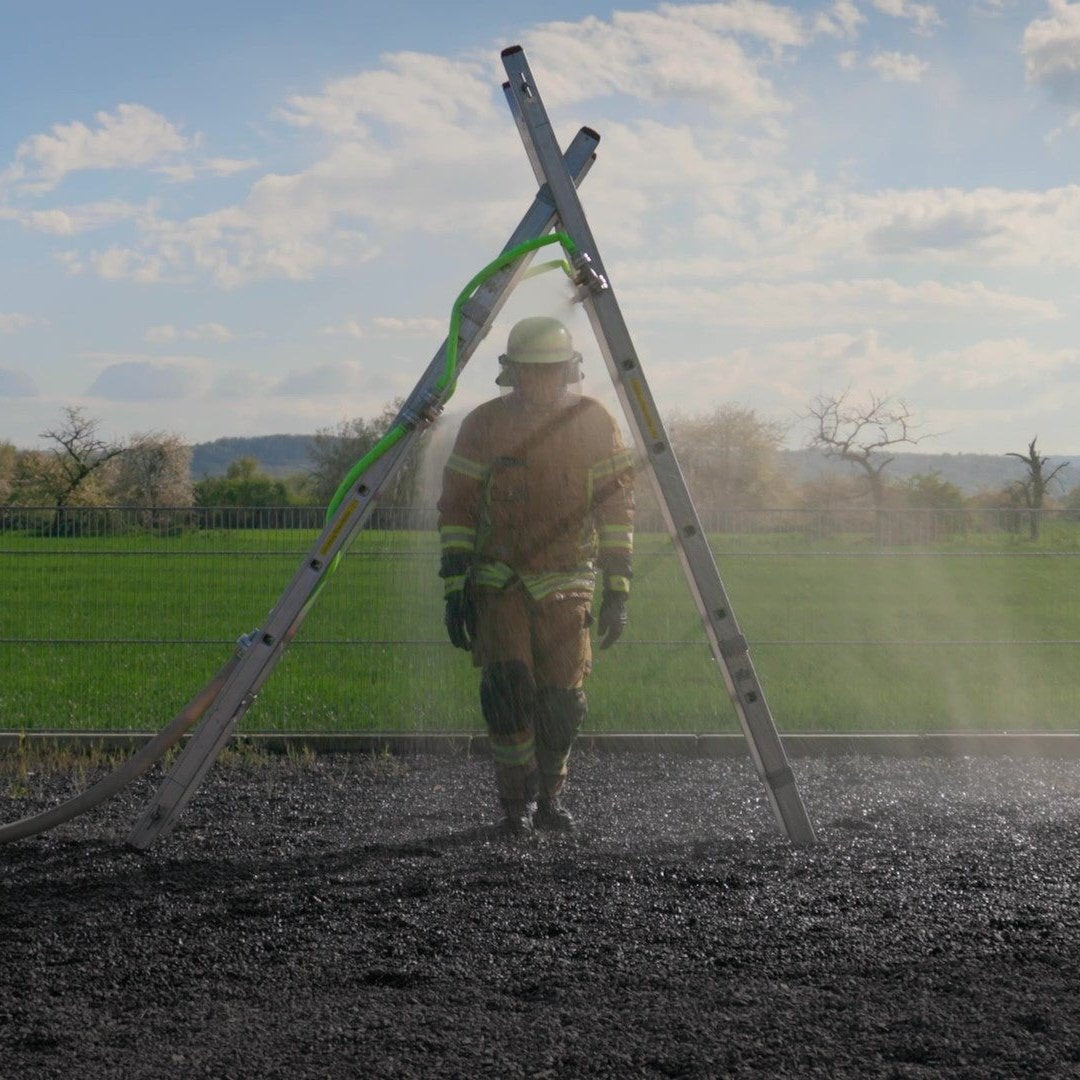

DeconEmergency deconCleaning from all directions

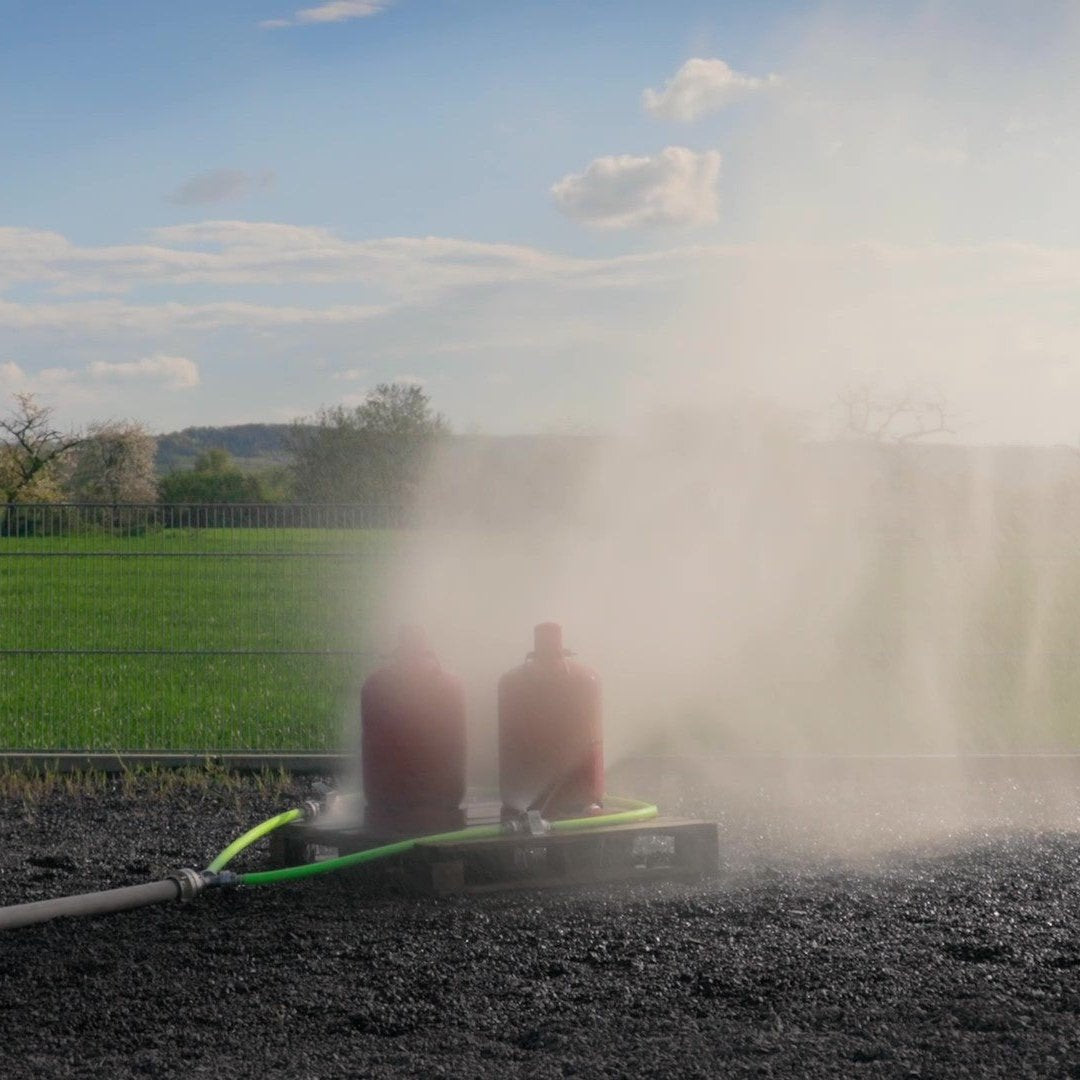

HazmatCylinder coolingRing main, no crew neededFor procurement
Technical data & documents
All key figures for your procurement documents: data sheets as PDF downloads.
| Spray bar width (folded) | 0.56 m |
|---|---|
| Spray bar width (unfolded) | 2.25 m |
| Total weight (complete set) | 6 kg |
| Supply line | Storz D coupling |
| Outlets | 2 × Storz D |
| Nozzle count | 4 pcs, brass |
| Flow per nozzle | approx. 20 l/min |
| Total flow rate | 72 l/min (3 bar) · 92 l/min (5 bar) |
| Max. working pressure | 16 bar |
| Spray width | 1,405 mm |
| Throw | 1,602 mm |
| Droplet size | 300 µm to 500 µm |
| Narrowest nozzle bore | 3.10 mm |
| Filter mesh size | 1.6 mm |
| Clamp material | Stainless steel 1.4404 (V4A) |
| Water supply | Storz D, wall hydrant compatible |
| Stowage | Euro box 60 × 40 × 19 cm |
Downloads
Voices from the field
A team used to have to walk alongside the vehicle with the nozzle in sweltering heat. Today the crew members stay in the vehicle, a driver and pump operator are enough. That takes a real load off our people.
Unfold it, hang it on the shackles, water on. At the first drill the bar was ready for action in under three minutes, with no tools and no manual in hand.
One Euro box, that's all the space the complete wildfire retrofit needs. We even had a free compartment for it on our TSF-W.
Secure what the wet line has gained
The same SnakE® modules, fitted with a rotary sprinkler nozzle: strapped to a tree, the rotary sprinkler holds your holding line, with up to 14 m throw at 4 bar and only approx. 24 l/min water consumption. The lightest rotary sprinkler system for tree mounting, even on slopes.
Your wet line, laid with retardant
You mix Retardant Euro-FC into the extinguishing water at typically 0.5-3%. The spray bar applies the mixed solution over a wide area in one pass, for wet lines and preventive protection, 100% biodegradable. Depending on the mixing rate, one 20 liter canister yields around 660 to 4,000 liters of solution.
Spray bar and sprinkler in one box
The SnakE® wildfire set adds four rotary sprinkler nozzles to this set ex works: lay the wet line and hold the line with one system.
- Drive:The spray bar lays the wet line while driving
- Secure:4 rotary sprinkler nozzles hold the line, strapped to a tree
- Stowed:All in one Euro box: every vehicle has room for that
