SnakE® Löschsystem
SnakE® Wildfire Spray Bar (No Nozzles)
Versand und Mehrwertsteuer werden beim Checkout berechnet.
VFDB Excellence Award 2025prämiert durch Feuerwehr-Fachjury
- SnakE®-Bestand vorhanden (ab SnakE 4 Basic): dieser Balken genügt – Deine Module klemmst Du einfach auf.
- Noch kein SnakE®-System: das Sprühbalken-Set – Komplett-Set mit Düsen und Zuleitung (€2.226,89).
- Gleich mit Kreisregnern: das Waldbrand-Set inkl. 4 Kreisregnerdüsen (€2.922,22).
Couldn't load pickup availability
Antwort innerhalb von 24 h · Direkter Draht: +49 1522 8790057
Für Kommunen, Freiwillige Feuerwehren und BOS-Einheiten. Angebot anfordern →
SnakE®: the retrofit spray bar for your existing SnakE® system
Retrofit your vehicle for wildfires, with the modules you already have

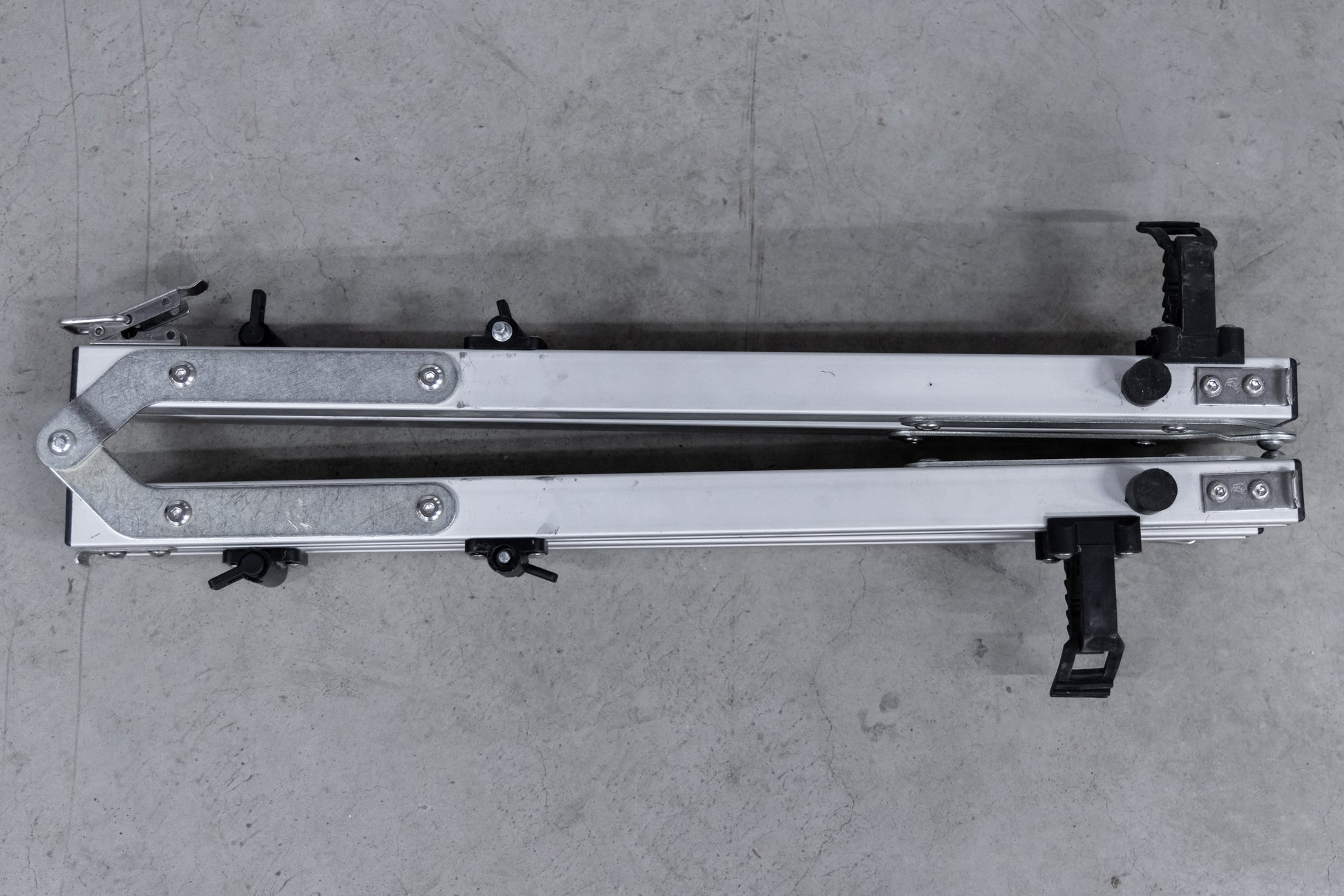

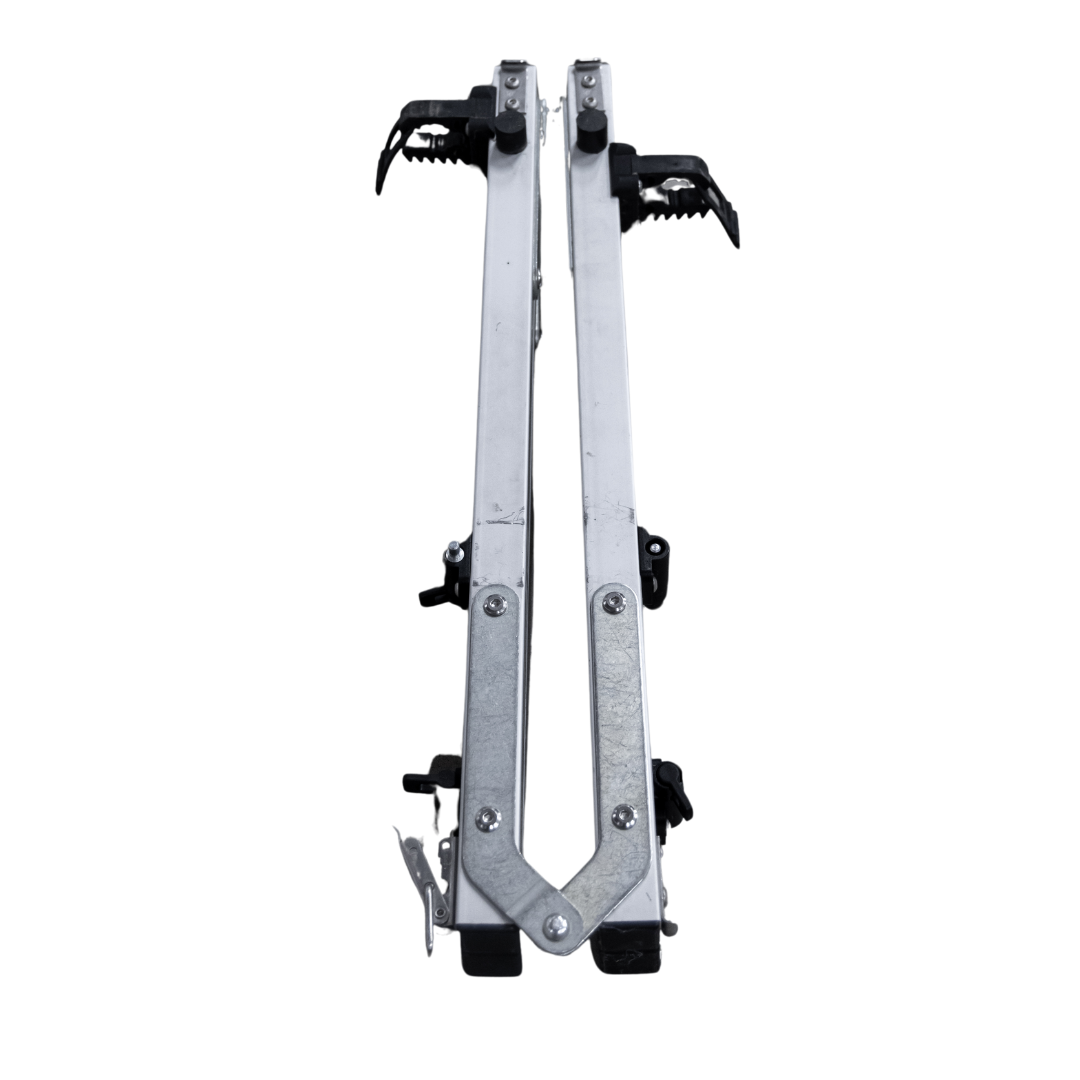

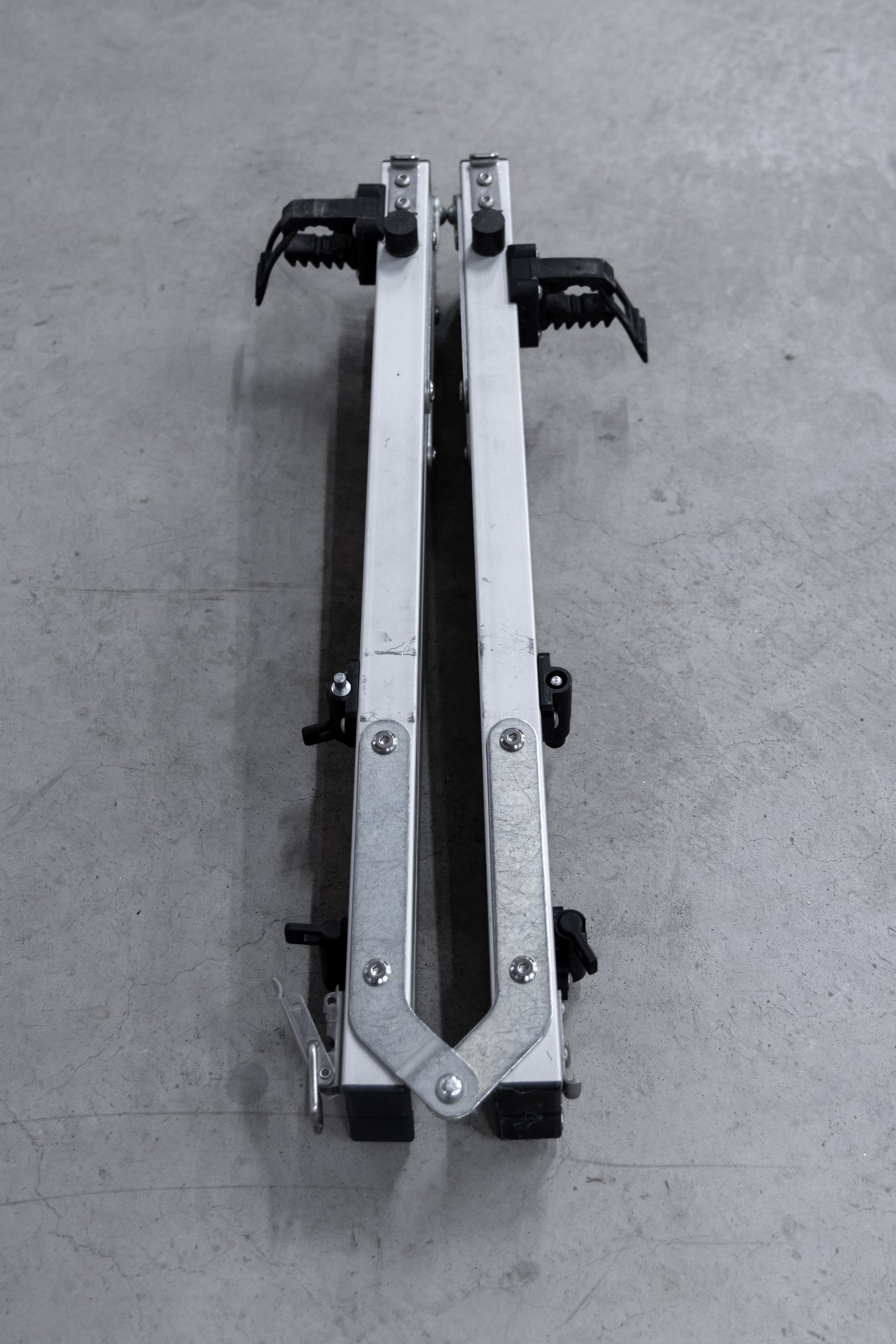

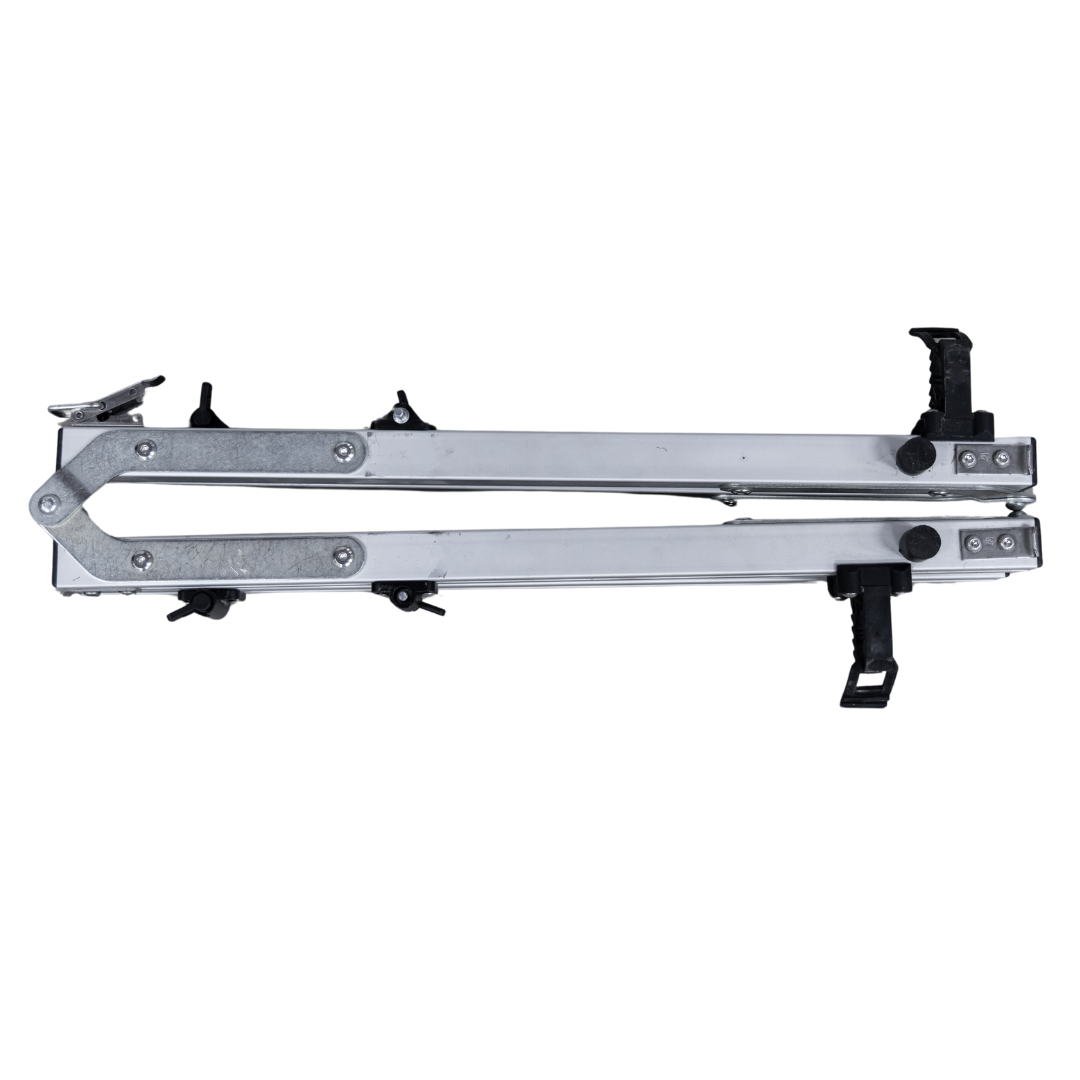

The folding wildfire spray bar turns your SnakE® system (from SnakE® 4 Basic) into a spray bar for vegetation firefighting: you simply clamp on your existing nozzle modules and secure them with the spring catches. Unfold it, adjust it once to the width of your shackles, hang it in tool-free: at the front or rear, from TSF-W to TLF. This is how you upgrade any pump-and-roll-capable vehicle.
✅ Tool-free on the DIN shackles: front or rear, adjusted once to shackle width, then ready for action
✅ For your existing SnakE® modules: clamp on, close the spring catches, done

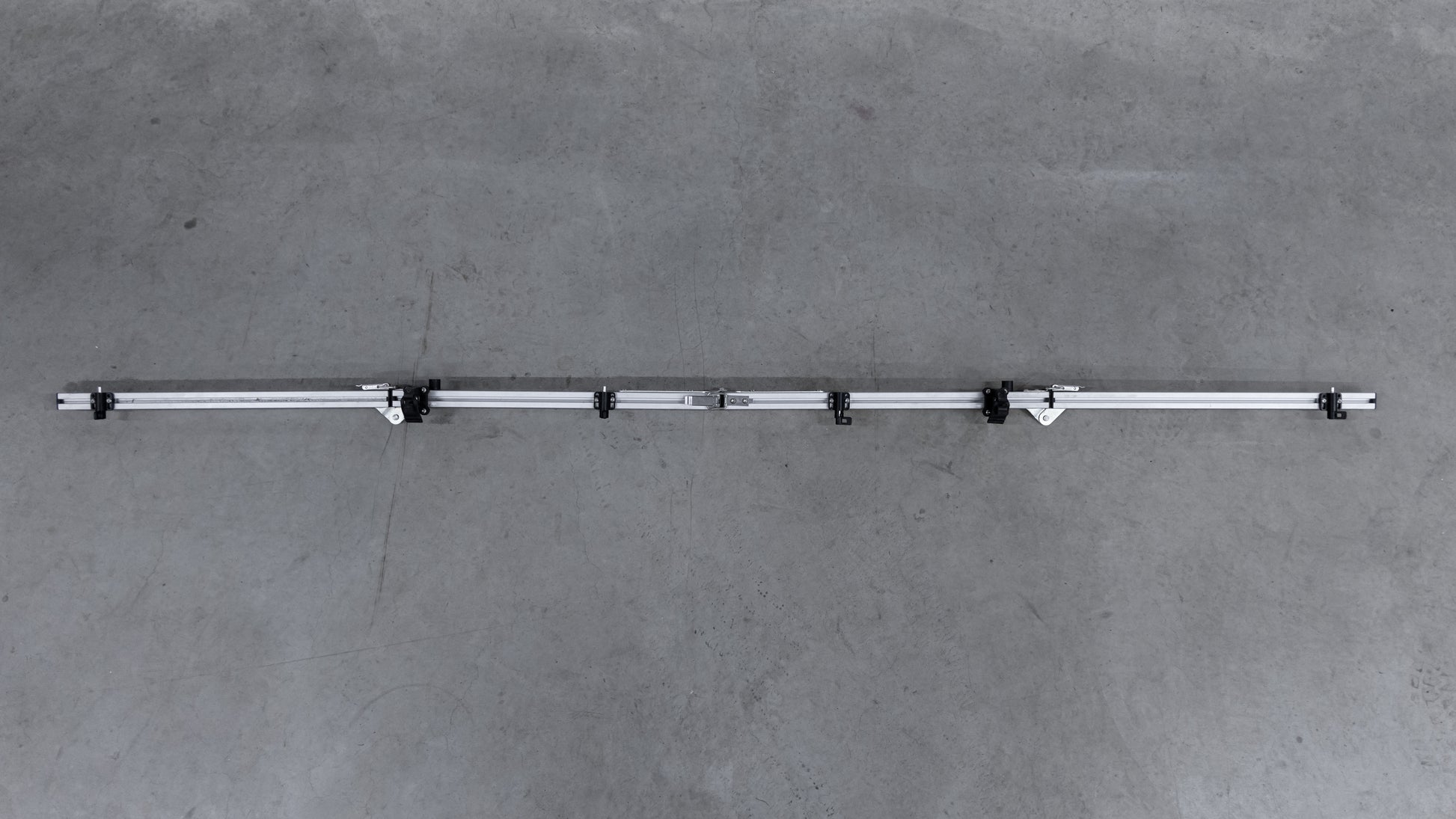

✅ 2.25 m spray width unfolded, folded 0.56 m
✅ Folds to Euro box size: every vehicle has room for that
✅ D hose system: combines with your existing equipment
In the box: the retrofit spray bar. Nozzle modules and supply line come from your existing SnakE® equipment (from SnakE® 4 Basic).
In the box
In the box
- Folding wildfire spray bar (retrofit bar)
The nozzle modules and supply line come from your existing SnakE® equipment: usable with SnakE® 4 Basic and above.
Why retrofit instead of buying new?
A spray bar retrofit for your existing pump-and-roll-capable vehicles: no waiting for the next vehicle procurement. The direct comparison:
| Kriterium | SnakE® spray bar | Conventional pump and roll | Built-in system |
|---|---|---|---|
| Retrofits existing vehicles | Ja. tool-free on DIN shackles | Ja. | Nein. only when buying new |
| Crew stays in the vehicle | Ja. | Nein. team walks alongside in PPE | Ja. |
| Low strain & accident risk | Ja. | Nein. heat, near the fire | Ja. |
| Setup time | under 3 minutes | instant, ties up a team in PPE | n/a (built in) |
| Acquisition cost | low | low | high |
| Multi-use (EV, rotary sprinkler, decon) | Ja. modular | Nein. | Nein. |
| Stowability | folds to Euro box size | n/a | fixed in place |
Setup
Operational in under 3 minutes
Five steps, no tools: from unpacking to driving off, with minimal personnel.
-
Clip modules on
Clamp the nozzle modules onto the folding bar and secure them with the spring catches.
-
Couple up
Couple the modules with pre-assembled D hoses for an optimal spray pattern.
-
Mount on the vehicle
Lock it tool-free onto the DIN shackles using the elastic mounts.
-
Connect the water
Central supply line via Storz D (25 mm): the doors always stay clear.
-
Drive off
Wet the firebreak and contain the spread, right from the vehicle.
Deployment tipWhether TSF-W or TLF: the spray bar mounts at the front or rear, and upgrades any pump-and-roll-capable vehicle.
Wildfire season
Upgrade your pump-and-roll-capable vehicle
Purchase on account for municipalities, fire departments and emergency services, XRechnung included. We advise you personally, reply within 24 hours.
One system, many uses
The same nozzle modules upgrade your existing vehicle and cover further incidents between deployments, from smoke knockdown to radiator protection by binding dust.
Vegetation fireWet line & firebreakContain the spread, from the vehicle
Holding lineSprinkler on a treeStrapped to the tree, even on slopes →
E-mobilityEV underbody coolingSame modular system
DeconEmergency deconCleaning from all directions
HazmatCylinder coolingRing main, no crew neededFor procurement
Technical data & documents
All key figures for your procurement documents: data sheets as PDF downloads.
| Spray bar width (folded) | 0.56 m |
|---|---|
| Spray bar width (unfolded) | 2.25 m |
| Vehicle mounting | tool-free on DIN shackles (elastic mounts) |
| Attachment | for SnakE® nozzle modules, secured with spring catches |
| Requirement | SnakE® system, SnakE® 4 Basic and above |
| Stowage | folds to Euro box size (60 × 40 × 19 cm) |
Downloads
Voices from the field
A team used to have to walk alongside the vehicle with the nozzle in sweltering heat. Today the crew members stay in the vehicle, a driver and pump operator are enough. That takes a real load off our people.
Unfold it, hang it on the shackles, water on. At the first drill the bar was ready for action in under three minutes, with no tools and no manual in hand.
One Euro box, that's all the space the complete wildfire retrofit needs. We even had a free compartment for it on our TSF-W.
Secure what the wet line has gained
The same SnakE® modules, fitted with a rotary sprinkler nozzle: strapped to a tree, the rotary sprinkler holds your holding line, with up to 14 m throw at 4 bar and only approx. 24 l/min water consumption. The lightest rotary sprinkler system for tree mounting, even on slopes.
Your wet line, laid with retardant
You mix Retardant Euro-FC into the extinguishing water at typically 0.5-3%. The spray bar applies the mixed solution over a wide area in one pass, for wet lines and preventive protection, 100% biodegradable. Depending on the mixing rate, one 20 liter canister yields around 660 to 4,000 liters of solution.
As seen in
Procurement & advice
Questions? We know the fireground
Whether TSF-W or TLF, a single set or equipping several vehicles: we size the system together with you.
Procurement & advice
Request a quote
Purchase on account for municipalities, fire departments and emergency services, XRechnung included. Reply within 24 hours.
