Rescuevation: As seen in the trade press

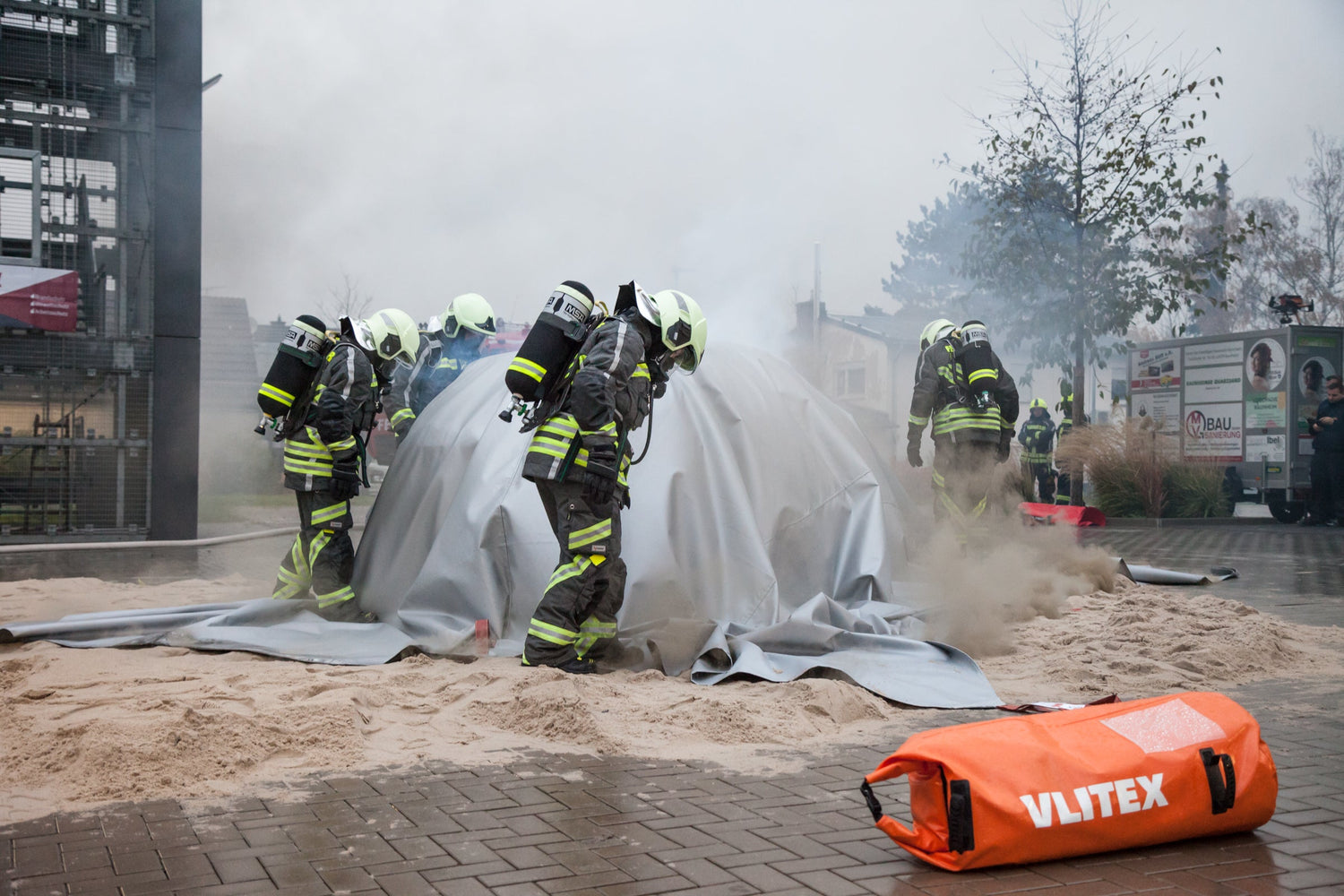

VLITEX forklift fire blanket
The VLITEX forklift fire blanket is the optimal solution for use in lithium-ion battery fires. Made from high-temperature-resistant special glass fiber fabric.
Material: VLITEX PREMIUM: Special glass fiber fabric with silicone coating, resistant to acids and chemicals
Seams: Fire-resistant sewing thread
Fastening strap & handle: Special glass fiber fabric with silicone coating on both sides
Temperature resistance: Up to 1,000 °C, short-term up to 1,750 °C
Reusability: Multiple uses, depending on the fire load. CAUTION: Fire residues on the blanket are toxic!
Maintenance: No maintenance required, the material is weatherproof and does not corrode
Sizes & weight: 6 x 8 m, approx. 31 kg / 8 x 10 m, approx. 52 kg / Other sizes on request.
Suitability: Developed for battery fires. Also suitable for conventional fires.
Recommended: As a preventive measure or for fire departments or organizations that fight fires regularly.
The VLITEX fire containment blanket for electric forklifts meets the test requirements of DIN SPEC 91489.
E-scooter fire containment blanket
The VLITEX fire containment blanket for e-scooters is the ideal solution for safely handling lithium-ion battery fires. It is made of high-temperature-resistant glass fiber fabric with silicone coating on both sides.
Material: Glass fiber fabric with silicone coating on both sides, resistant to acids and chemicals
Seams: Fire-resistant sewing thread
Fastening strap & handle: Glass fiber fabric with silicone coating on both sides
Temperature resistance: Continuously up to 1,000 °C, short-term above 1,750 °C
Reusability: Multiple uses, depending on the fire load. CAUTION: Fire residues on the blanket are toxic!
Maintenance: No maintenance required, the material is weatherproof and corrosion-resistant
Sizes & weight: 2.5 x 3 m, approx. 4.1 kg
Suitability: Developed specifically for e-scooter battery fires.
Recommended: For prevention or for use by fire departments and organizations that fight fires regularly.
The VLITEX fire containment blanket for e-scooters meets the test requirements of DIN SPEC 91489.
The fire blanket meets the highest requirements in fire protection and temperature control
Quality-tested fire containment blanket
The VLITEX fire containment blanket E-AUTO was tested by ACTS (Advanced Car Technology Systems GmbH), the leading competence center for vehicle safety in the Magna Steyr group, for its suitability for battery fires. The result confirms: the fire blanket meets the highest requirements in fire protection and temperature control.
Successful tests in the ACTS laboratory
In the ACTS laboratory, the VLITEX fire blanket underwent a comprehensive test using state-of-the-art measurement methods. The test showed the blanket is extremely effective as a heat shield. It keeps temperatures around the burning modules below 200 °C, which allows a controlled burn-out: flooding the modules is therefore unnecessary.
In addition, the blanket reliably contains smoke and gases, which not only protects the surroundings but also lets the fire blanket act as a smoke trap. This makes it a reliable product for use in battery fires.
VLITEX
Certified safety
The VLITEX fire containment blanket E-AUTO exceeded all expectations and is officially certified as an effective tool for fire control.
- Temperature control: Ambient temperatures stay below 200 °C.
- Smoke reduction: Reduces emissions and protects the surroundings.
- Heat shield: Enables a safe, controlled burn-out.
The DIN SPEC 91489 certificate can be provided on request.
Fire containment blankets are used where extinguishing by oxygen deprivation is not possible
Fire blanket or fire containment blanket
A note on terminology:
Fire blankets are used to smother a fire through oxygen deprivation. They are mainly suitable for conventional fires. The blanket is placed over the burning object and extinguishes the fire by cutting off the air supply.
Fire containment blankets are used where extinguishing by oxygen deprivation is not possible, for example with lithium-ion battery fires. Such fires cannot be smothered by oxygen deprivation. The fire containment blanket therefore has a different goal: it contains the fire, holds back flames and smoke and protects the surroundings from heat and flying debris.
In summary:
Fire blanket: extinguishes the fire through oxygen deprivation
Fire containment blanket: contains battery fires when extinguishing is not possible
Since everyday language does not (yet) distinguish between the two terms, we use both terms as well.
Available sizes
| Variante | Maße | Fläche | Gewicht | Art.-Nr. |
|---|---|---|---|---|
| PREMIUM 1,5 × 1,5 | 1,5 × 1,5 m | 2,25 m² | 1,2 kg | 200373 |
| PREMIUM 2,5 × 3 | 2,5 × 3 m | 7,5 m² | 4,1 kg | 200240 |
| PREMIUM 3 × 4 | 3 × 4 m | 12 m² | 6,6 kg | 200241 |
| PREMIUM 5 × 6 | 5 × 5,8 m | 29 m² | 18 kg | 200144 |
| PREMIUM 6 × 8 | 6 × 8 m | 48 m² | 30 kg | 200102 |
| PREMIUM 6 × 8 mit 2 langen Griffen | 6 × 8 m | 48 m² | 31 kg | 200104 |
| PREMIUM 6 × 8 mit Ösen | 6 × 8 m | 48 m² | 31 kg | 200158 |
| PREMIUM 7 × 8 | 7 × 8 m | 56 m² | 34,5 kg | 200105 |
| PREMIUM 7 × 8 mit 2 langen Griffen | 7 × 8 m | 56 m² | 35,6 kg | 200106 |
| PREMIUM 8 × 10 | 8 × 10 m | 80 m² | 52 kg | 200110 |
FAQs
The fire containment blanket is placed over the burning vehicle and limits the oxygen supply, which contains the fire.
The blanket is suitable for electric vehicles, hybrid vehicles and conventional vehicles.
The blanket is heat-resistant up to 1,600 °C and can withstand a fire for several hours.
Yes, after thorough cleaning and inspection, the blanket can be used multiple times.
The blanket should be stored dry and protected from direct sunlight, ideally in the supplied transport bag.
The blanket is available in various sizes to cover different vehicle types.
The weight varies by size but is typically between 15 and 25 kg.
Instruction is recommended to ensure correct handling and maximum safety.
